ViCANdo
Product Code: vicando-basic
ADAS system for network and video analysis
ViCANdo is an easy to use ADAS systems test and simulation environment that includes Ethernet, FlexRay, CAN, LIN, MOST as communication busses, as well as Video and sound analysis built for daily use for the test engineers demanding environment. ViCANdo also easily integrates to measure other physical data as temperature, voltage, current and so forth. From the first day of development or Hardware, Software and Algorithms ViCANdo supports the various steps in the development process with appropriate and comprehensive coverage of the user scenarios. ViCANdo also allows connection of biosensors, such as pupil control, face and heart rate monitoring, to be able to follow the behavior and condition of the driver.
As ViCANdo has an open SDK it allows the creation of custom interfaces and sources, but also enables the use of the Algorithms under development as a high performance part of ViCANdo itself, executed with very high performance.
Compiled apps – Internet of Things and Rapid Development (RAD)
Following the latest release in ViCANdo 2.0 it is currently possible to build your own apps for network connected functionalities in ViCANdo
The project is developed, designed and debugged in ViCANdo and compiled for the various targets.
Currently supported is Windows 7-10, Android 4.1 and later, Linux/Ubuntu.
Targeted use cases are:
- Development of embedded display units for automotive and machines with displays and networks
- After market applications for diagnostics and reflash of ECU´s
- Work shop applications
- Node simulation
- System Simulation
- Test applications
Simulation
By making a video recording of a tentative test run, the video recording can work as a reference while taking the first steps in developing the algorithms to detect other vehicles, pedestrians or lanes. The missing parts of the network can also be simulated by using ViCANdo´s internal virtual Busses, minimizing the hardware hassle and investment in the early phases. Whilst the project becomes more mature, real hardware can be added as when judged appropriate. Either COST hardware or your own project hardware as an added “source” to ViCANdo´s out of the box COTS hardware libraries. Sensor signals are also easy to simulate on ViCANdo´s built in virtual bus.
Tuning and verification

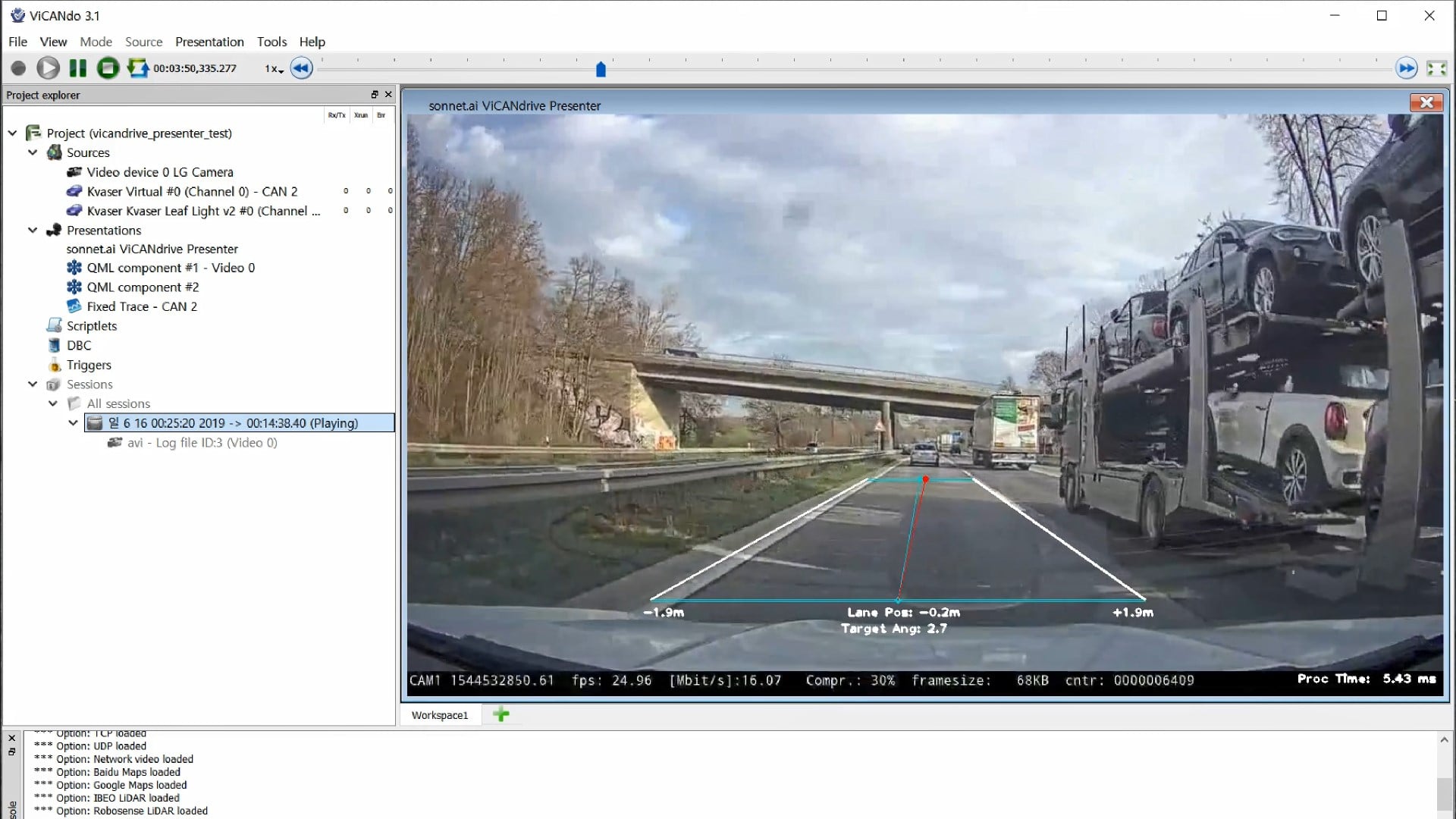

When having the first prototype systems 100ds of parameters might influence the outcome. As ViCANdo has built in Algorithms for vehicle and lane detection, ViCANdo can compare the first outcomes by adding the output signals from a prototype ECU to an overlay in the Video window and compare the computed sensor data in real time, using an ordinary web cam. It is also possible to calibrate a camera for ViCANdo to be able to measure distances to objects down to centimeter precision.
Analysis

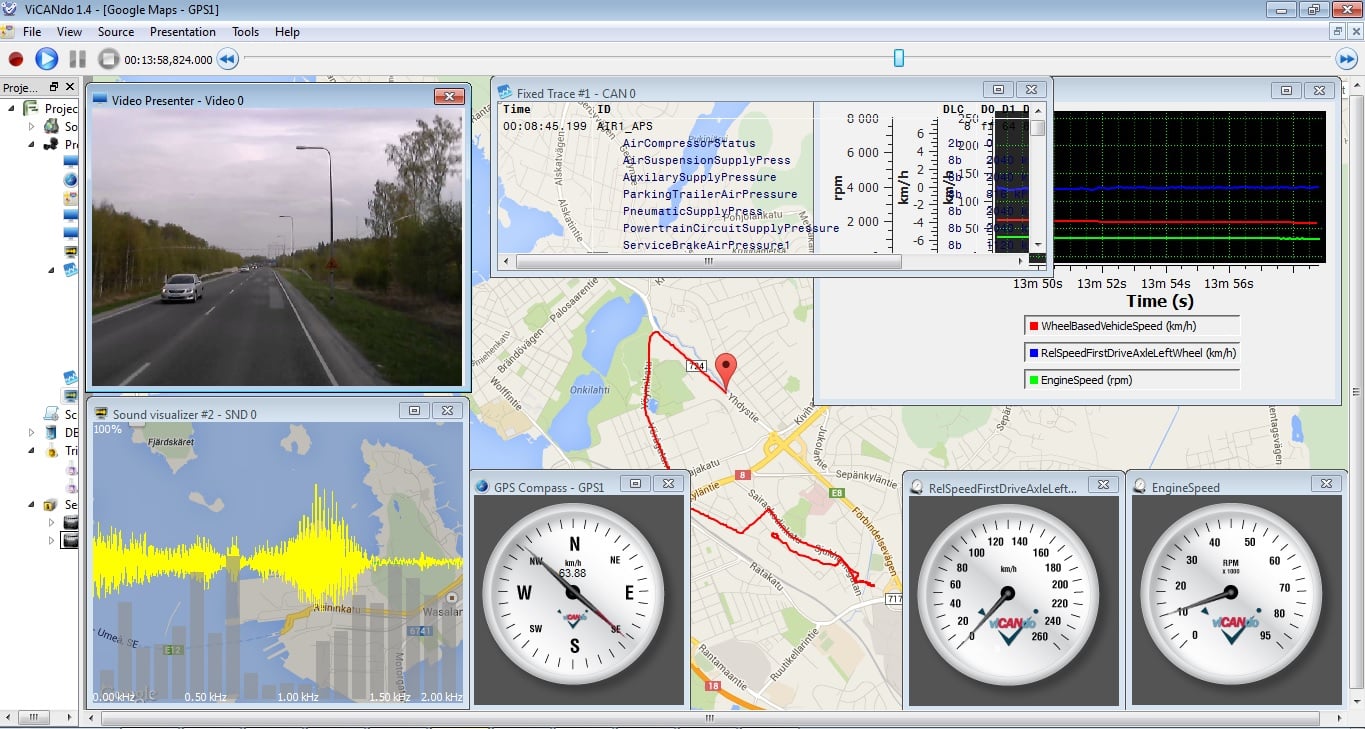

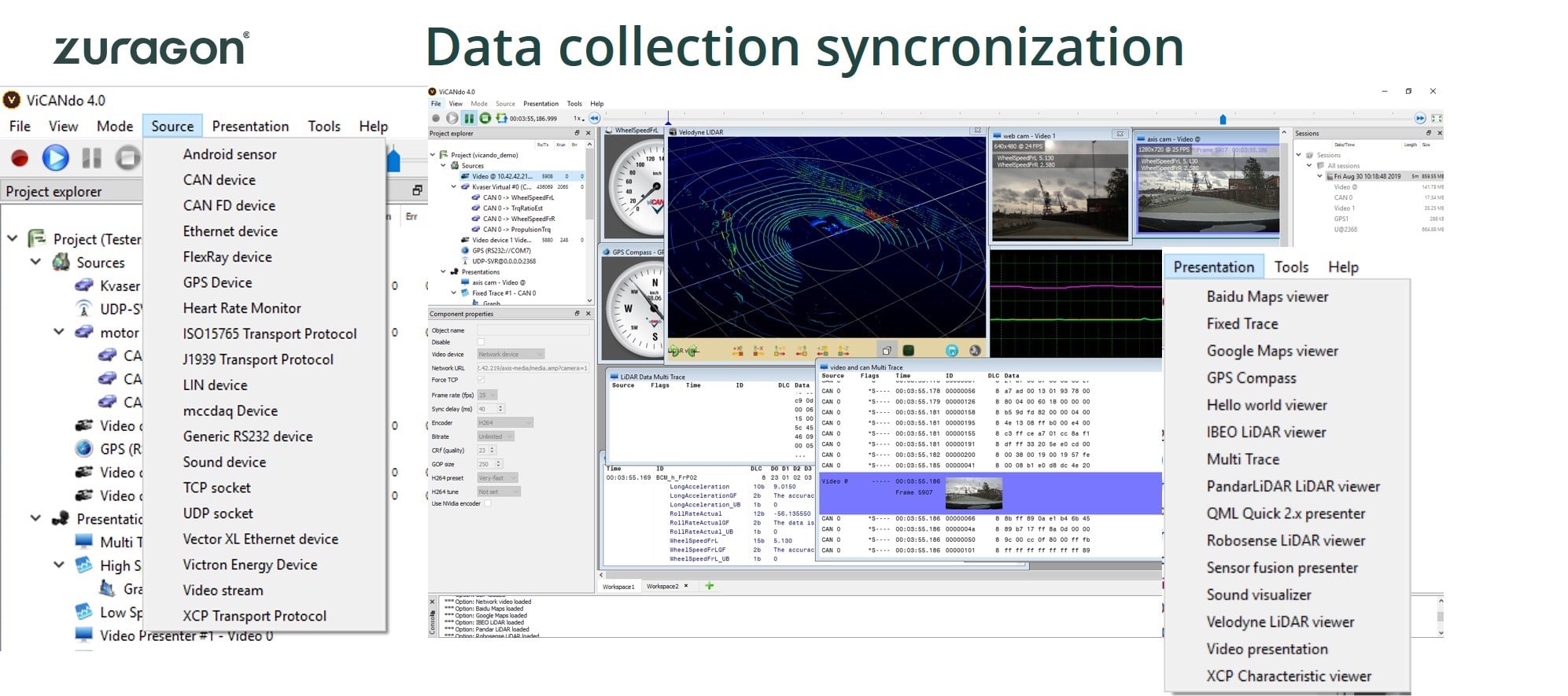

ViCANdo is very intuitive and contains what you can expect from a professional analysis product. Various windows can be set up in an easy to overview the measurement set up. Each channel can be configured individually and assigned to an appropriate window or combined at will in one window only. Log files can be replayed and analyzed in viCANdo or other state of the art tools in off line or on line mode. Book marks, trigger and filters are easily added from the default libraries using databases to decode bus traffic when appropriate. As position and sound are recorded simultaneously it also enables features like voice logs and possibility to trace to certain positions in a measurement. ViCANdo has a very powerful built in post analysis engine searching even big log files (>10GB) in seconds. If that is not enough the built in scripting language enables to narrow the search criteria even further.
Fleet testing
ViCANdo´s extension ViCANdroid allows a multiplication of number of test points to i.e. fleets, to a reduced cost. ViCANdroid integrates with ViCANdo for triggers, scripts, events and log files, enabling a set up and debug of the project in a PC environment, later on empowering a Android unit to execute the measurement in the vehicle. ViCANdroid also has a server connection that enables immediate transmission of log files to server for analysis of the log files.
Applications
- Active Safety System (ADAS) development and testing
- Multimedia Analysis and testing
- Network anaysis and testing
- Fleet test of development fleets. Especially powerful when looking for rarely occurring errors.
- Diagnostics services development and testing
- Restbus Simulation
- Stimulation of fault cases
- Advanced data mining in BIG data files
Advantages
- ViCANdo uses COTS hardware as well as real ECU project hardware
- Easy to use for daily tasks and designed to enhance efficiency
- All Sources in one tool/one log file/one place for post analysis
- Enhance existing equipment and reduce equipment costs for production solutions
- Control the driving conditions and scenario in detail
- Enables possibilities to multiply the test sessions
- Enables to run test of different sensors configuration easily
- Enables to try out algorithms for dangerous situations in desk top environment
- Enables possibility to run algorithms as binaries. Protecting your IPR
- Extendable and powerful API´s and SDK´s giving full power for edge development
Video presenting ViCANdo
Zuragon ViCANdo session with three cameras and GPS as well as CAN-bus.
Zuragon ViCANdo session with data and camera
