Rebel LT
Product Code: INF2101 P

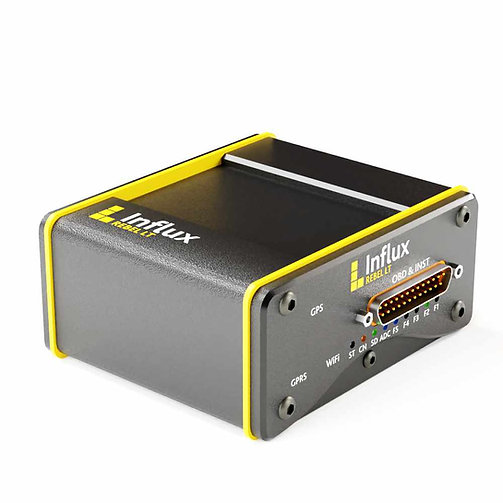

Rebel LT is a state-of-the-art data logger supplied with DiaLog software. Rebel LT an easy-to-use data analysis tool.
Rebel LT comes equipped with advanced automotive protocols, intelligent power management, and high-level performance that’s typically found in much more expensive data loggers. Designed with precision and user-friendliness in mind, it empowers engineers, researchers and developers.
Rebel LT data logger is fully capable of recording standard OBD-II live data. Influx Technology’s Dialog software provides pre-configured options for commonly used OBD PIDs (parameter IDs), streamlining the configuration process for efficient data acquisition.
Effortless Data Acquisition and Analysis

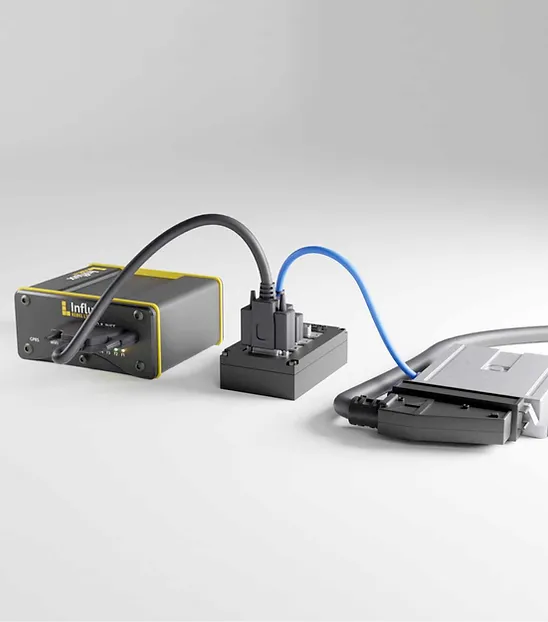

- Synchronized CAN Bus Data: Capture data from two CAN buses simultaneously, providing a complete picture of your vehicle’s interconnected systems.
- Comprehensive File Support: Utilize industry-standard file formats such as A2L, ODX, and DBC, ensuring compatibility and ease of integration with your existing tools and workflows.
- Robust J1939 Support: Benefit from full J1939 protocol integration, including DM1 and BAM messages, for unparalleled insights into heavy-duty vehicles health and status.
- Digital and Analog Inputs: Gather additional data from sensors and devices with built-in digital and analog input channels.
- Intelligent Event Triggers: Automate data collection based on specific events, ensuring you never miss critical information.
- Industry-Standard File Formats: Export your data in formats like MDF, MDF4, BLF, and MAT for seamless integration with your existing analysis tools.
- Advanced Graphical Oscilloscope: Gain deeper insights with clear visualizations of your data, accelerating your vehicle R&D and development.
- Isolation: The USB port is electrically isolated, protecting your equipment and data.
- Gateway: Move signals from one CAN bus to another whilst data logging.
The Rebel LT empowers you to go beyond simply collecting data, it unlocks a new level of understanding.
Power Down and Sleep Modes
Save your vehicle’s battery with power-down and sleep-mode options if there are no CAN data and/or UDS messages. Avoid draining the vehicle battery when not using the Rebel LT data loggers.
Powered with multiple modes:
- Sleep mode
- Power down standby mode
- Wake up on CAN
Package includes
- Rebel LT Data logger
- 12 months SLA
- DiaLog Configurator
- Module Analyser Lite
- USB cable
- x2 CAN Breakout cable
- Preformatted 32G Byte SDHC card 80mb/s (higher capacity available)
Highlights
The Rebel LT is more than just a data logger, it’s your gateway to understanding your vehicle’s true potential. This powerful tool equips engineers, researchers, and developers to gain deeper insights into their vehicles’ inner workings.
Advanced Diagnostics with UDS and XCP:
Go beyond the basics: Unlike standard OBD tools, Rebel LT offers advanced capabilities for in-depth diagnostics and control through UDS (Unified Diagnostic Service) and *XCP (Universal Measurement and Calibration Protocol).
Direct communication with key components: Access data directly from the source, including the Battery Management System (BMS), Electric Motor Controller, and DC-DC Converter, providing valuable insights into their health and performance.
Optimize and refine: Leverage UDS and *XCP to calibrate ECUs, troubleshoot complex issues, and optimize your vehicle’s behavior for improved performance and efficiency.
XCP
(Requires DiaLog Plus Software)
The Rebel LT with the DiaLog Plus Software empowers you to unlock the full potential of XCP (Universal Calibration Protocol) and CCP (CAN Calibration Protocol) for advanced vehicle diagnostics, calibration, and development.
This powerful combination offers a comprehensive suite of features to streamline your workflow and gain deeper insights into your vehicle’s performance:
Diagnostic Support: UDS
Enhance your data acquisition, diagnostic capabilities, and compatibility with various vehicle systems using Rebel LT data loggers with advanced functionality (UDS) support.
Gather comprehensive and actionable information for accurate vehicle diagnostics and troubleshooting.
Influx Technology’s Vehicles Insight Program
Uncover the hidden insights of vehicle data with Rebel LT’s powerful capabilities. This innovative tool extracts essential UDS responses from various controllers on the CAN network, providing a comprehensive set of UDS PIDs with accurate conversions. These PIDs are organized into an ODX file, the industry standard for storing PID data.
With the Rebel LT’s vehicle and Influx Technology’s insights program, you can configure your Rebel LT datalogger to capture these critical PIDs, transforming your vehicle into a wealth of actionable information. The Rebel LT’s capabilities empower you to gain a competitive edge in today’s automotive landscape.
DiaLog Software
Live Data
Gain real-time insights into your connected inputs
The Rebel LT, when paired with the DiaLog Software, let’s you effortlessly monitor live data streams from all the inputs, allowing you to spot patterns and irregularities in real-time.
Harness the precision of triggers to capture specific data events, ensuring you capture the critical moments that hold the key to optimization. With this dynamic duo, you can make data-driven decisions that elevate your data analysis to new heights.
UDS Configuration
Revolutionize your vehicle diagnostics with the Rebel LT, enabling you to seamlessly log live data from ECUs using UDS protocols.
The logger automatically detects complex multi-messaging and transforms the values into clear, readable formats, eliminating the need for complex DBC files. By using the import feature for ODX files, there is no need for manual CAN message definitions commonly used by other CAN data logging solutions.
This comprehensive UDS configuration also empowers you to harness the power of fast-dac mode, ensuring you capture essential diagnostic data with unmatched efficiency.
Post analytics oscilloscope
Push your analyzing capabilities to the next level
Enhance your data analysis capabilities with the Rebel LT and Dialog’s powerful post-analysis oscilloscope, which empowers you to visualize and analyze captured data with unparalleled precision.
Seamlessly view all triggers, effortlessly overlay signals in graphical form, or observe them as a single graph to identify real-time trends and patterns.
Utilize the oscilloscope’s advanced features to perform calculations on signals and display the results directly on the graph, unlocking deeper insights into your captured data.
With Rebel LT and DiaLog’s post-analysis oscilloscope, you can make informed decisions and optimize your data analytics with unparalleled accuracy.
