Compact, multi-channel USB to CAN interface supporting both Classic CAN and CAN FD with high performance and precision

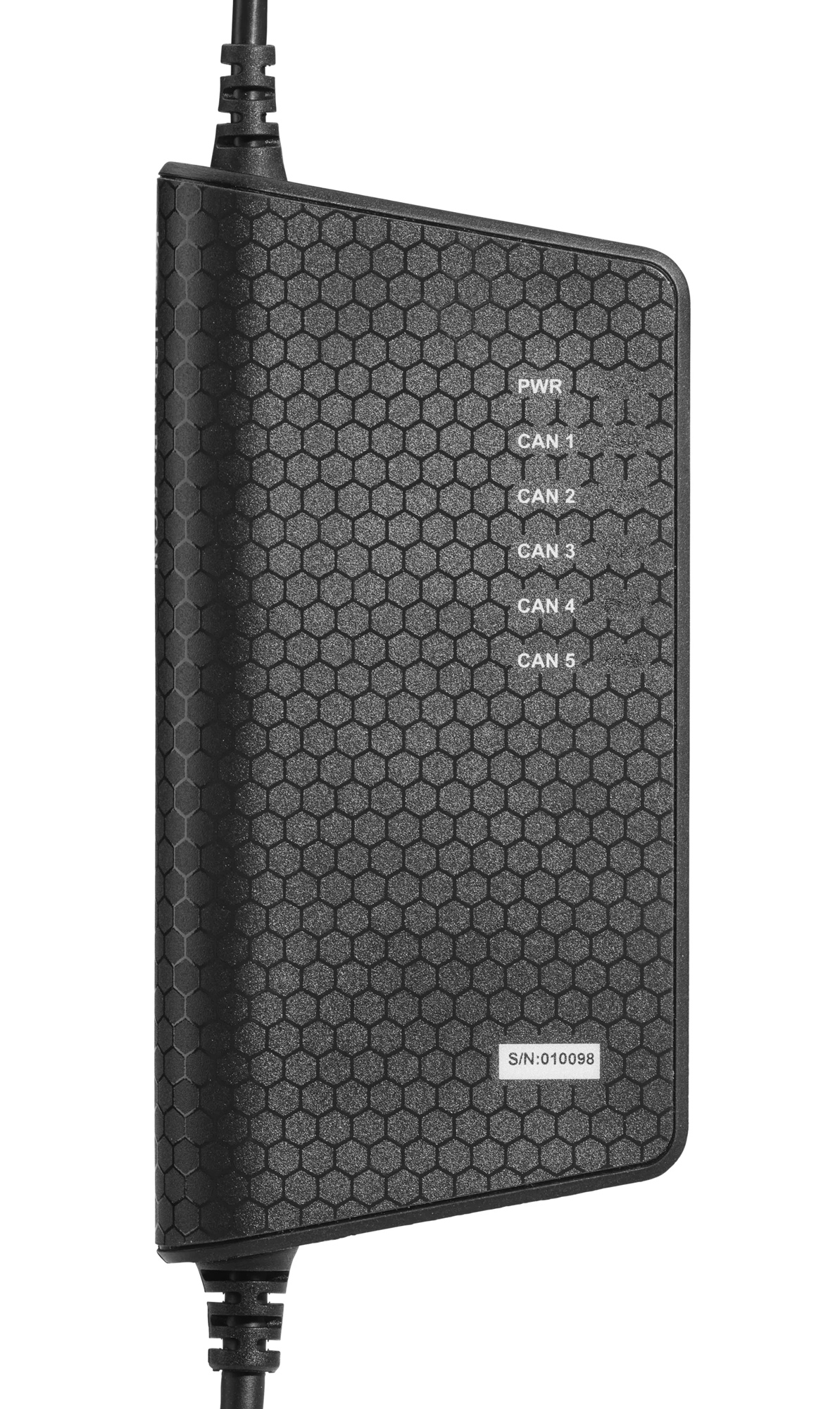

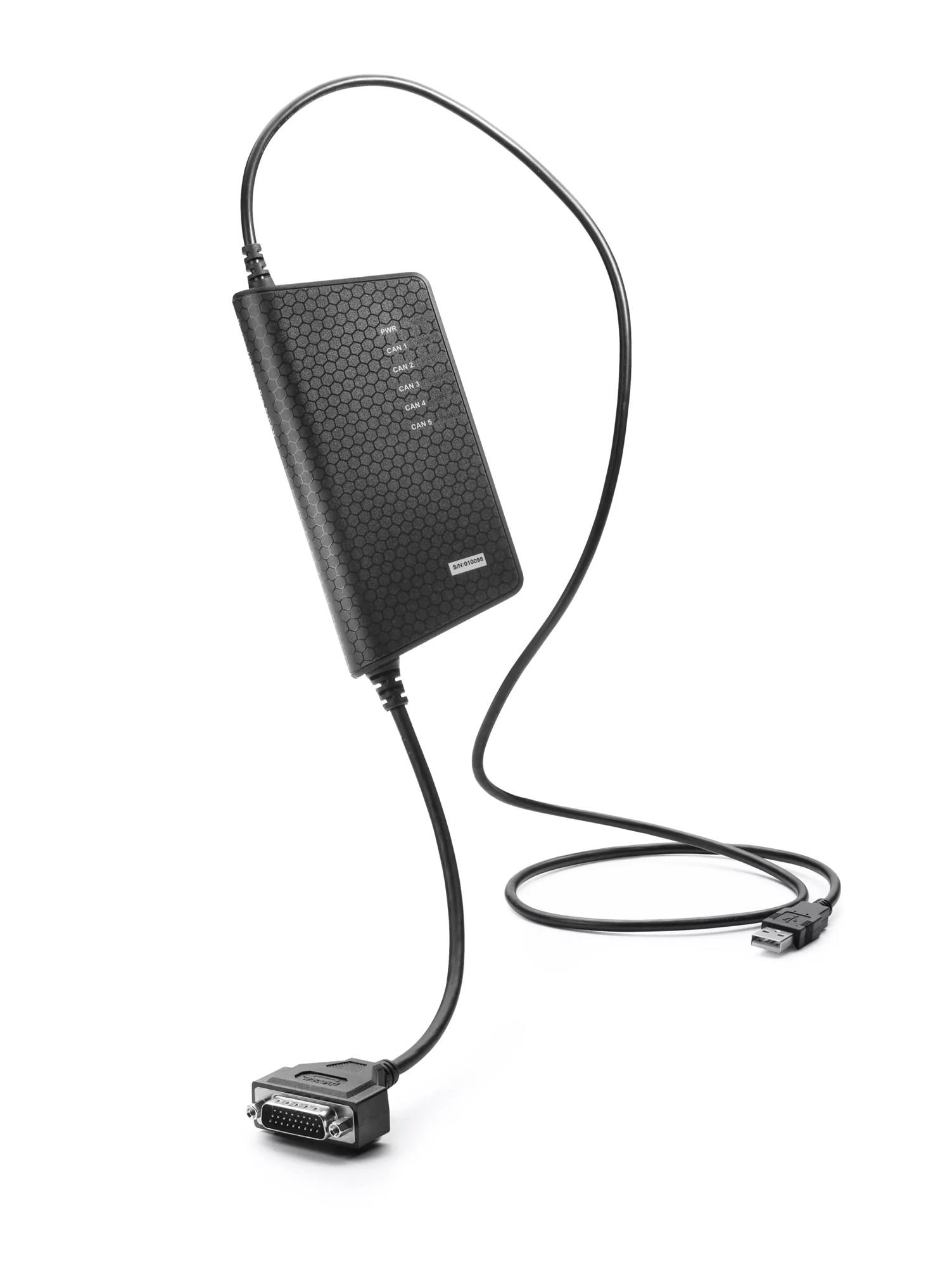

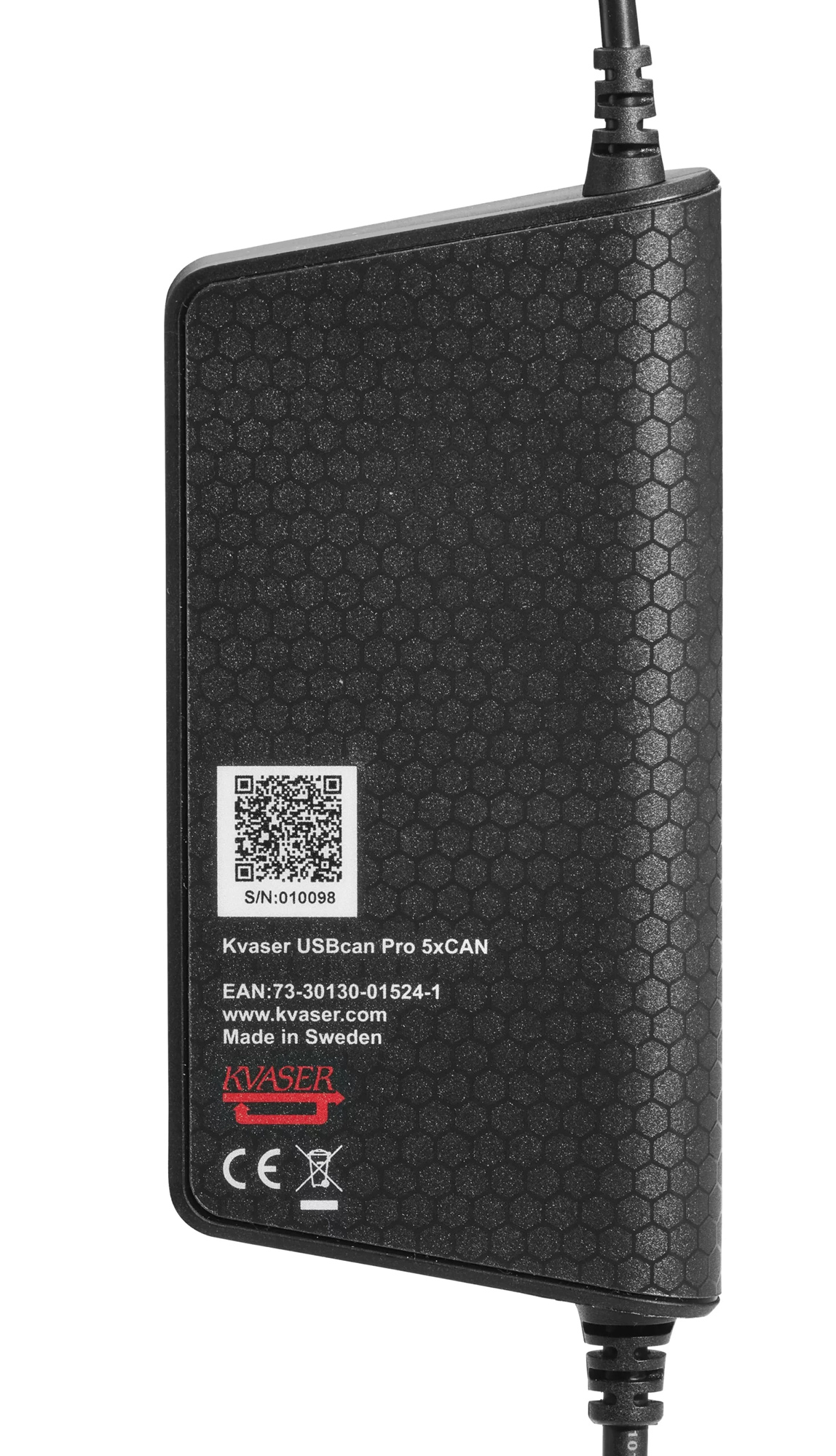

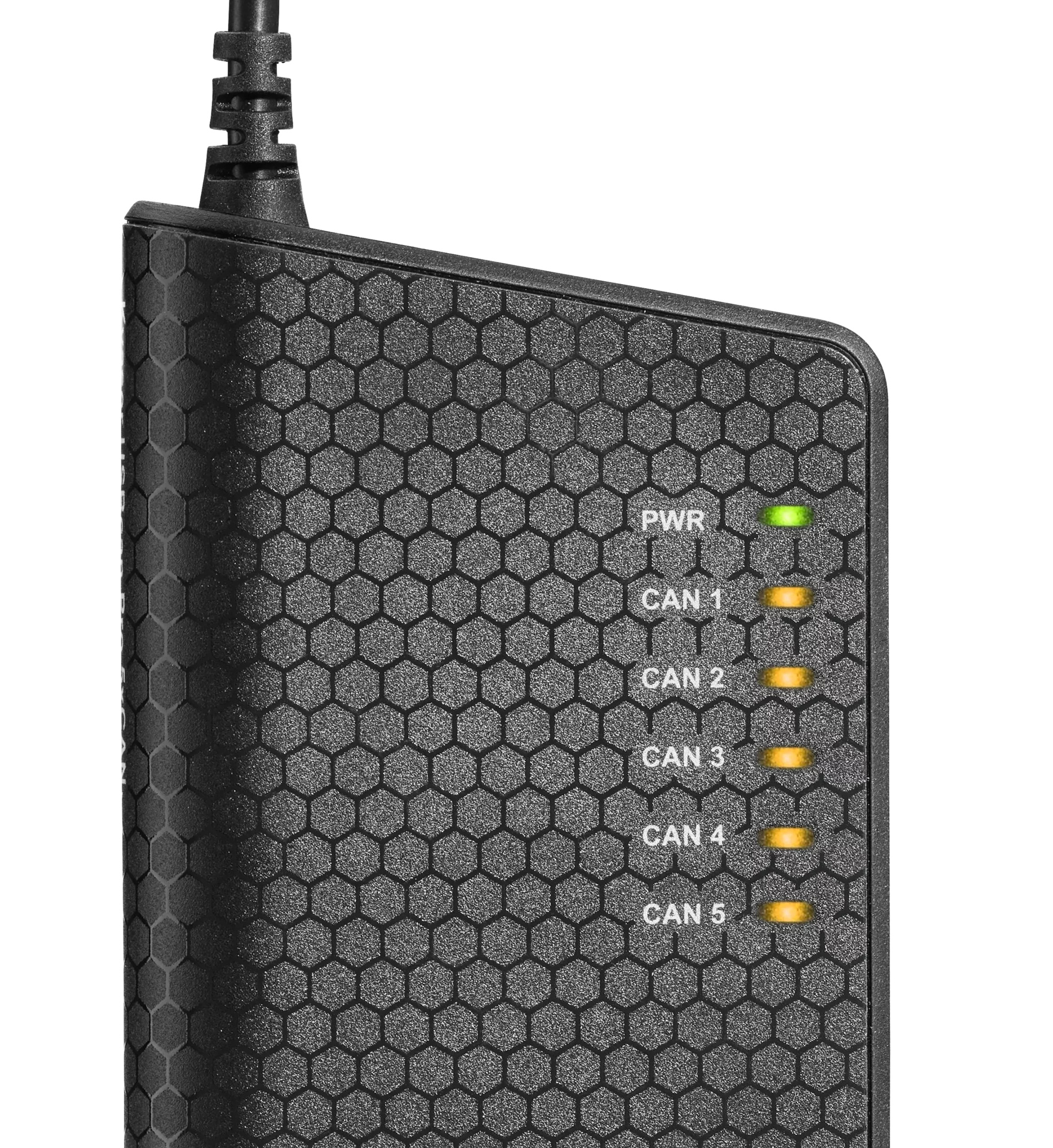

Kvaser USBcan Pro 5xCAN is a fully programmable USB-CAN interface that offers plug-and-play functionality and supports high-speed CAN FD up to 8 Mbit/s. Supporting both Classic CAN and high-speed CAN FD (up to 8 Mbit/s) with high-precision timestamps, it ensures seamless multi-channel performance for analysis and real-time data handling.
This high-performance CAN/CAN FD to USB interface features high timestamp precision, automatic time synchronization and the ability to run t scripts. As a multi-channel device, it allows multiple CAN buses to be monitored via one USB port. This makes it ideal for software updates or simultaneous data acquisition from multiple channels. g. With automatic time synchronization and full compatibility with Kvaser CANlib, it integrates effortlessly with various applications.
In additionally, it is designed for real-time transmission and reception of Classic CAN and CAN FD messages on the CAN bus with high timestamp accuracy.
Major Features
- USB CAN interface with Kvaser t-script
- Supports CAN FD, up to 8 Mbit/s
- Quick and easy plug-and-play installation
- Power is taken from the USB port, or from the USB port together with the CAN connector. External power is recommended when using all 5 channels simultaneously
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
- Kvaser MagiSync automatic time synchronization
- Supports silent mode for analysis tools – listen to the bus without interfering
- Supports simultaneous usage of multiple Kvaser interfaces

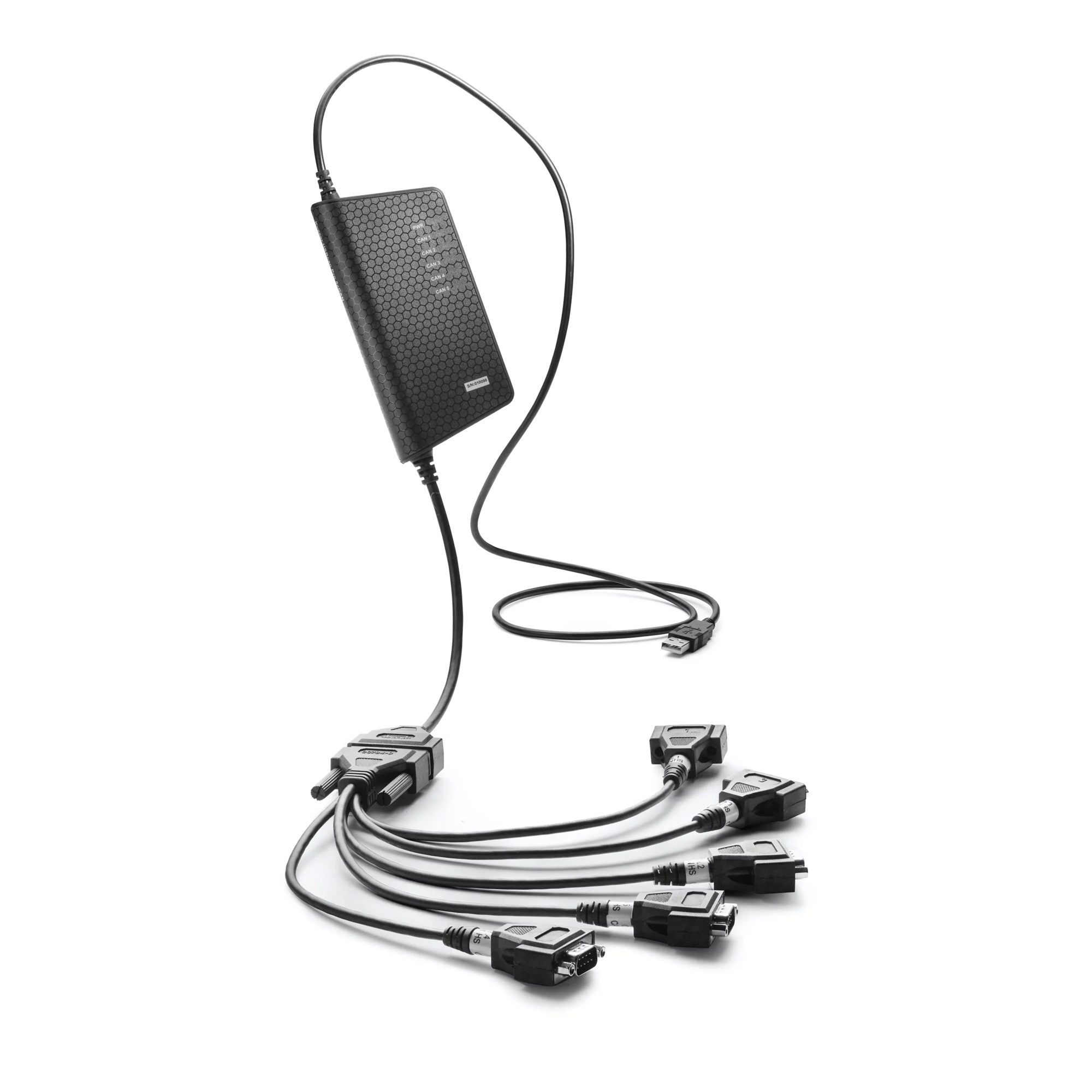

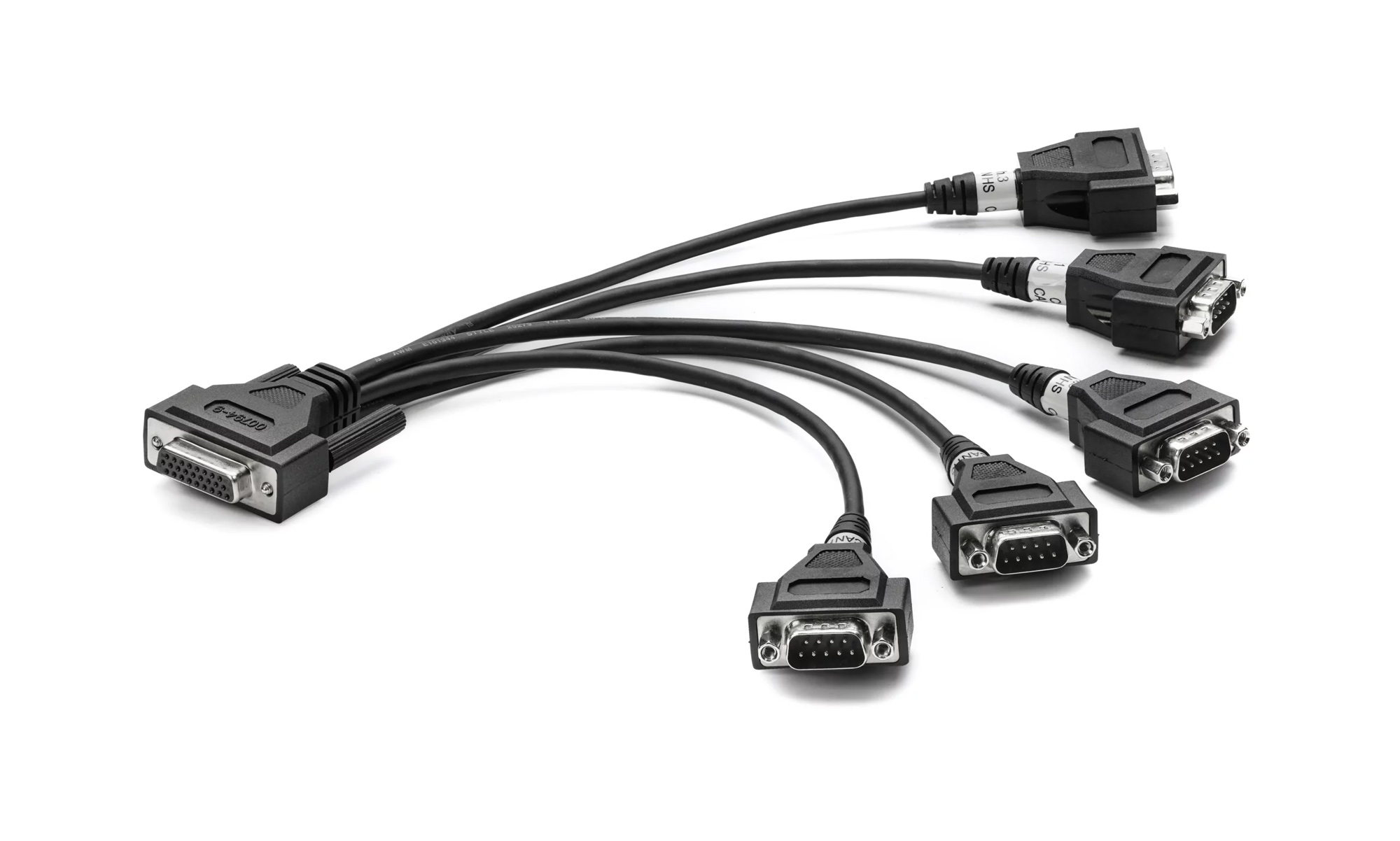

- Includes 5 channel breakout cable
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet
