Kvaser USBcan Pro 4xHS
Product Code: 73-30130-01261-5
11 323,00 SEK
Professiol four channel USB-to-CAN/CAN FD interface with t-Program
Kvaser USBcan Pro 4xHS is an advanced, portable multi-channel CAN/CAN FD to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. Features include t programming and MagiSync, which makes it possible to synchronise time stamps across multiple Kvaser MagiSync-enabled devices without requiring extra wires.
Kvaser USBcan Pro 4xHS USB to quad channel CAN interface is the Pro version of the Kvaser USBcan Light 4xHS (00831-1), a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer.
Major Features
- Multi-channel USB CAN interface with Kvaser t programmability
- 20 000 msg/s per channel, each timestamped with a resolution of 1 μs
- Kvaser MagiSync™ – automatic time synchronization
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation)
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Supports silent mode for analysis tools – listen to the bus without interfering
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Industrial grade temperature range, −40 oC to +85 oC
- Galvanic isolation
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet
- Simultaneous operation of multiple devices
- Power is taken from the USB bus

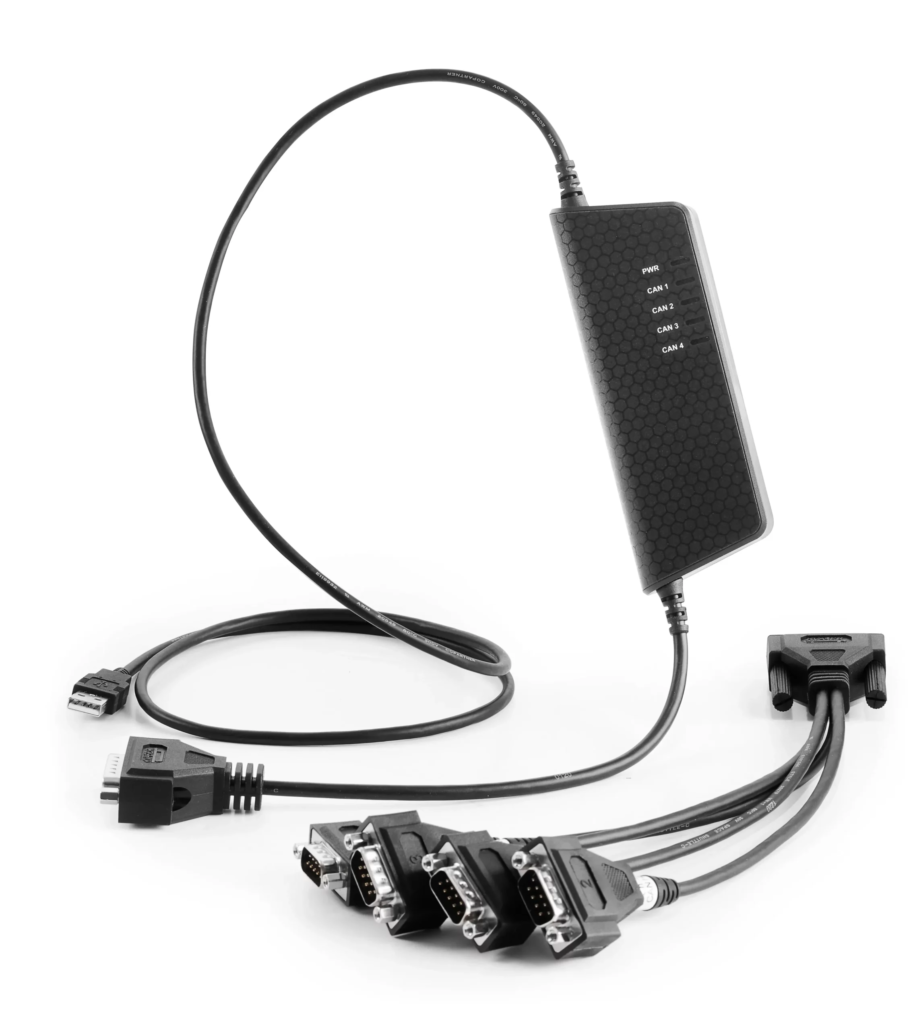

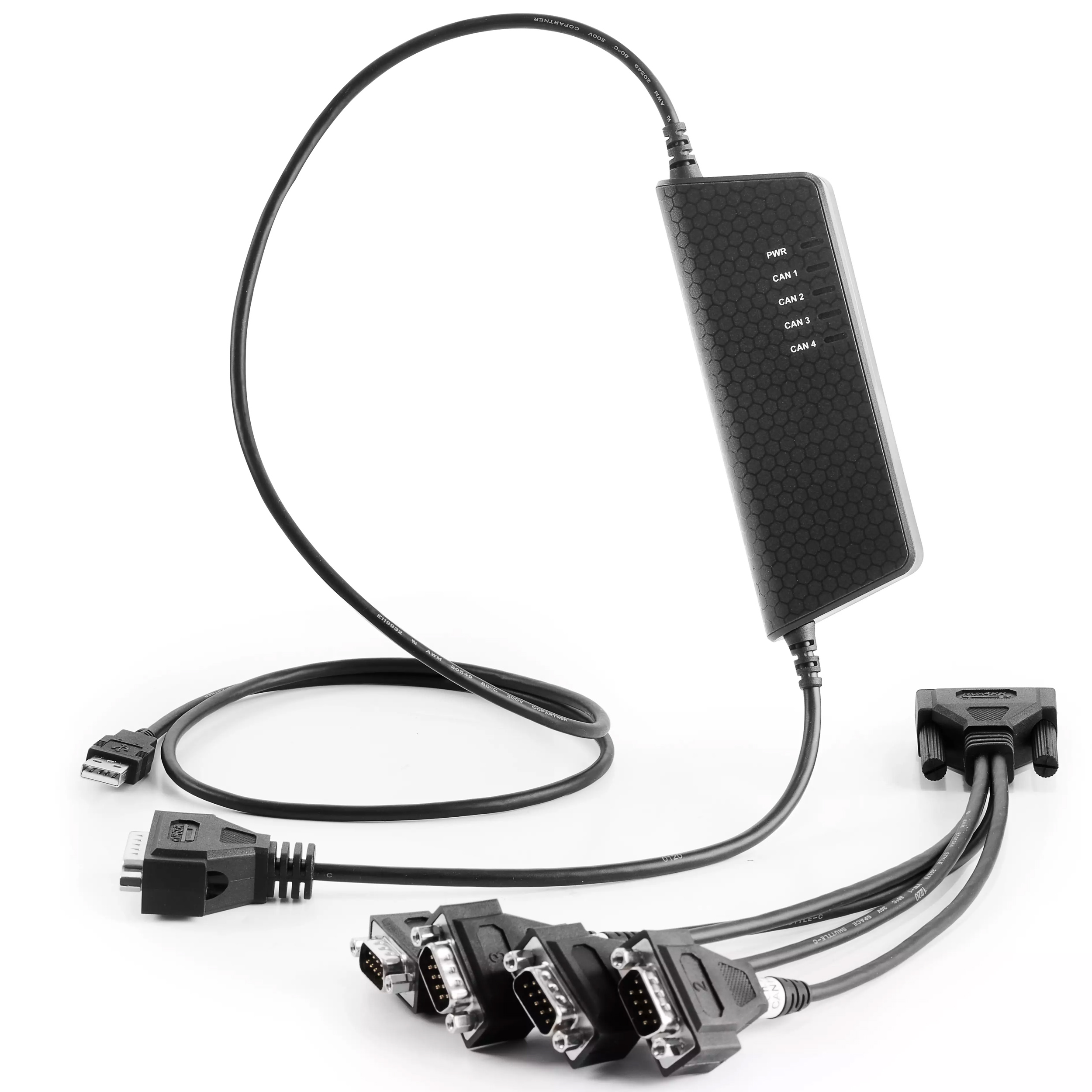

- Includes a 4-channel breakout cable (HD26 to 4xDS9 Splitter cable)
