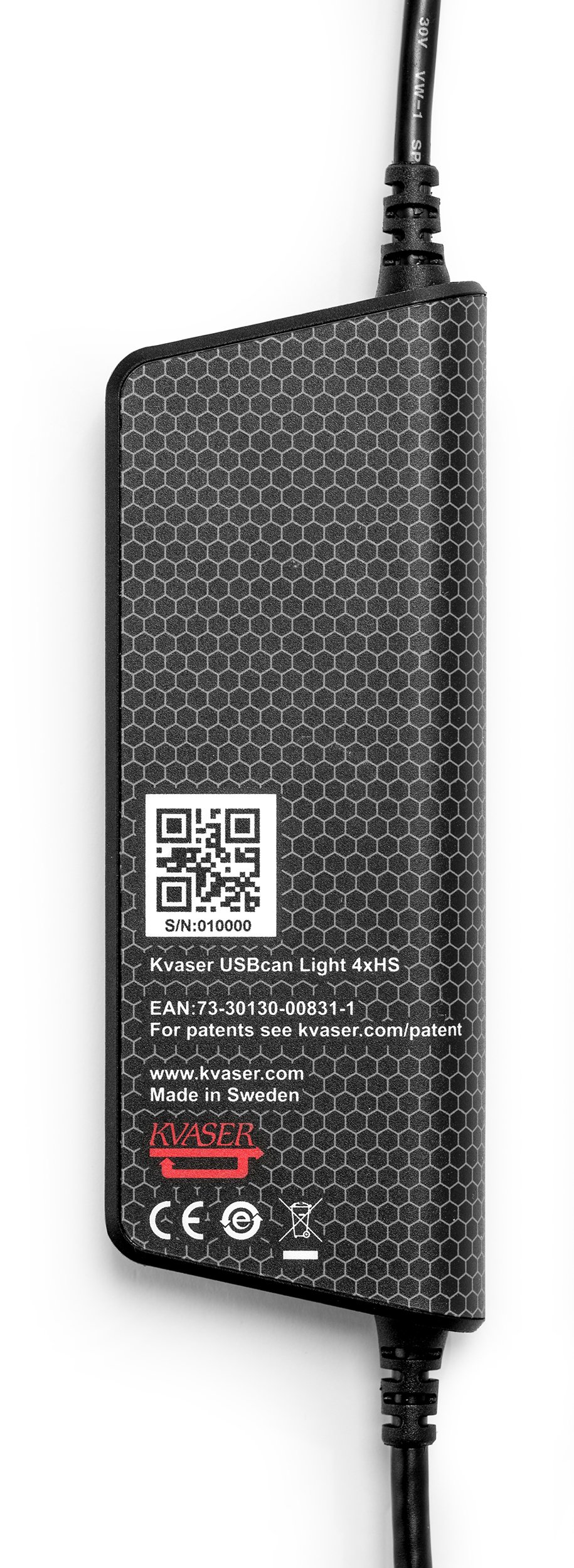

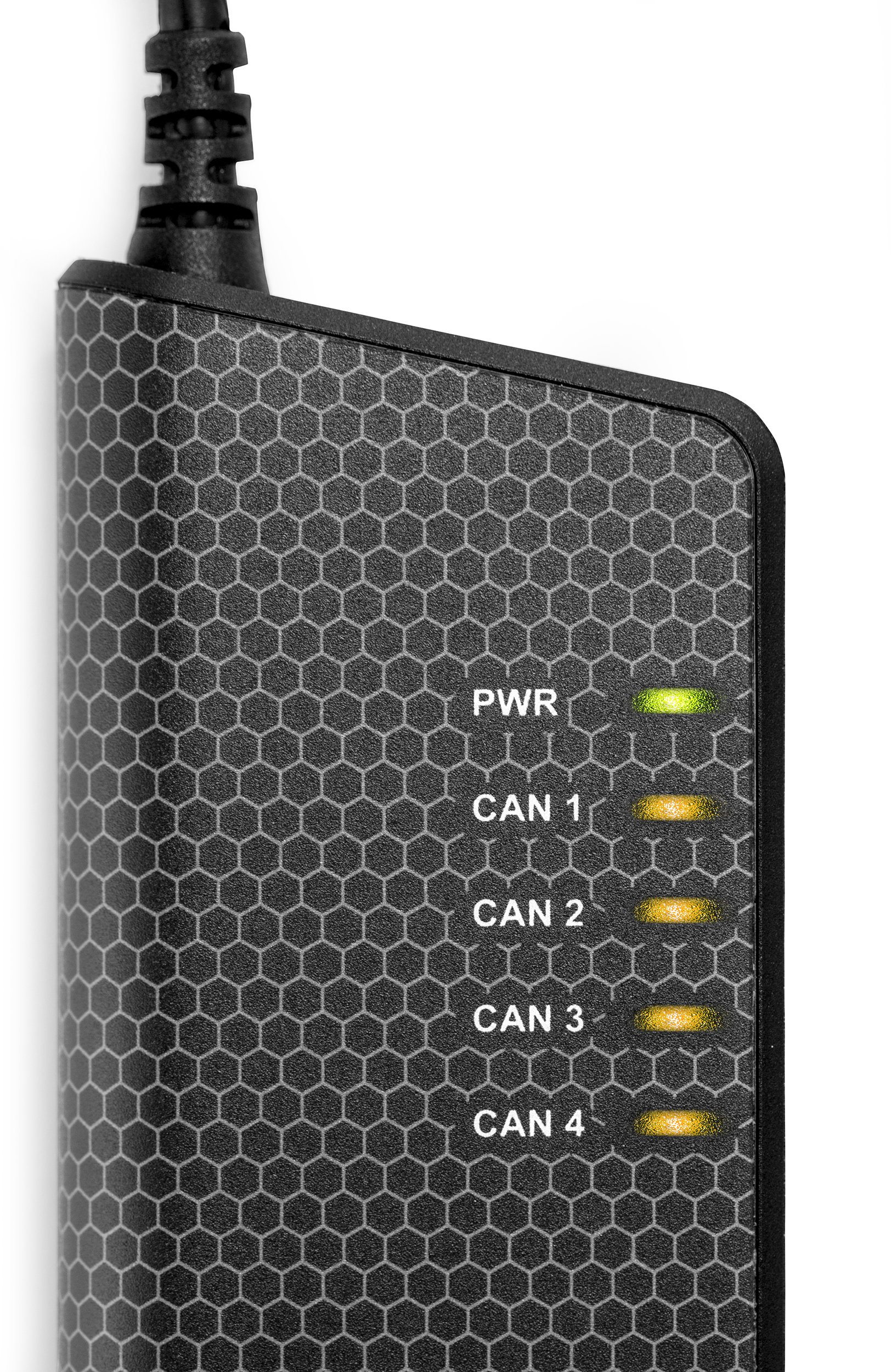

Kvaser USBcan Light 4xHS is 4 channel CAN high-speed interface

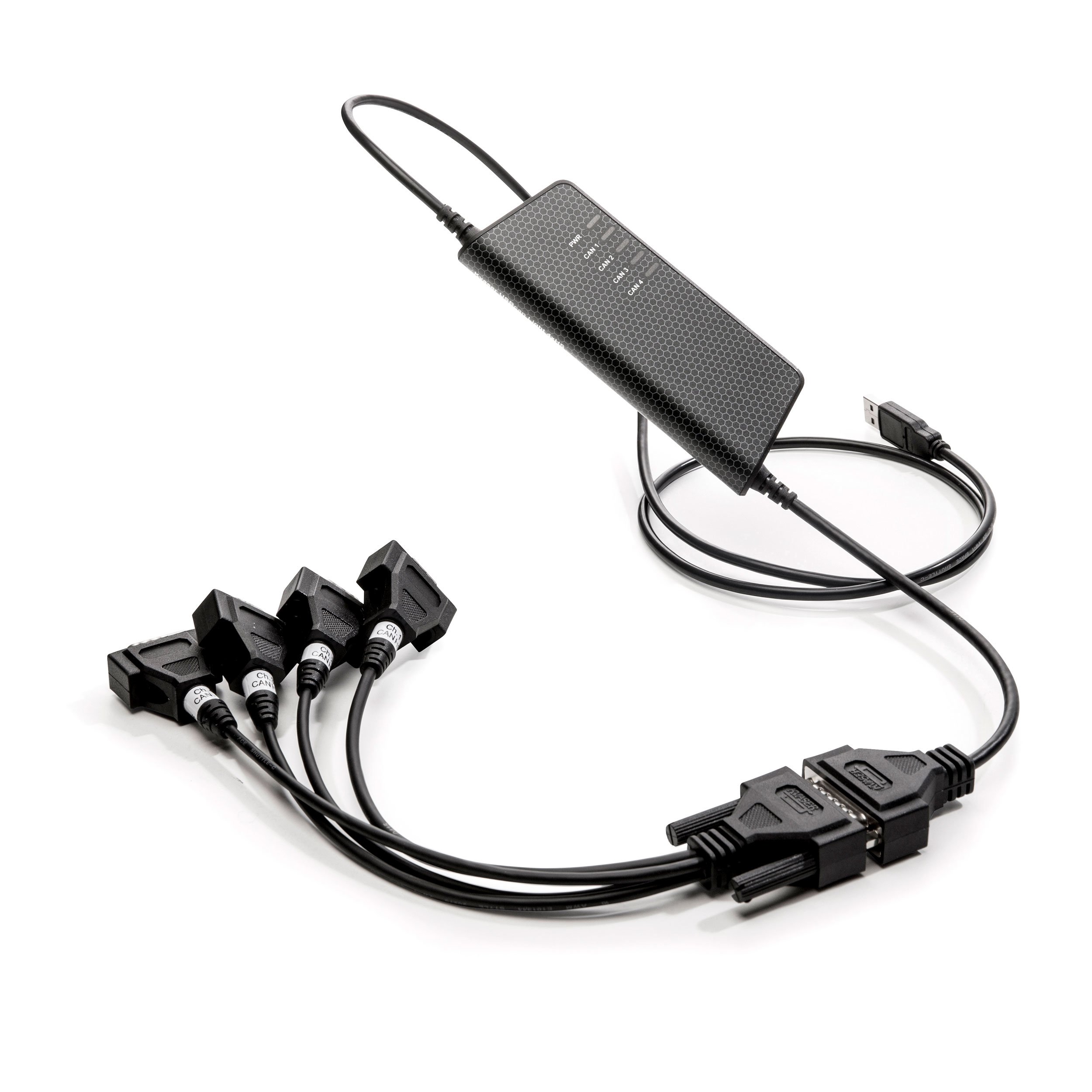

Kvaser USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors. Includes a 4-channel breakout cable: HD26 to 4xDS9 Splitter cable.
Major Features
- Low cost USB CAN interface
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Power is taken from the USB bus
- Galvanic isolation
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
- Simultaneous operation of multiple devices
- Includes 4 channel breakout cable
- Support for SocketCAN
