Kvaser USBcan Pro 2xHS v2 has USB to dual channel CAN or CAN FD interface with scripting capability

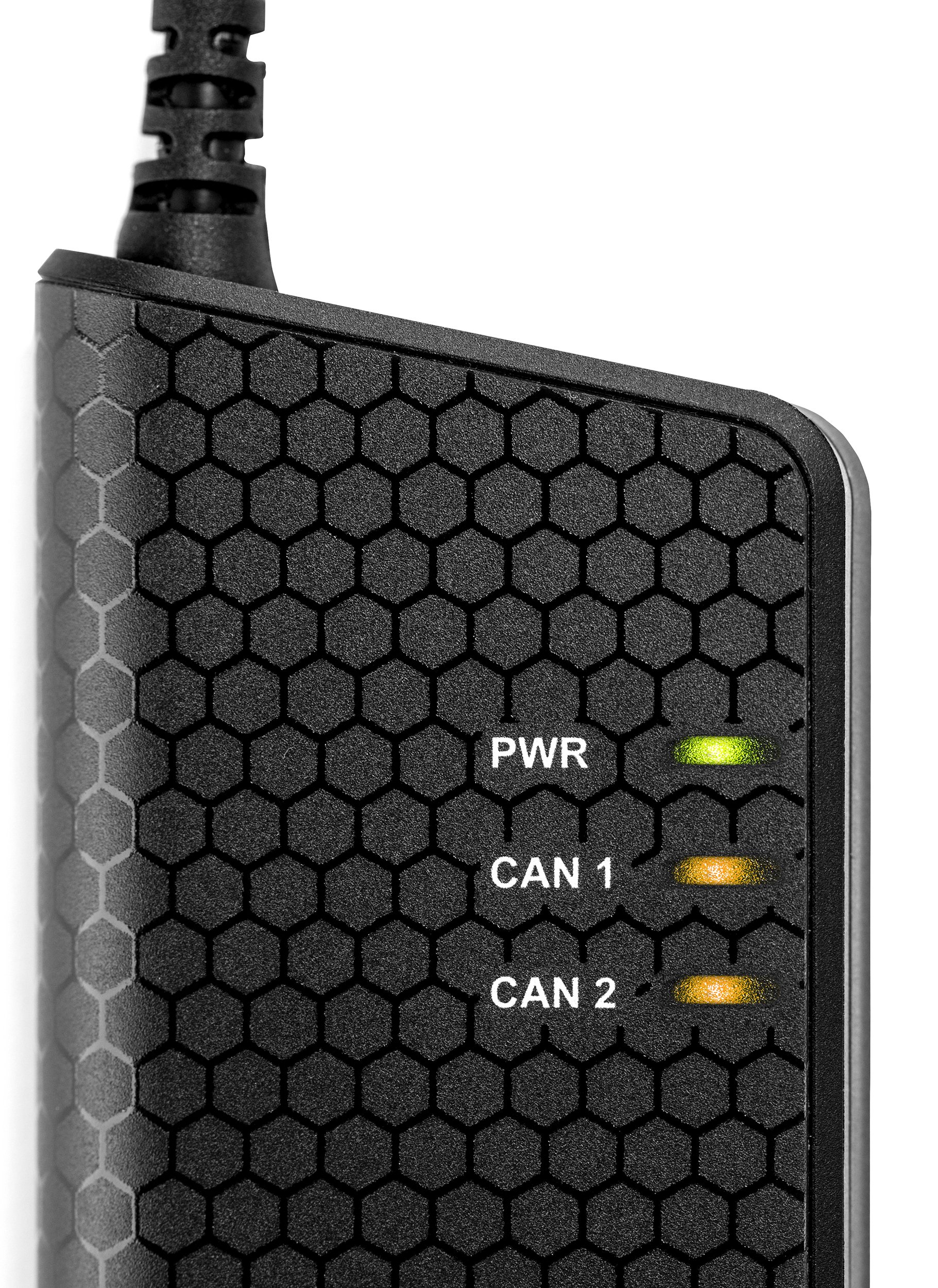

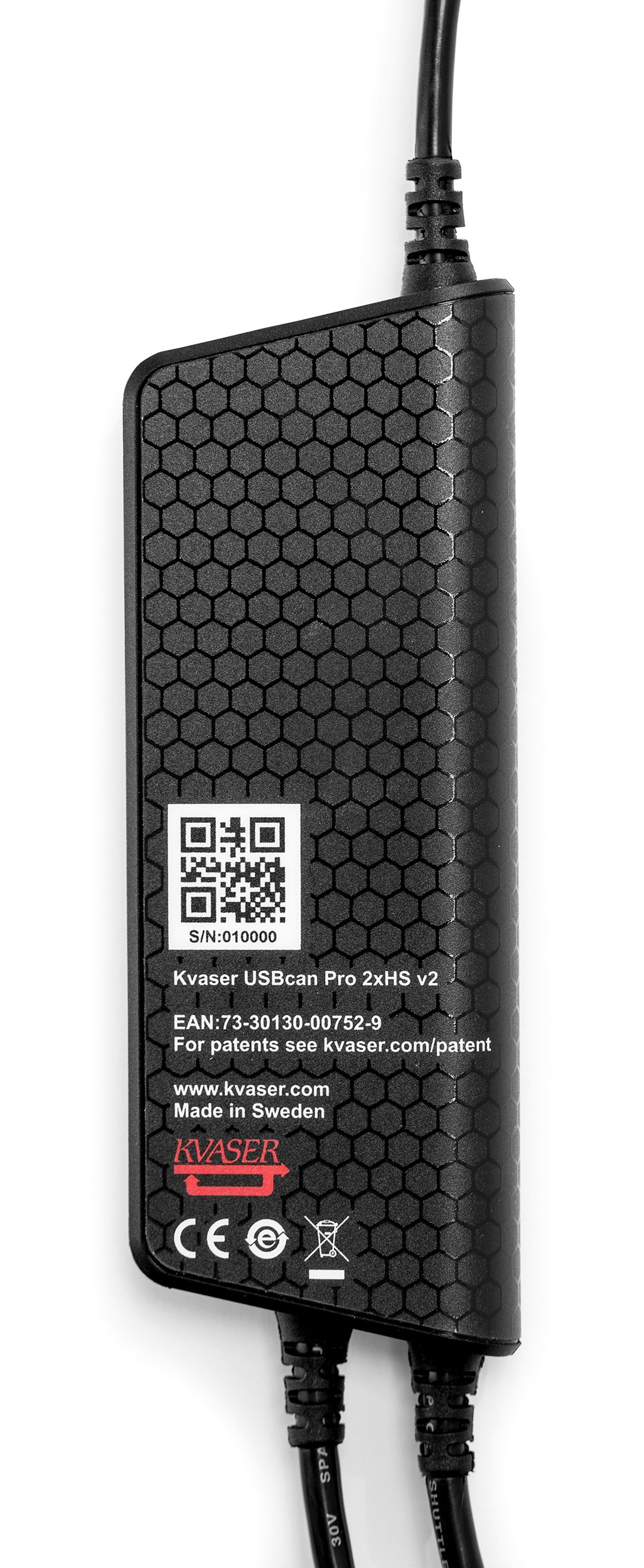

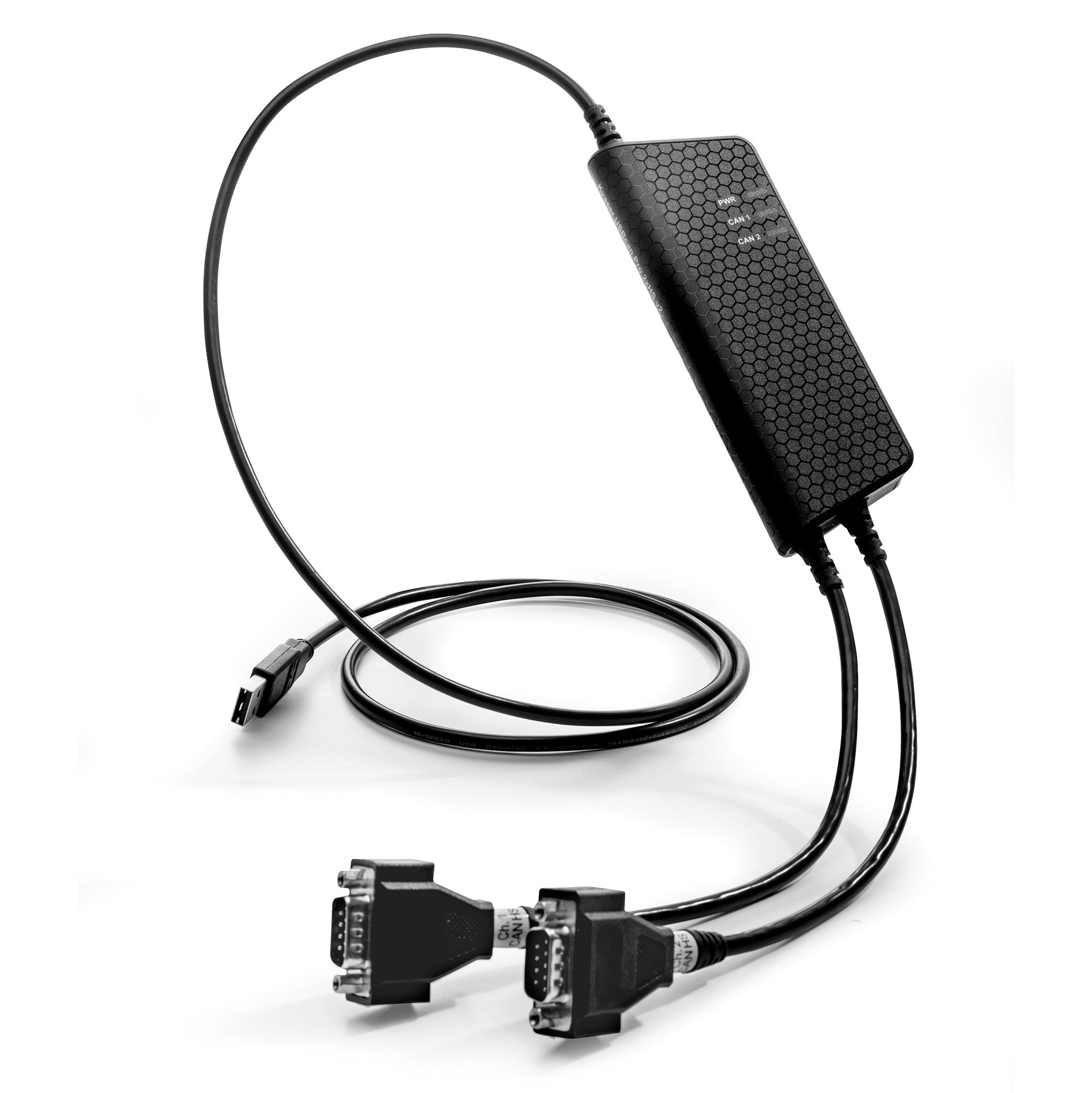

Kvaser USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with t-Program. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.
Major Features
- USB CAN interface with Kvaser t programmability.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Galvanic isolation.
- Quick and easy plug-and-play installation.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
- Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
- Simultaneous operation of multiple devices.
- Support for SocketCAN
