Kvaser U100P
Product Code: 73-30130-01174-8
5 889,00 SEK

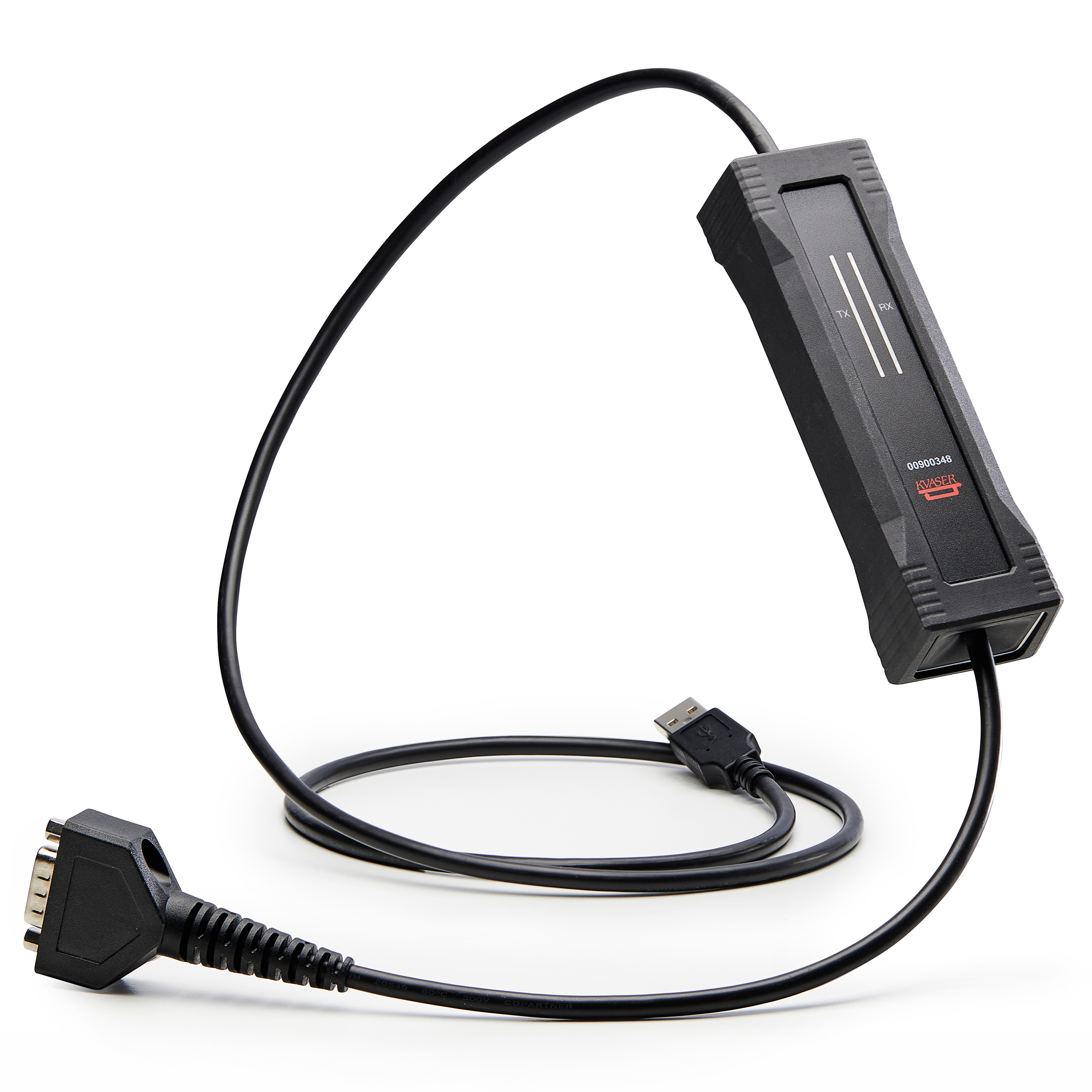

Introducing the Kvaser U100P: The Precision Version of U100 CAN to USB Interfaces
The Kvaser U100P represents a significant advancement in CAN to USB interfaces, specifically designed to meet the demanding requirements of engineers involved in system development and troubleshooting. With its enhanced features, including precise timestamping, synchronized time measurements across multiple devices, and the ability to operate in silent mode, the U100P sets a new standard in precision performance.
Experience Enhanced Electrical Protection
Engineered for durability and reliability, the U100P boasts robustness and galvanic reinforcement, ensuring optimal signal and power isolation. In addition to these features, the U100 range provides enhanced electrical protection, offering peace of mind even in challenging environments. Its vibration, shock, and drop-proof housing, combined with high-quality cabling, redefine the benchmarks of CAN interface design. The U100P is a worthy successor to the Kvaser U100 (01173-1), building upon its legacy of excellence.
Major Features
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Reinforced galvanic isolation, design validated with 5000 VAC rms applied for 60 s.
- 20 000 msg/s, timestamped with a resolution of 1 μs.
- Kvaser MagiSync™ – automatic time synchronization.
- Industrial grade temperature range, −40 oC to +85 oC.
- Powered through the USB connector.
- Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
- Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
- IP67 rated.
- DB-9 connector (other connectors available).

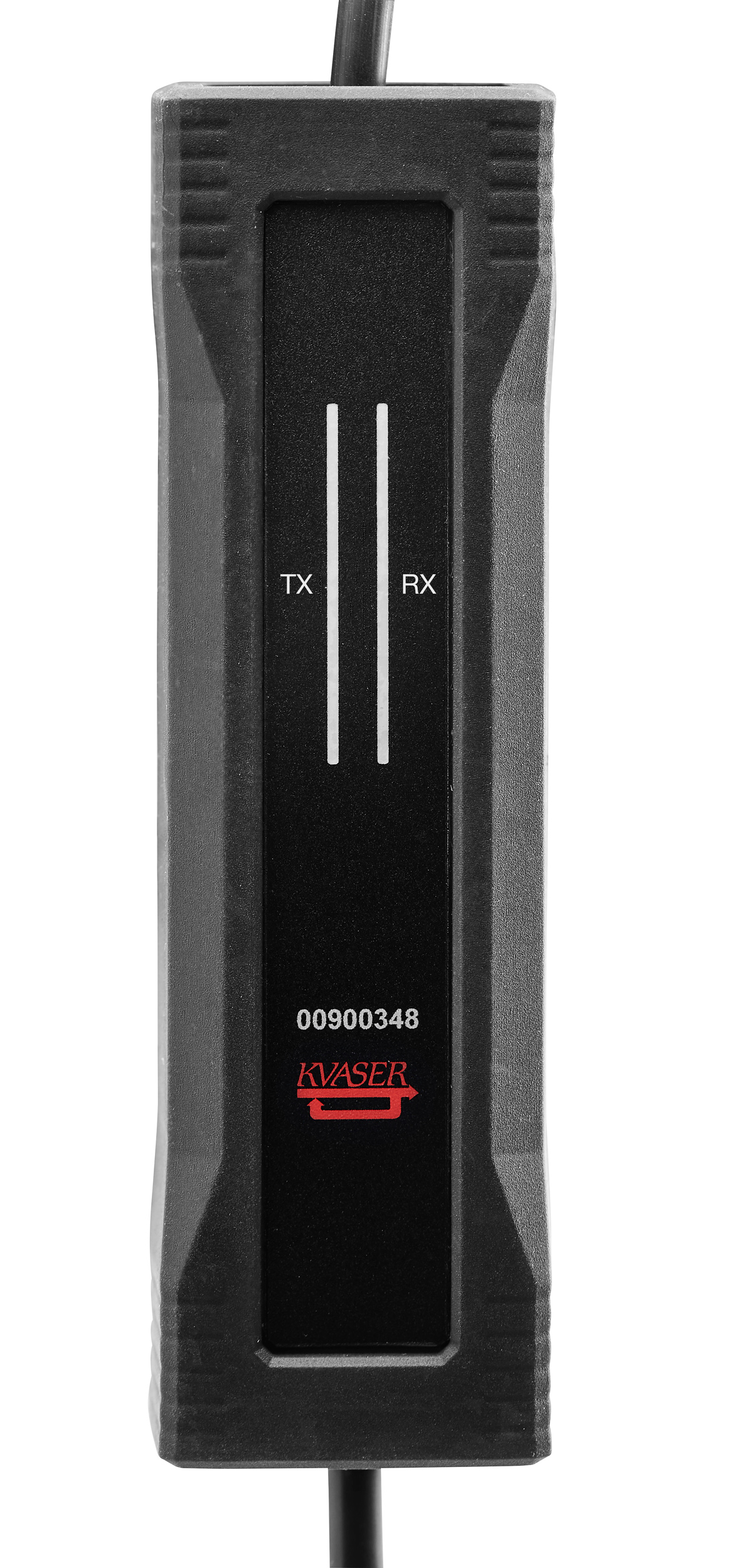

- Intuitive LED UI.
- Support for SocketCAN.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Fully compatible with applications written for other Kvaser CAN hardware with CANlib.
