Kvaser PCIe 8xCAN
Product Code: 73-30130-01512-8
9 500,00 SEK

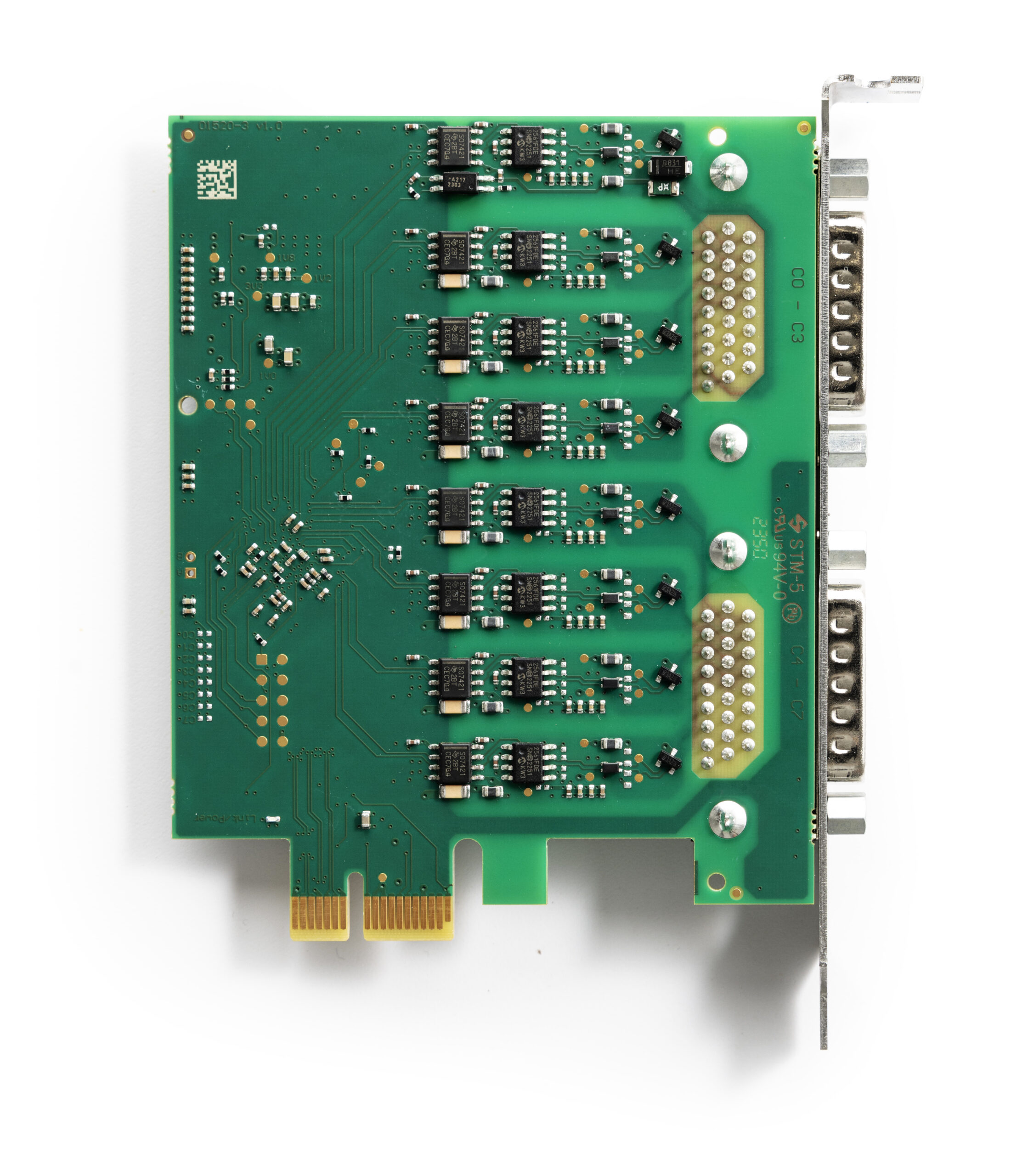

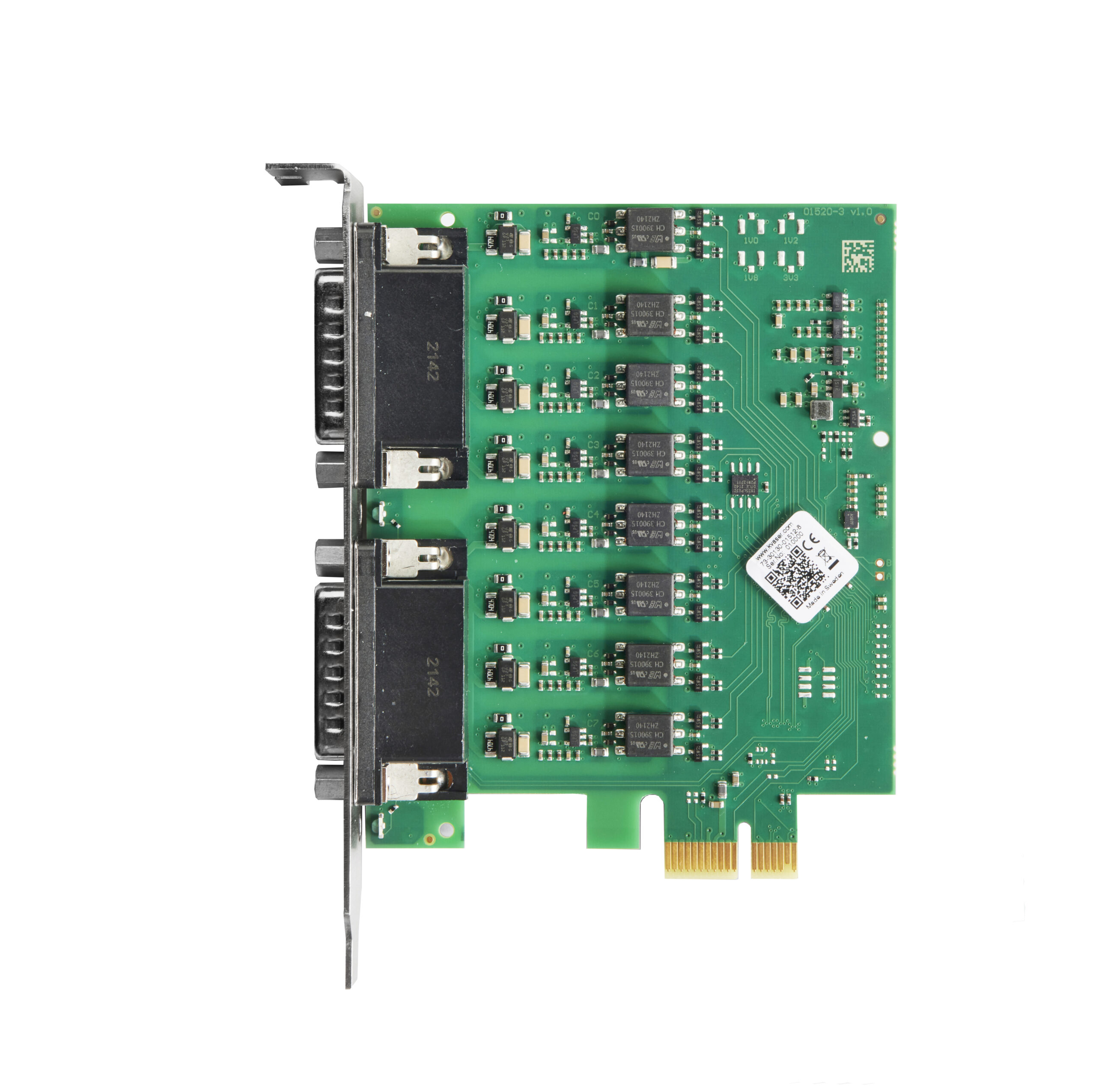

A Kvaser powerhouse in a compact form! This advanced multi-channel real-time CAN interface boasts 8 CAN/CAN FD channels, all within the standard PCIe board height.
The Kvaser PCIe 8xCAN is designed for scalability, allowing for the connection of multiple boards to capture data from many CAN channels simultaneously. This is ideal for high channel count applications such as hardware-in-the-loop (HIL) suites in automotive testing, where managing upwards of 20 CAN channels is increasingly required.

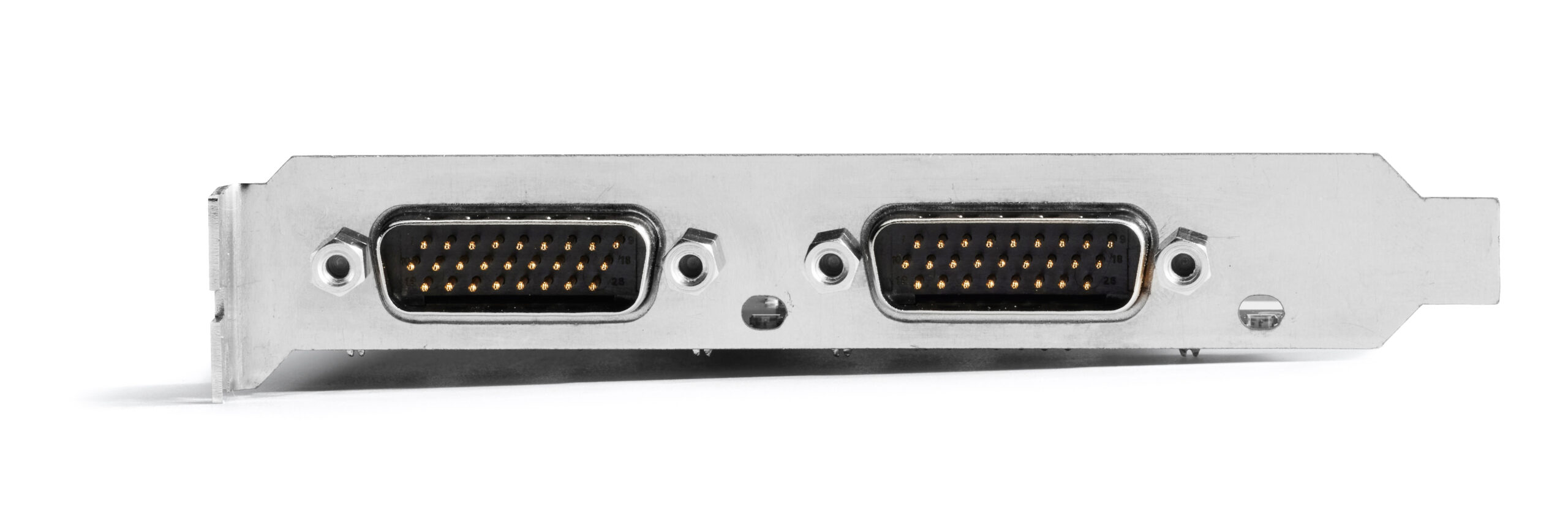

The Kvaser PCIe 8xCAN has two 26-pin HD D-SUB connectors, each supporting four channels. For added flexibility, we offer an HD26-4xDS9 splitter to connect to four separate 9-pin D-SUB connectors, or an HD26-4xM12 splitter for four 5-pin M12 connectors. The Kvaser PCIe 8xCAN shares the same pin arrangement as the Kvaser PCIEcan 4xCAN v2, ensuring seamless integration into your existing setups.
Major features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports silent mode for analysis tools – listens to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Full-profile PCIe card.
- Support for SocketCan.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application.
