Kvaser M.2 PCIe 4xCAN
Product Code: 73-30130-01333-9
6 300,00 SEK

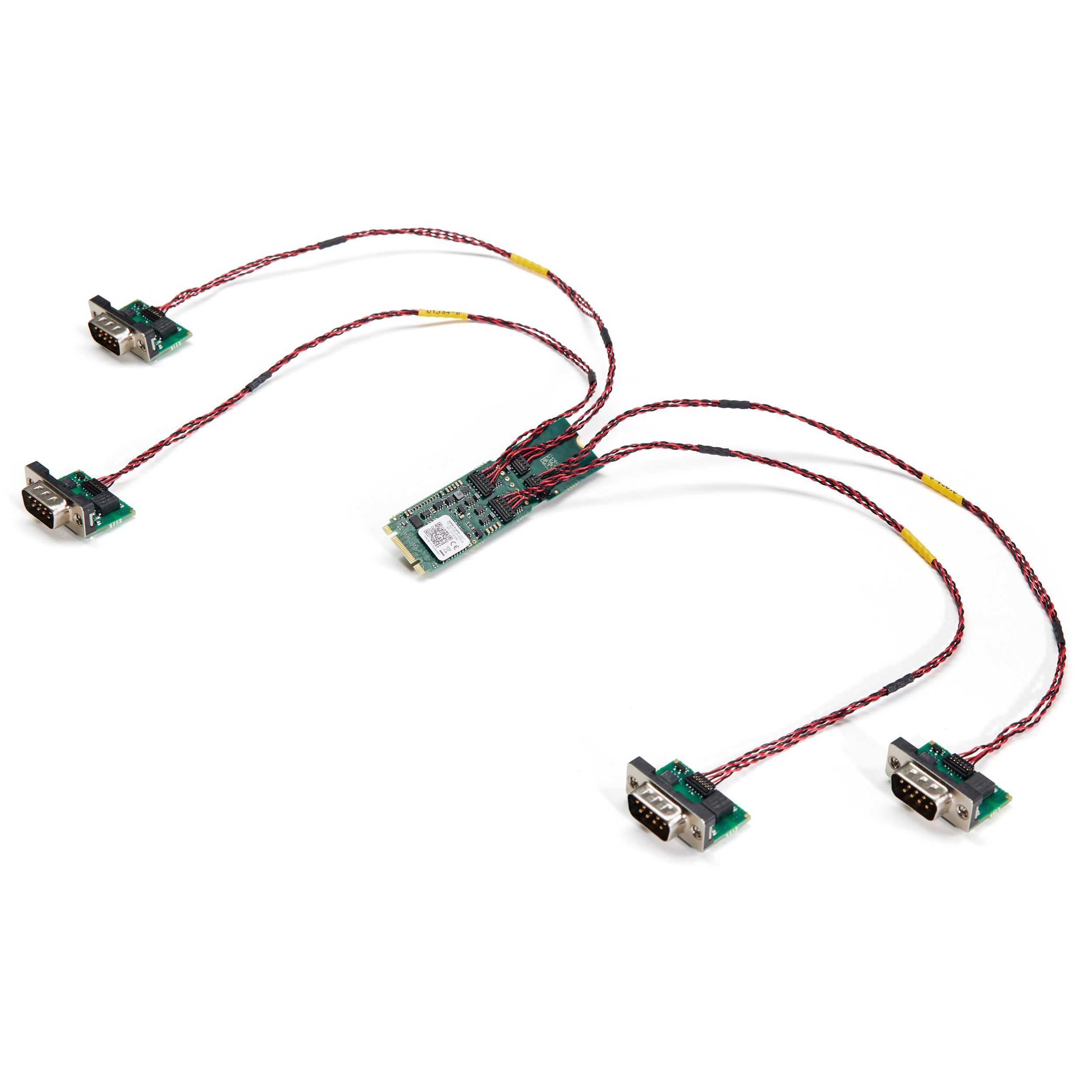

Kvaser M.2 PCIe 4xCAN: High-Performance Embedded CAN Interface Board with Distributed Transceivers
The compact and powerful embedded CAN interface board seamlessly adds four high-speed CAN/CAN FD channels to your host computer via PCI Express.

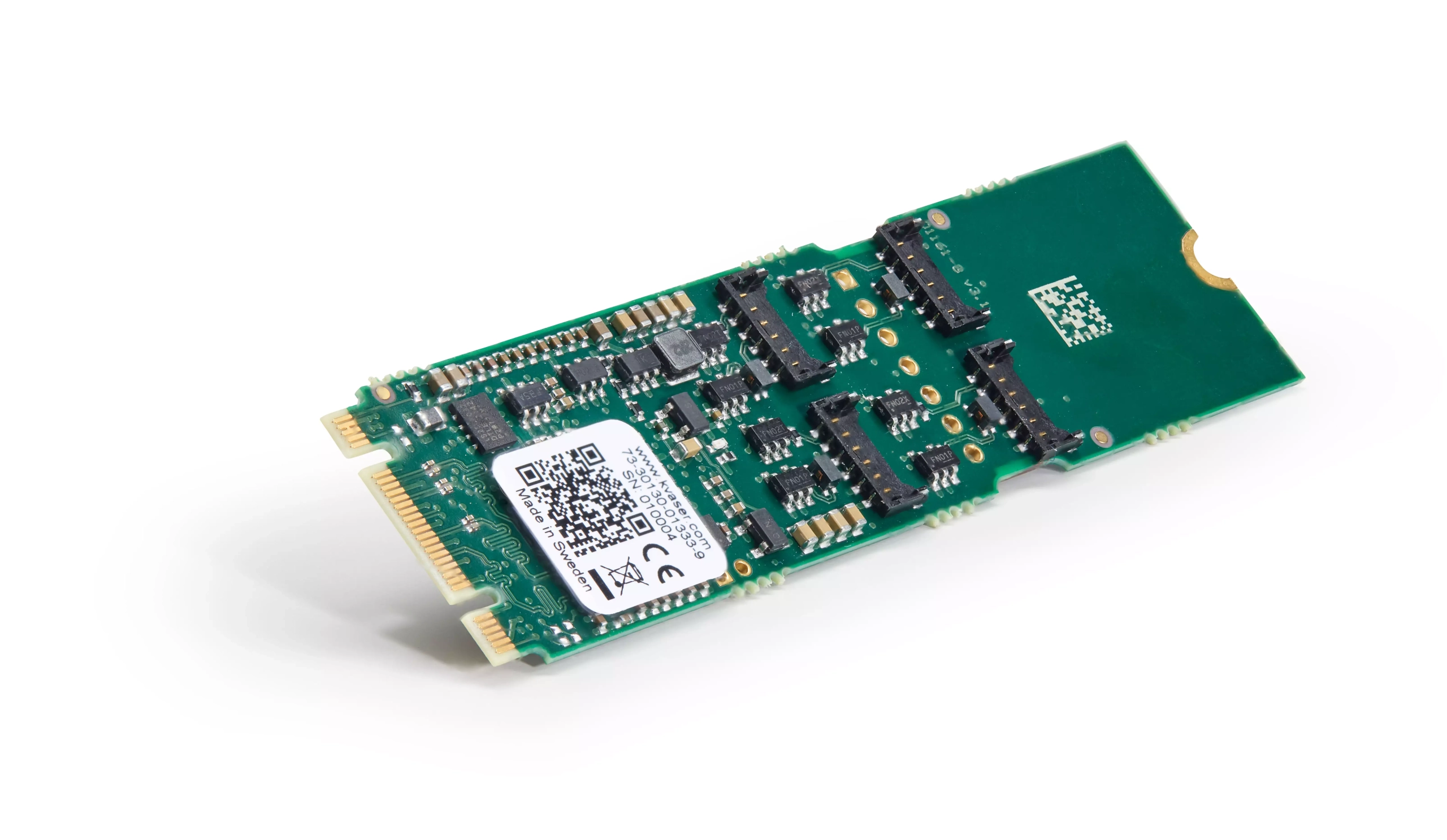

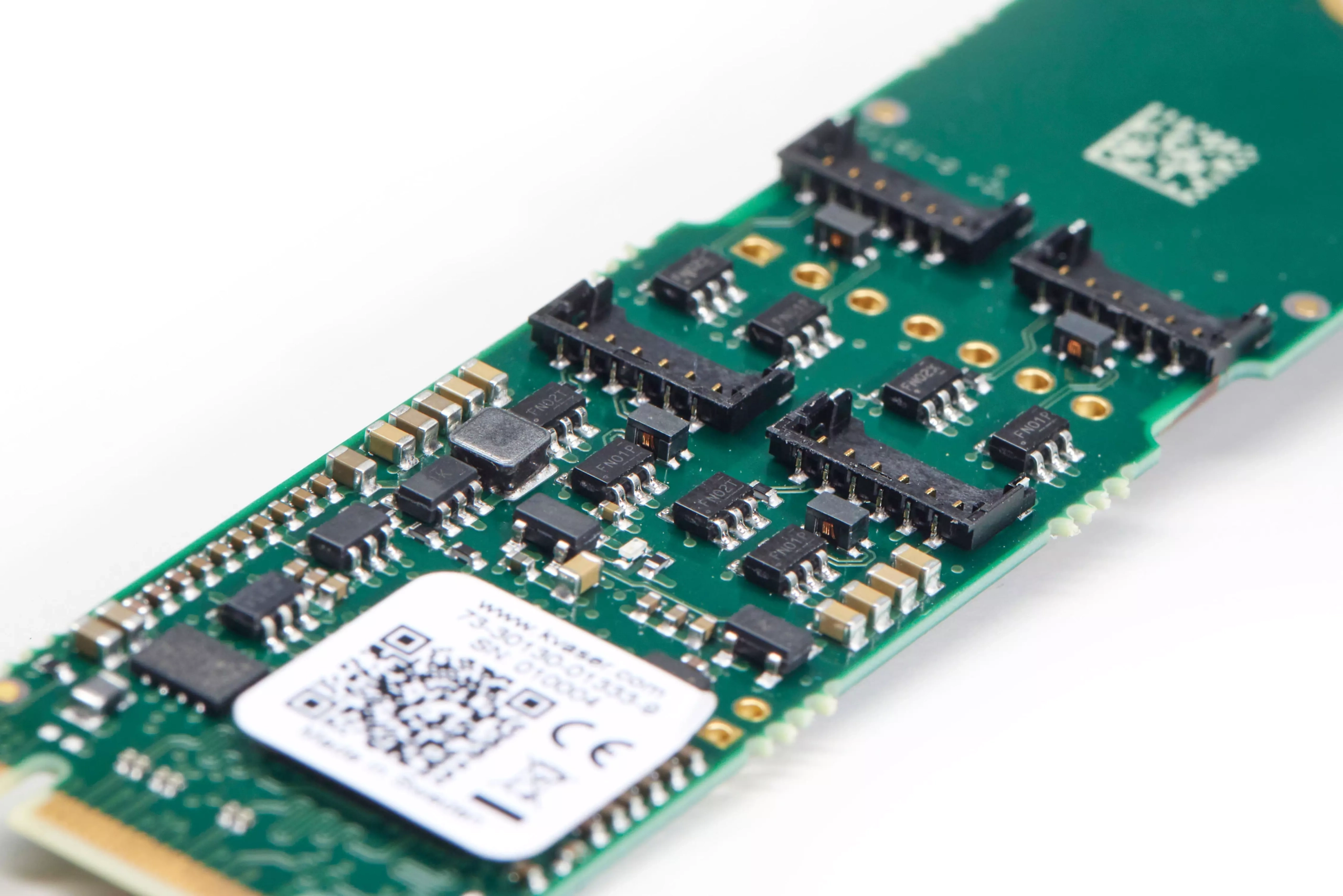

With a compact 22 x 80 mm M.2 card size and a mere 2 mm height, this board stands out for its distributed CAN transceivers, optimizing signal quality. Boasting a timestamp resolution of 1 μs and an impressive maximum message rate of 20000 msg/s per channel, it’s perfect for embedded systems requiring advanced features like silent mode, error frame detection, and generation.
Seamless Integration, Maximum Performance
Unlock unparalleled connectivity with the Kvaser M.2 PCIe 4xCAN, a cutting-edge embedded CAN interface board designed to elevate your embedded systems to new heights. This compact board, measuring 22 x 80 mm with an industry-leading height of just 2 mm, effortlessly integrates four high-speed CAN/CAN FD channels into your host computer via PCI Express connectivity and an available B or M keyed M.2 slot.
Major Features
- B+M keyed M.2 PCI Express CAN interface with four channels.
- Distributed and modular CAN modules minimising the signal integrity impact when connected to CAN-bus systems.
- Compact footprint, ideal for embedded applications, thanks to the M.2 card size of 22 x 80 mm.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Connectors : DSUB 9
- Error frame generation : Yes
- Galvanic Isolation
- Timestamp Resolution (µs) : 1µs
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces and SocketCAN.
Precision Engineering

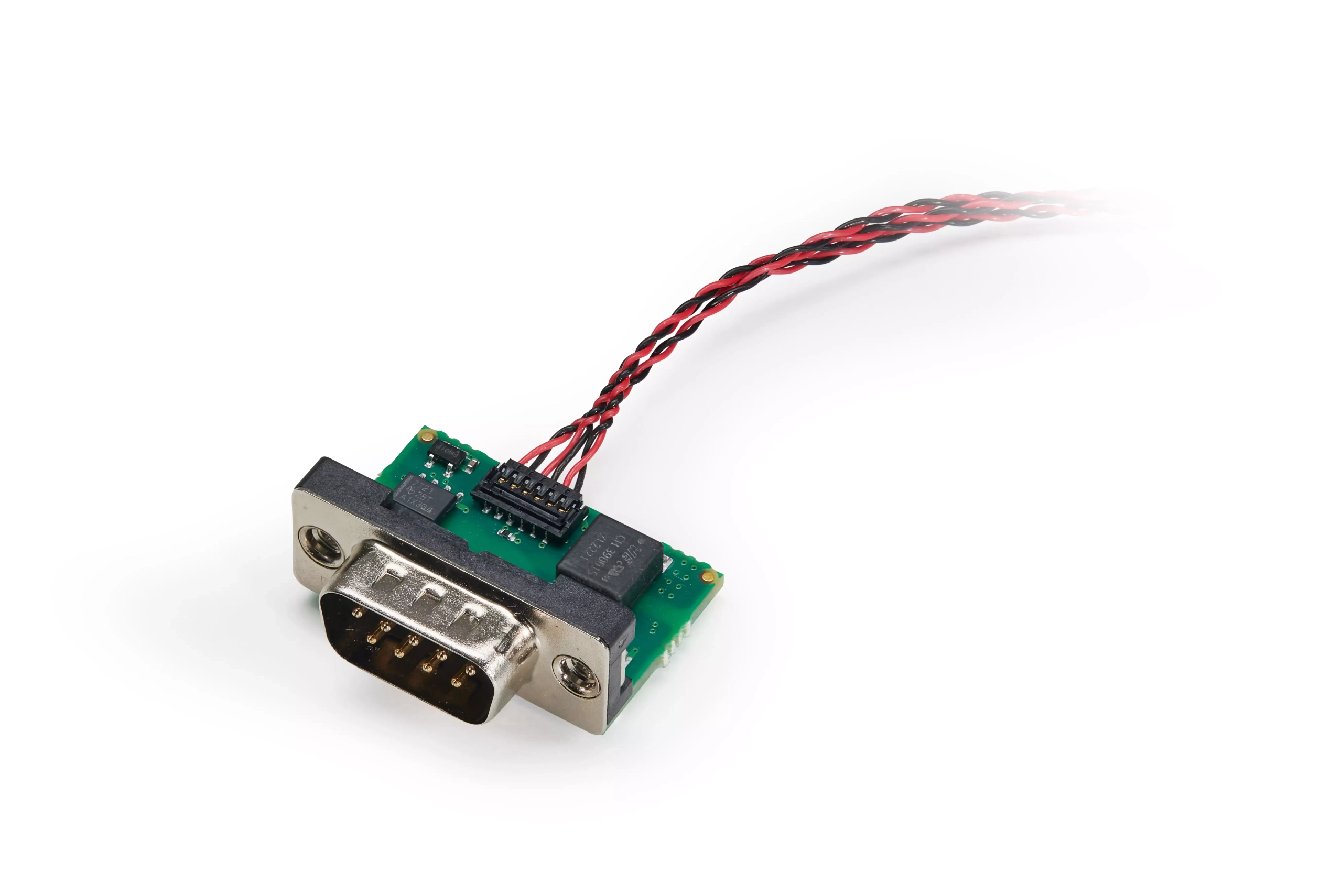

What sets the Kvaser M.2 PCIe 4xCAN apart is its innovative approach to CAN transceivers – they are distributed (off-board), strategically positioned closer to the CAN networks. This unique layout maximizes signal quality and integrity, ensuring optimal performance in diverse embedded applications.
Experience precision with a timestamp resolution of 1 μs, enabling meticulous synchronization in your systems. Each channel supports a maximum message rate of 20000 msg/s, providing a high-speed data exchange that meets the demands of dynamic embedded environments. The advanced features of the board, including silent mode, error frame detection, and generation, empower you to fine-tune your system for seamless operation.
Versatile Excellence
Whether you’re developing automotive applications, industrial automation solutions, or any other embedded system requiring reliable and high-performance CAN communication, the Kvaser M.2 PCIe 4xCAN is your go-to solution. Elevate your projects with a compact footprint, distributed transceivers, and advanced capabilities that make this board a powerhouse in the world of embedded CAN interfaces.
