Buy Kvaser Ethercan Light HS online!

5 064 SEKExcl. VAT

Add to Cart

Shipping in 1 to 4 working days

Quotations and more info contact info@tkesweden.se

Product Specification

  • Bitrate 40-1000 kbps
  • Certificates CE, RoHS
  • Channels 1

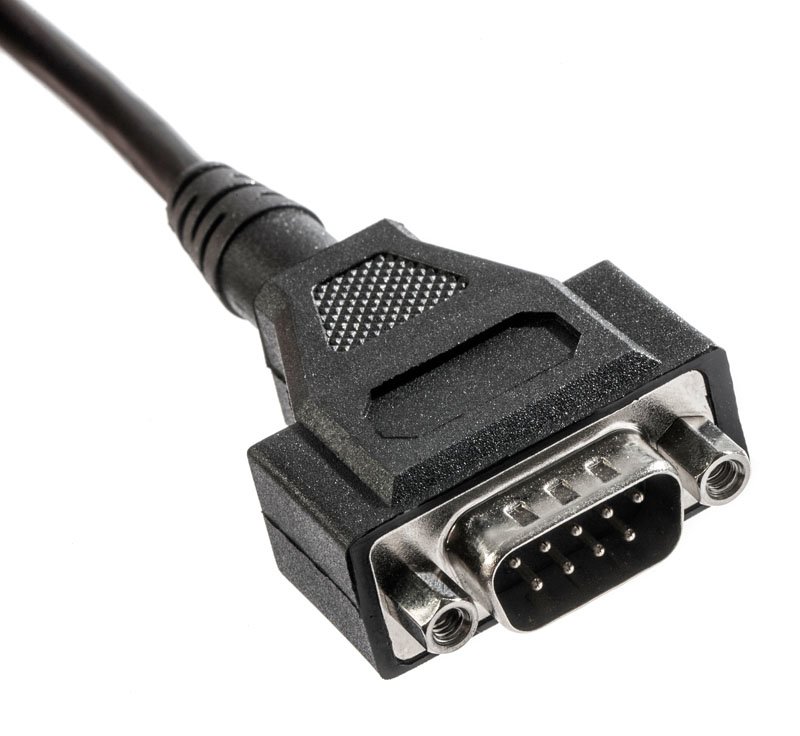

  • Connectors DSUB 9
  • Current Consumption 1.2W
  • Error Counters Reading No
  • Error Frame Generation No
  • Galvanic Isolation Yes
  • Height 17 mm

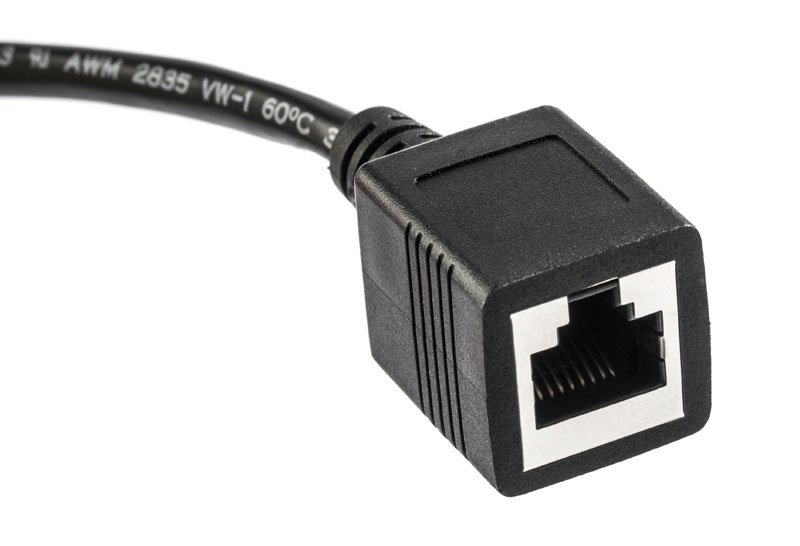

  • Interfaces Ethernet RJ45
  • Length 165 mm
  • Material PA66
  • Messages Per Second Receive 8000 mps
  • Messages Per Second Sending 8000 mps
  • OS Win 7, Win 10, Win 8
  • Silent mode No
  • Sound No
  • Temp range -20 °C to +70 °C
  • Timestamp Resolution (µs) 100 µs
  • Weight 100 g

Interested in Kvaser Ethercan Light HS?

Contact info@tkesweden.se for more info.

Downloads

  • Datasheet
  • User Guide

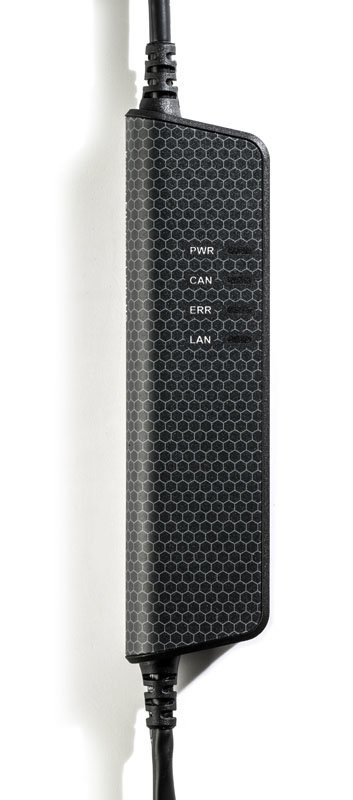

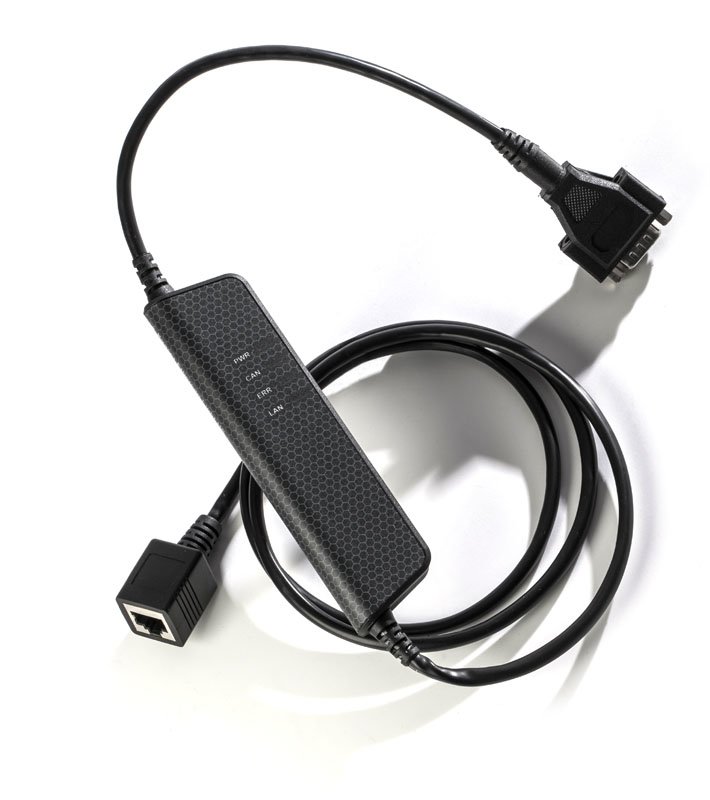

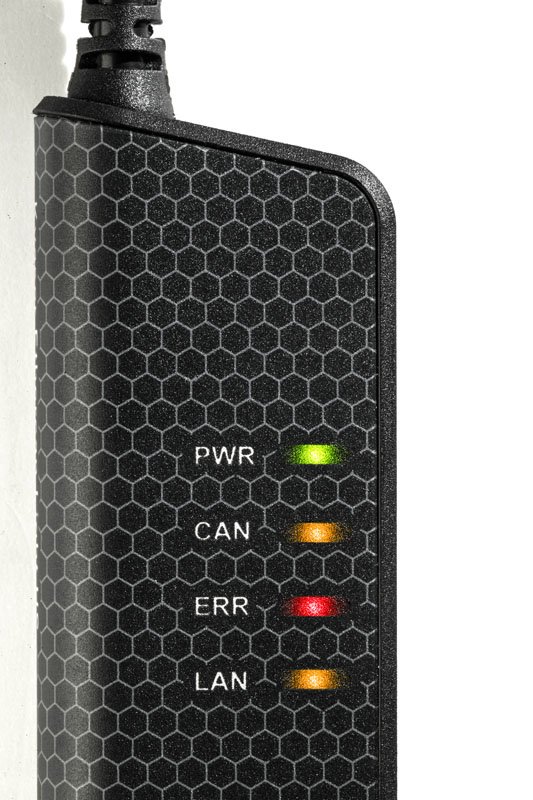

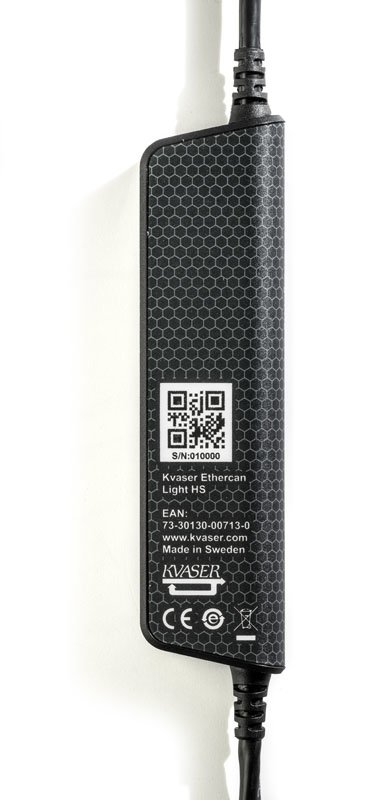

Kvaser Ethercan Light HS

Product Code: 73-30130-00713-0

5 064,00 SEK

Kvaser Ethercan Light HS: CAN to Ethernet interface

The Kvaser Ethercan Light HS is a CAN to Ethernet interface. When device is linked over the Internet to an Ethernet-equipped PC, it allows CAN data to be remotely accessed from anywhere in the world.

Simplifying IoT Implementation with Ethercan: Seamless Integration of CAN Data into Corporate Networks and the Cloud

Ethercan makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or the Cloud, using the standard Kvaser API. The Kvaser Ethercan device can be configured with a static IP and comes with an Ethercan Factory Reset Device to reset the configuration to factory default DHCP settings at the push of a button.

Major Features

  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Ethernet connection has auto-MDIX, so it automatically detects and adjusts for Ethernet cable being used.
  • Built-in Power over Ethernet (PoE) – receives data and power over the Ethernet cable.
  • Also receives power over CAN so the Ethercan can be powered through devices like our T-Cannector v2.
  • Small, lightweight plastic housing with galvanic isolation.
  • Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.

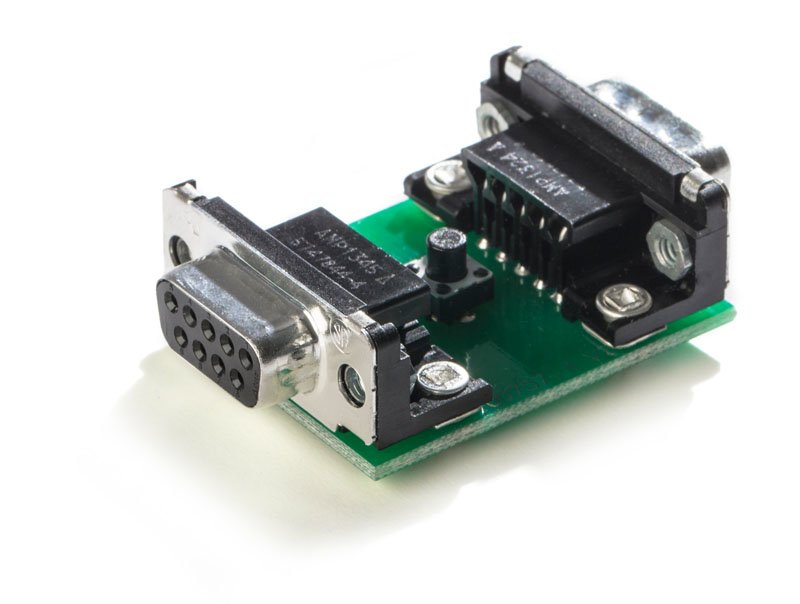

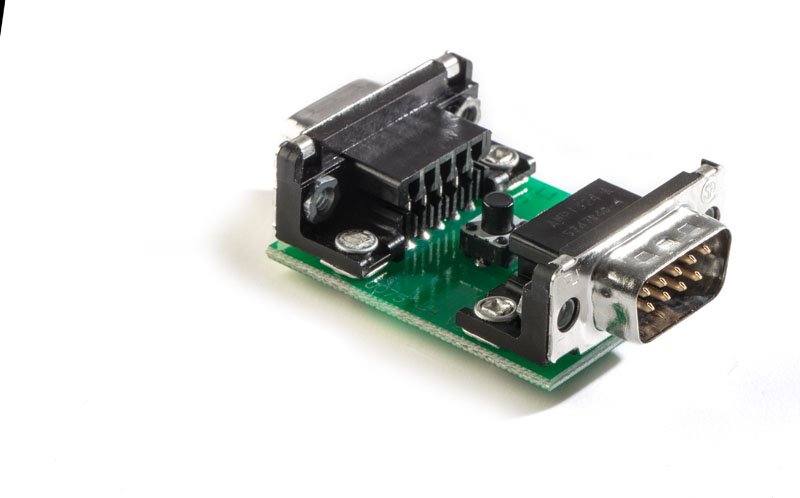

  • Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan’s IP address to factory defaults at the push of a button.

Product video – How to use Kvaser Ethercan Light HS

SKU: 73-30130-00713-0 Categories: Interfaces, Kvaser Tags: DSUB-9, Ethernet, Ethernet-CAN Interface
