K-TC Range
Product Code: INF2204.NN
Unleash the full potential of temperature measurement with the K-TC Range!

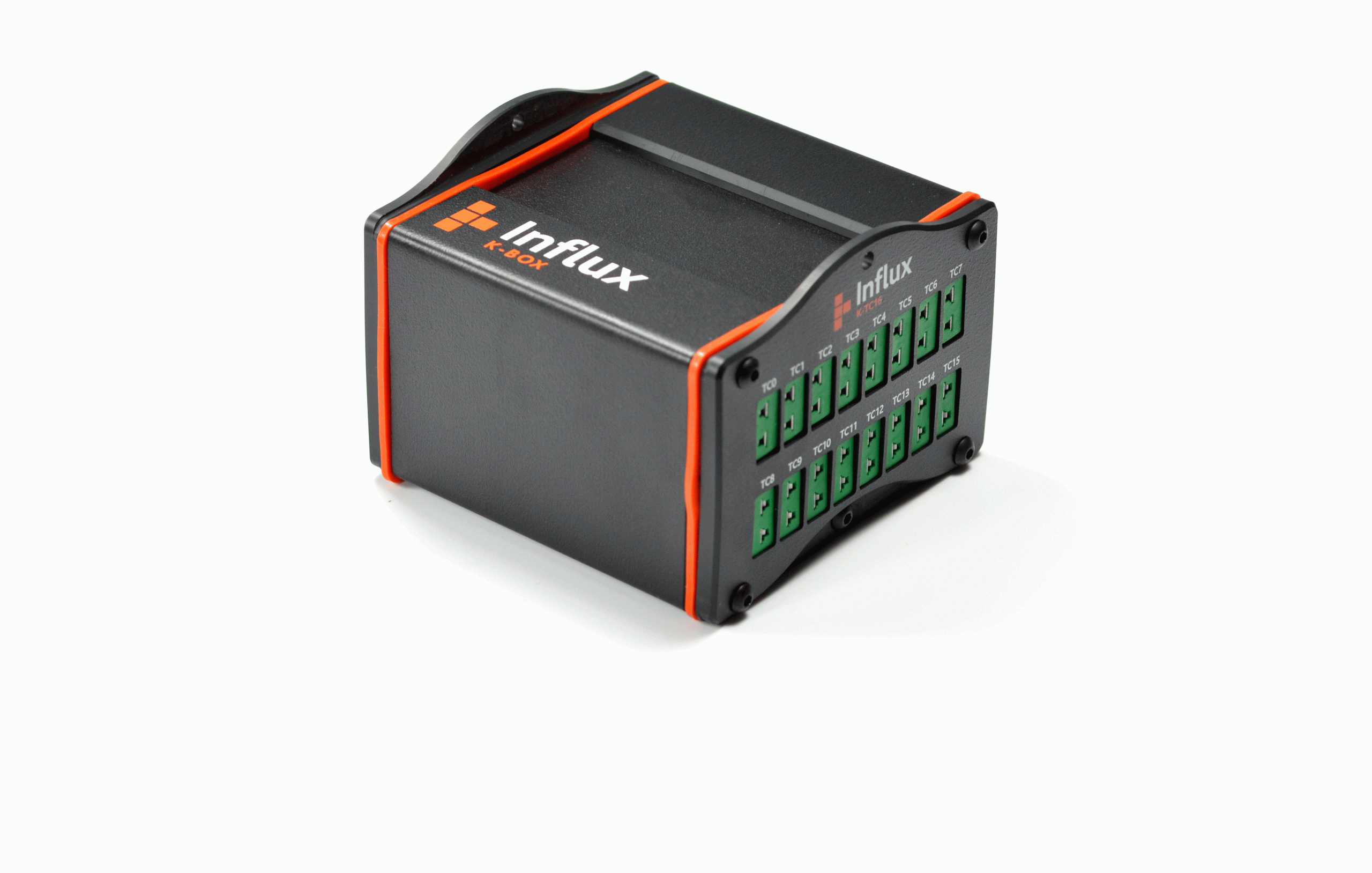

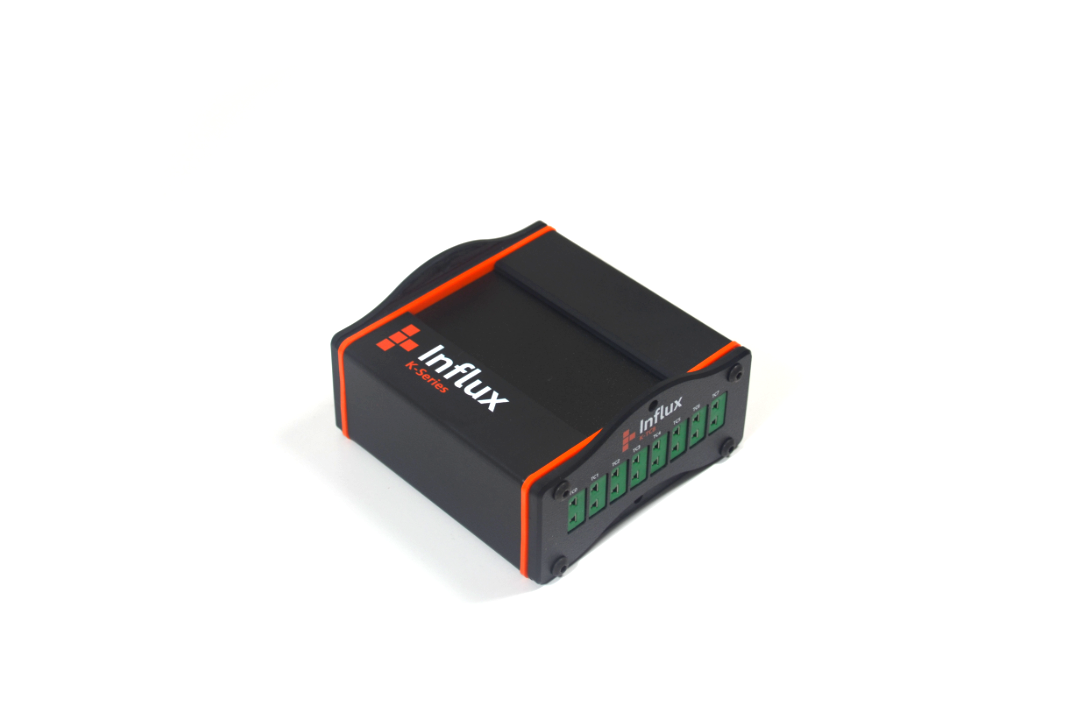

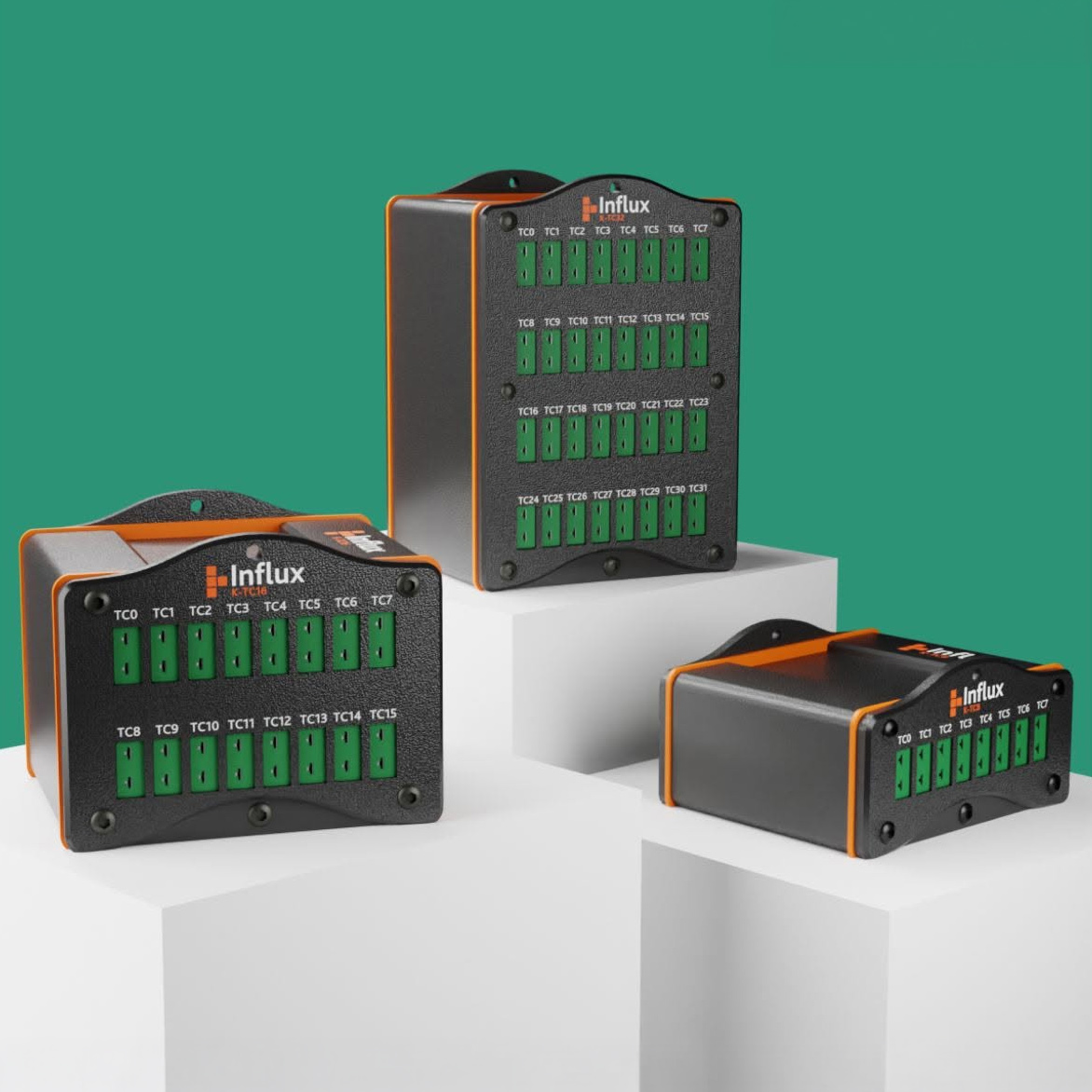

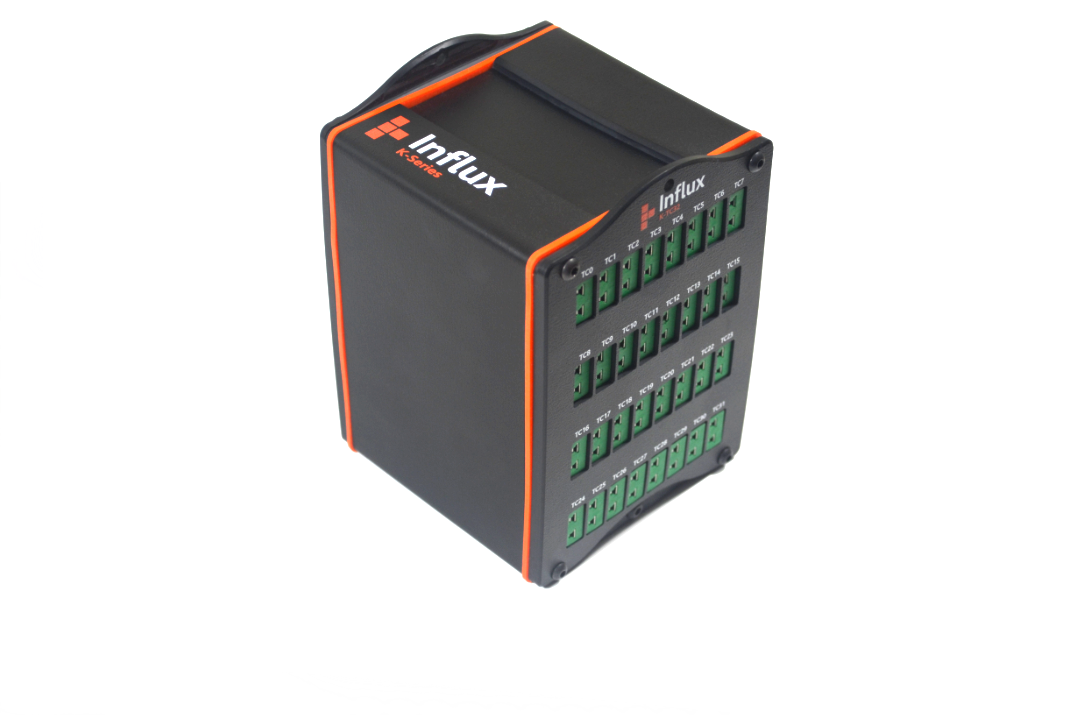

K-TC unit is available with 8,16, or 32 channels; these can be stacked, and daisy chained to meet your requirements. Capture data from multiple thermocouples with the K-TC, limited only by the bandwidth of the CAN interface.
K-TC 2.0 modules belong to the Influx K-series instrumentation range for CAN applications. The stackable K-TC 2.0 is ideal for those applications that require a large number of thermocouples, for example vehicle durability, winter and summer testing. The K-TC 2.0 modules CAN Bus settings, calibration and sampling rates are all easily configurable and stored in the K-TC 2.0 module even when not powered. The input calibration and set-up of the K-TC 2.0 module is easily configurable via Influx K-Cal software, a freely distributable Windows pc application. Logs and stores data to an integrated memory card, independently (without the support of any other data logger).
K-TC range with three seamless modes
The K-TC has galvanic isolation across USB, CAN, Power, and TC boards to ensure the protection of your devices. Supporting thermocouples type (K, J, & T). Experience the versatility and reliability of our K-TC range with three seamless modes; Standalone data logging, Temperature to CAN and USB to PC for Live data
Diving Into The Three Modes Of The K-TC
Mode 1
Standalone Data Logging:
Say goodbye to the need for a PC! Store your thermocouple data directly within the device using the eMMC storage.
This standalone data-logging mode ensures user-friendliness and efficiency, enabling extended logging periods without requiring human interaction.
This capability can be used simultaneously with Mode 2
Mode 2
Mode 3
Isolation
Galvanic isolations in an electrical circuit function to create electrical separation between two or more interconnected circuits. The galvanic isolations allow communication and transfer power, they prevent the flow of electric current between the two circuits and protect the sensitive components or devices in the other nearby/connected circuits.
Galvanic isolation blocks direct current flow between the thermocouple and the measurement system. It isolates the low-voltage thermocouple signals from other electrical components and potential noise sources, protecting equipment and contributing to a safer work environment.
The galvanic isolation inside the K-TC device not only keeps itself safe but also ensures accuracy in the measurement of temperature values. The CAN-bus and USB interfaces are also galvanically isolated, therefore reducing the risk of damage to connected devices and enhancing overall system reliability.
Working With Industrial Temperatures
Enhance Your CAN Bus with Temperature Sensor Data from Thermocouples – Perfect for ECU and CAN Hardware Integration!
- Supports extreme climatic testing scenarios from -40°C to +85°C
- Cold Junction Compensation – enhanced response to Temperature Shifts from (-)200°C to (+)1200°C
- Fortified galvanic isolation safeguarding your measurements and the devices.
- Galvanic isolations across USB, CAN, power, and TC boards ensure protection.
- Improve the actual temperature measurement quality to 0.001°C, with an accuracy of ±1°C
Stackable Enclosure
The K-TC is a flexible device that can be used with any other CAN logger. The K-TC enclosure is designed to be stacked with other Influx devices.
- Stackable with Rebel LT and other K-TCs and K-Series devices
- Create a modular custom rig for your project
- Crafted to meet the demanding standards of engineers
- Enables multiple thermocouples
