CANopen Configuration Tool

Buy CANopen Configuration Tool online!

7 480 SEKExcl. VAT

Add to Cart

Electronic delivery 1-2 working days

Quotations and more info contact info@tkesweden.se

Product Specification

  • Specially designed for efficient production line and service operations
  • Simple automatic, semi-automatic and manual operation modes
  • Can be used as a slave of production management software

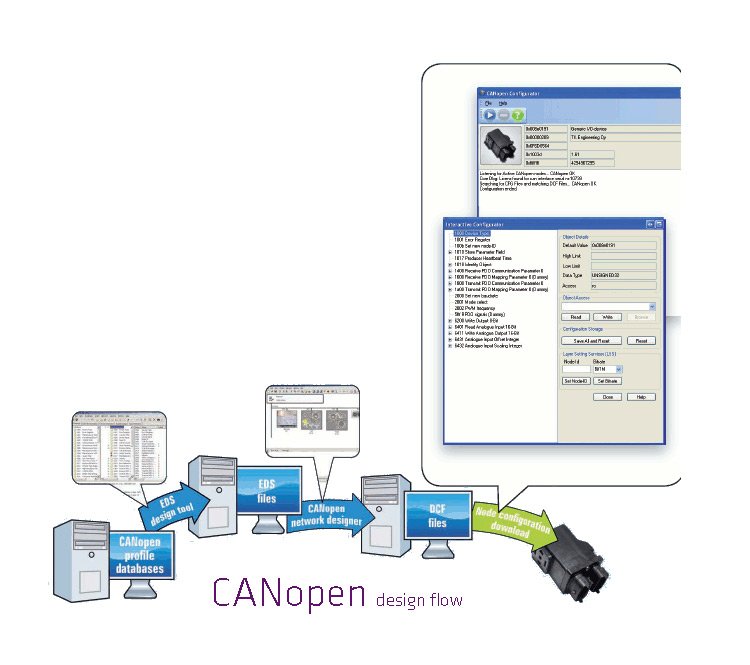

  • Supports standardized CANopen design flow, design files (EDS and DCF) and services (SDO and LSS)
  • Easy to setup and to use
  • Supports CAN interfaces from Kvaser, PEAK and Vector (support for other interfaces on request)

Supports Windows operating system

  • Windows 10

Interested in CANopen Configuration Tool?

Contact info@tkesweden.se for more info.

Downloads

  • Datasheet
  • Getting started guide
  • How to get CANopen Configuration Tool to work with Peak USB-CAN interfaces
  • CANopen ConfTool EULA
  • Download CANopen ConfTool 2.1.6

CANopen Configuration Tool

Product Code: TKE ConfTool

7 480,00 SEK

Advanced but easy-to-use tool for configuring CANopen nodes

The CANopen Configuration Tool is an advanced yet user-friendly solution for configuring CANopen nodes, now enhanced with multi-node interactive capabilities. It supports both automatic and interactive configuration modes, making it ideal for R&D, production, and service environments. Designed for Production and Maintenance personnel, the tool streamlines development, production, and service tasks, offering compatibility with Windows 11, ensuring a faster and more efficient configuration process.

Supports Kvaser, PEAK and Vector USB-CAN interfaces

This Configuration tool supports various CAN-interfaces from manufacturers Kvaser, PEAK and Vector. It provides easy configuration for any commercially available CANopen node. CANopen Configuration tool runs on PC as well as on a PDA.

Supports XML, DCF and EDS files

CANopen Configuration tool helps the user to configure nodes for the correct target position in the system by using XML configuration files together with DCF and EDS files. The logging function of the program creates a log file of the messages sent during the complete configuration.

Supports multiple configuration modes

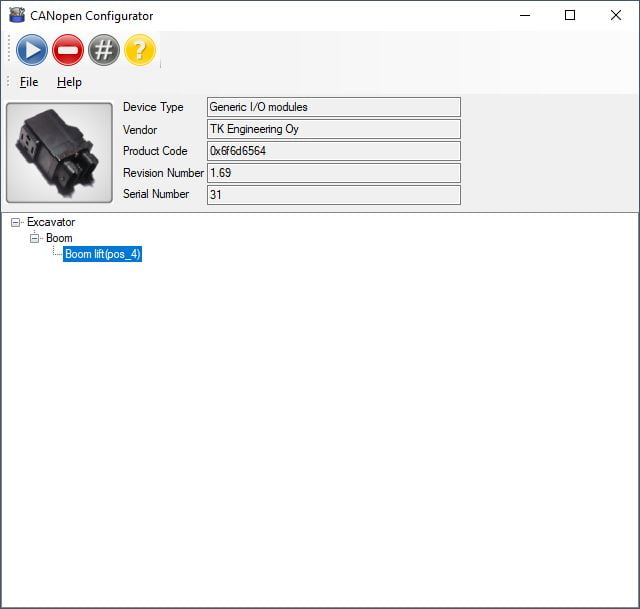

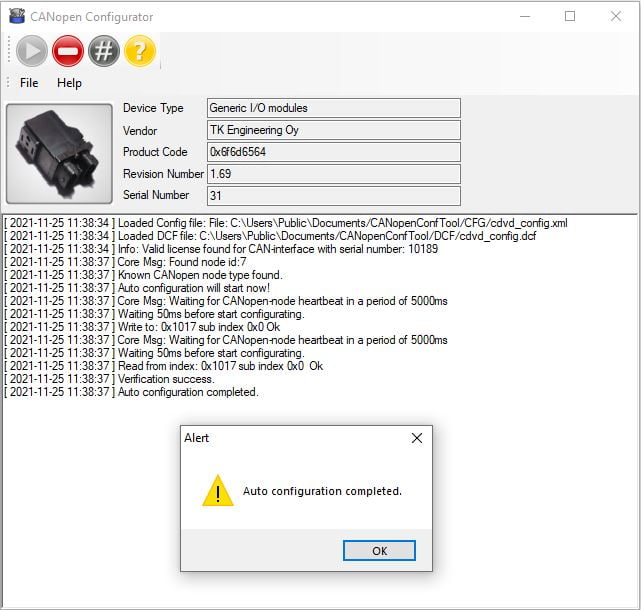

  1. Position mode – Automatically or semi-automatically configure the node for its target position in CANopen system

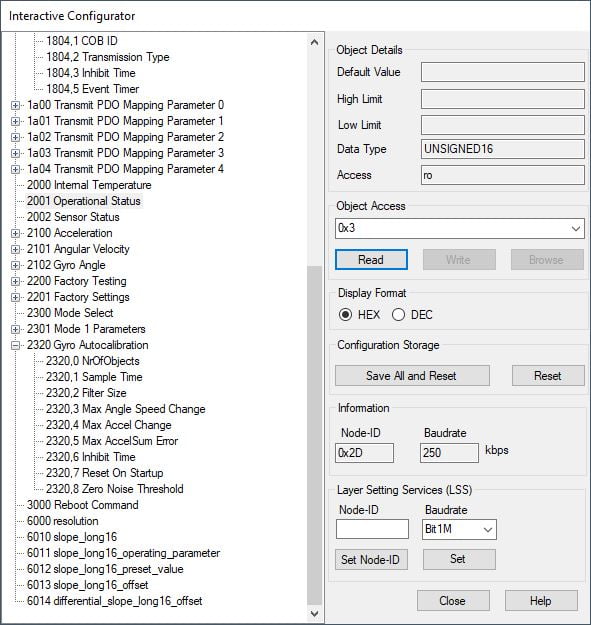

  2. Interactive mode – Read- and write- access of the Object Dictionary of the CANopen node. Supports NMT, LSS, store/restore paramters etc. CANopen services
  3. Custom GUI – Supports by default configuring TKE CAN-switch TCS-10 and DNV approved marine CAN-switch WCS-10.  Supports other CANopen device on request

Download free 20-day trial of the full version CANopen Configuration Tool

Try a full, unrestricted version of CANopen Configuration tool for up to 20-days and make sure it is exactly what you need. Please follow this getting started guide or watch below video to find the serial number of your interface. Download the Configuration Tool from download section.

Get free 20-day trial license, please send the hardware serial number and brand name to:

info@tkesweden.se

Paid full version includes also one year of free support services and version upgrades. Delivered electronically to anywhere in the world.

Introduction CANopen Conftool

How to use different configuration modes in CANopen Configuration Tool

Drivers for the supported CAN interfaces:

It works with your current Kvaser, Vector or Peak hardware.  Check that you have the driver of your CAN hardware installed on your PC. Download the driver from manufacturer’s website and install the driver

Kvaser Driver
Vector Driver
Peak Driver

SKU: TKE ConfTool Categories: Software, TK Engineering Tags: CANopen, Configuration, DCF, EDS, LSS
