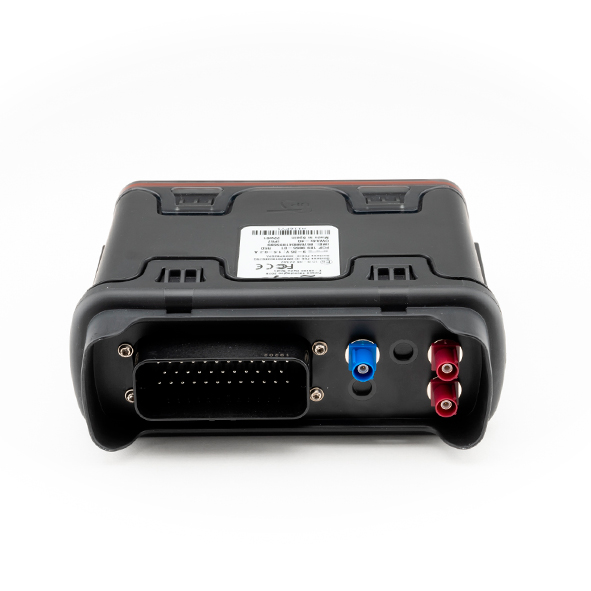

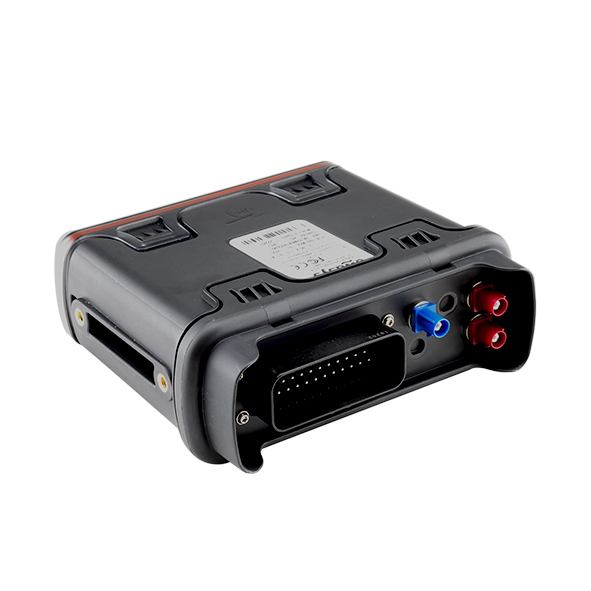

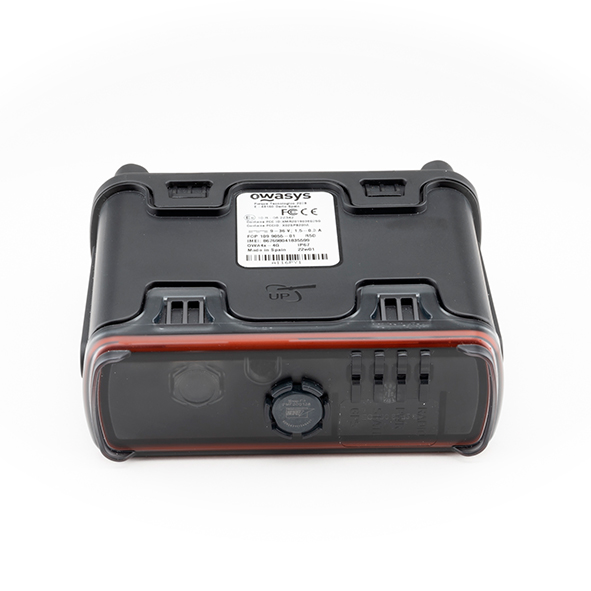

Owa4X Rugged Linux IoT Gateway for Telematics and Edge Computing
Owa4X is a rugged Linux-based IoT gateway designed for telematics, edge computing, and remote monitoring in demanding industrial and mobile environments. Powered by an ARM Cortex-A8 processor and equipped with LTE connectivity, CAN interfaces, GNSS, and configurable I/O, the owa4X enables reliable data acquisition and machine-to-cloud communication.
Designed for off-highway vehicles, industrial machinery, fleet management, and Industry 4.0 applications, the owa4X combines flexible Linux programmability with robust IP67 protection for reliable operation in harsh environments.
Key Features
- Linux-Based IoT Gateway
Open Linux environment with support for custom applications and edge computing. - Up to 4 × CAN Interfaces
Supports CAN and CAN FD communication for vehicle and machine connectivity. - Global LTE Connectivity
Integrated LTE Cat 4 modem with worldwide cellular support for remote communication. - Integrated GNSS & Motion Sensors
Supports GPS, GLONASS, Galileo, and BeiDou with programmable accelerometer, gyroscope, and magnetometer. - Flexible Industrial Interfaces
Includes RS232, Ethernet, USB, analog inputs, digital I/O, and MicroSD expansion. - Industrial Ruggedness
IP67 enclosure with wide operating temperature range for demanding mobile applications.
Funtionality
Owa4X operates as an intelligent Linux-based edge gateway for collecting, processing, and transmitting data from vehicles, machines, sensors, and industrial systems. It connects directly to CAN buses, wireless networks, GNSS systems, and external I/O devices, enabling real-time monitoring, remote diagnostics, telematics, and machine-to-cloud communication.
Using its open Linux environment, the owa4X allows developers to create custom edge applications in languages such as C and Python. The gateway can process data locally and send only relevant information to cloud platforms or control centers, reducing bandwidth usage and enabling faster system response times.
The device supports advanced telematics and fleet management functions including vehicle tracking, operating data recording, remote monitoring, and digital tachograph downloads. Integrated GNSS, CAN connectivity, digital and analog I/O, and optional dead reckoning features make it suitable for demanding industrial and off-highway applications.
Its rugged IP67 enclosure, low-power modes, and optional backup battery support ensure reliable long-term operation in harsh environments such as construction machinery, mining equipment, agriculture, and transportation systems.
Typical Applications
- Fleet management and telematics
- Construction and mining equipment
- Agriculture and forestry machinery
- Industrial remote monitoring
- Predictive maintenance systems
- Industry 4.0 and edge computing projects
