Powerful next generation programmable telematics unit

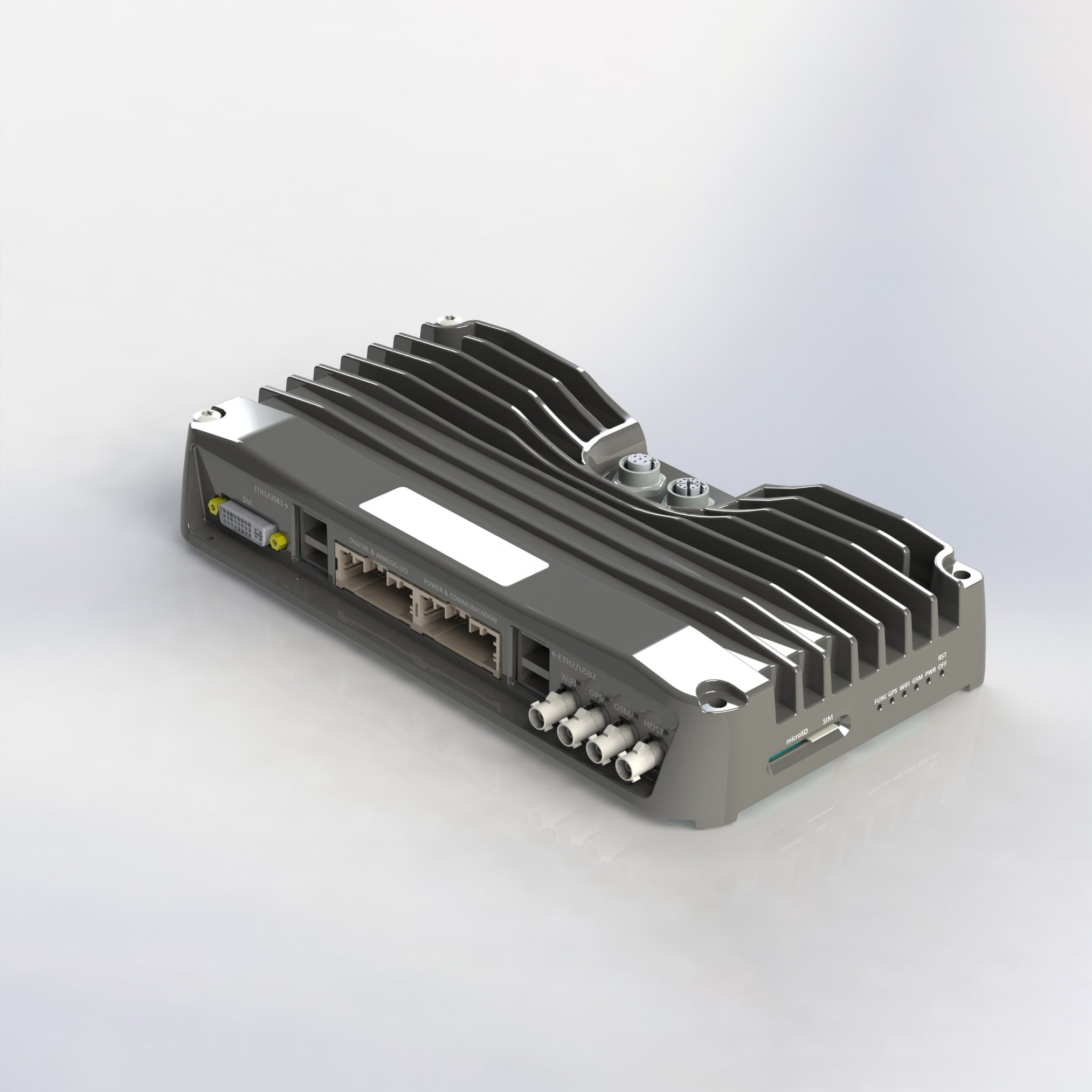

MX-V is a Linux based, high performance, and scalable industrial computer providing cloud connectivity for usage across the globe. Deploying technologies such as GPS/GLONASS, GPRS, 3G, LTE, Wi-Fi and Bluetooth. Designed for harsh automotive environments with a rich list of automotive communication interfaces.
The MX-V platform runs a custom-built GNU/Linux operating system. This is a scalable industrial computer providing cloud connectivity for usage across the globe, deploying technologies such as GPS/GLONASS, GPRS, 3G, LTE, Wi-Fi, and Bluetooth. It is designed with a rich list of automotive communication interfaces, but also includes audio and hardware-accelerated video.
The operating system runs on top of a modern Linux kernel (version 5.15) which is started by the U-Boot bootloader. GPU access is handled by the free Etnaviv DRM driver. Everything is installed on the onboard eMMC memory and you can begin experimenting by logging in through a secure shell (SSH).
MX-V designed applications
- Fleet Management
- Traffic Management
- Remote Data Management
- Remote Diagnostics
- Car Sharing
Custom applications
TKE can help to integrate telematics successfully into customers’ systems and provide solutions according to requests.
Technical information
Host MX-5 PT
|
Customized
|
|
| Core CPU | i.MX6 DualPlus | i.MX6 DualPlus or QuadPlus(2xCPU@852MHz to1GHZ or 4xCPU@852MHz to1GHZ), with or without Graphics |
| RAM (DDR3L) | 512MB | 512MB, up to 2GB optional |
| Program Storage | 4GB eMMC | 4GB to 64GB eMMC |
| Internal Storage | No,(eMMC) | – |
| External Storage | uSD Card | With or without SDcard holder |

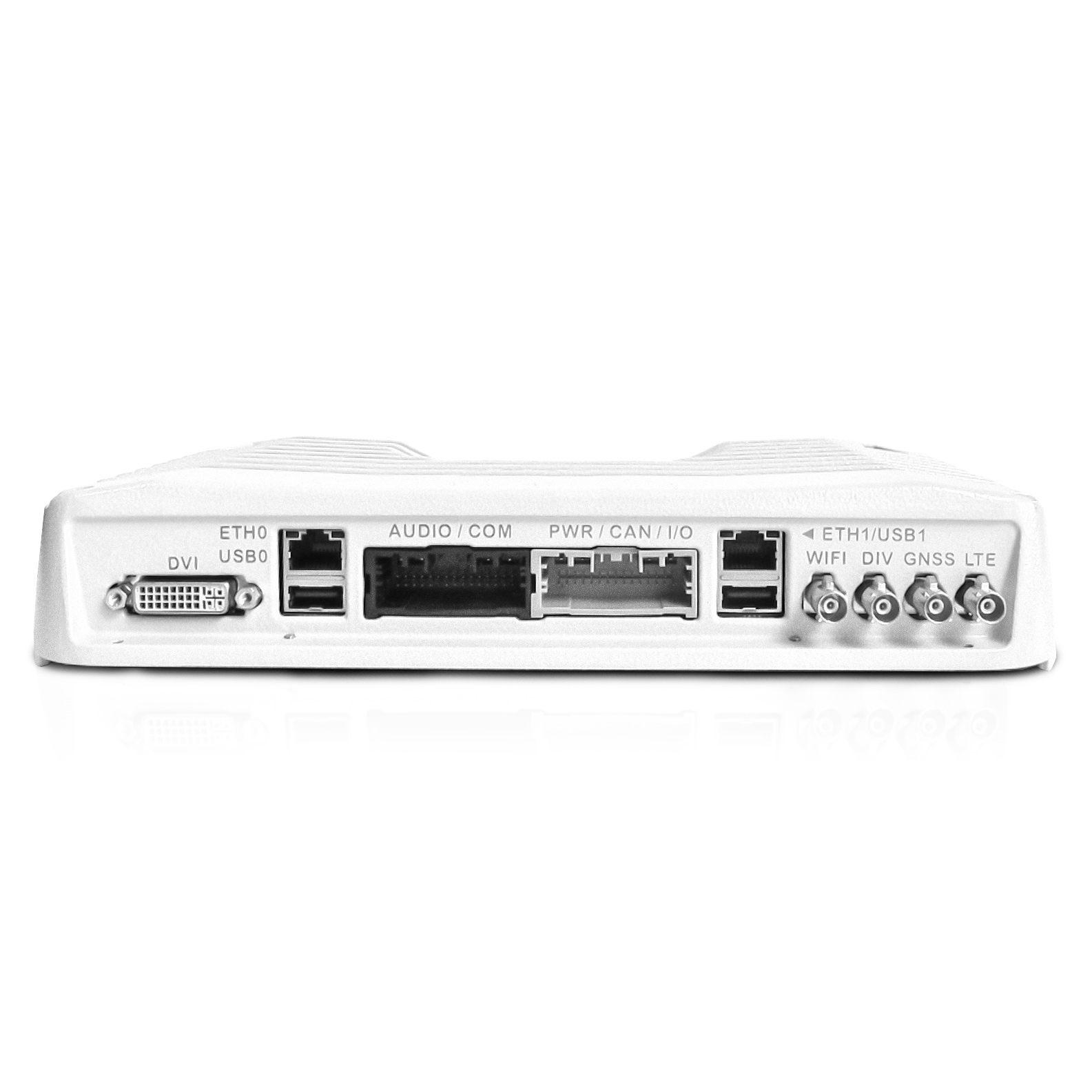

| Display Ports | DVI-I (HDMI + VGA) | Optional |
| Internal Display | No | – |
| WiFi | 802.11 b/g/n/ac+BT, external antenna | 802.11 b/g/n/ac+BT, external antenna |
| Bluetooth | Yes (uses same antenna as Wi-Fi) | Yes (uses same antenna as Wi-Fi) |
| Modem | EG-25G VOICE, two external (diversity) antennas | With or without modem |
| GPS | EG25-G built in, external antenna | GPS module with dead reckoning |
| Ethernet | 1xGbps, 1x100Mbps | 1xGbps, 1x100Mbps |
| USB | 1xUSB OTG, 1xUSB Host | 1xUSB OTG, 1xUSB Host |
| CAN | 3xCAN | 2 to 3 CAN |
| Serial Interfaces | 1 RS232 /w CTS/RTS 2 RS232 (no handshake) 1 RS485, 1 J1708 | – |
| Digital Out | 10xSink/Source, 200mA typical | – |
| Digital In | 8x “Analog 12 bit” | – |
| Analog Input | 5x 32 Volt, 12 bit supports 4-20mA sensor output | – |
| Ignition Signal | External input (6-32VDC) | External input (6-32VDC) |
| Tachometer | 1x 24V, up to 20 kHZ input frequence adjustable trigger level | – |
| Accelerometer | Yes 1x | – |

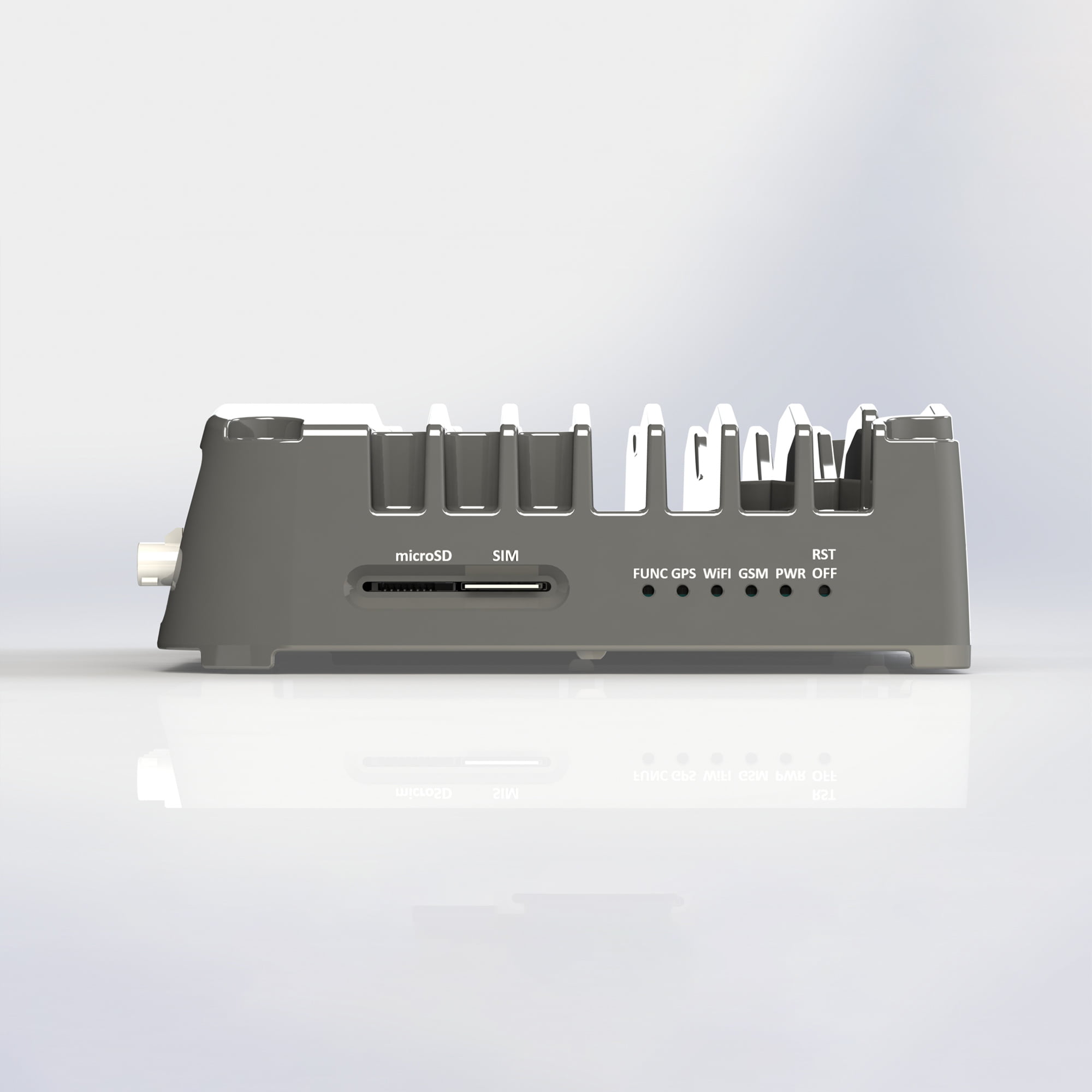

| LED | 1 Power(RG), 4 custom configured (red and green), (called FUNC, Wi-Fi, GPS, MODEM) | – |
