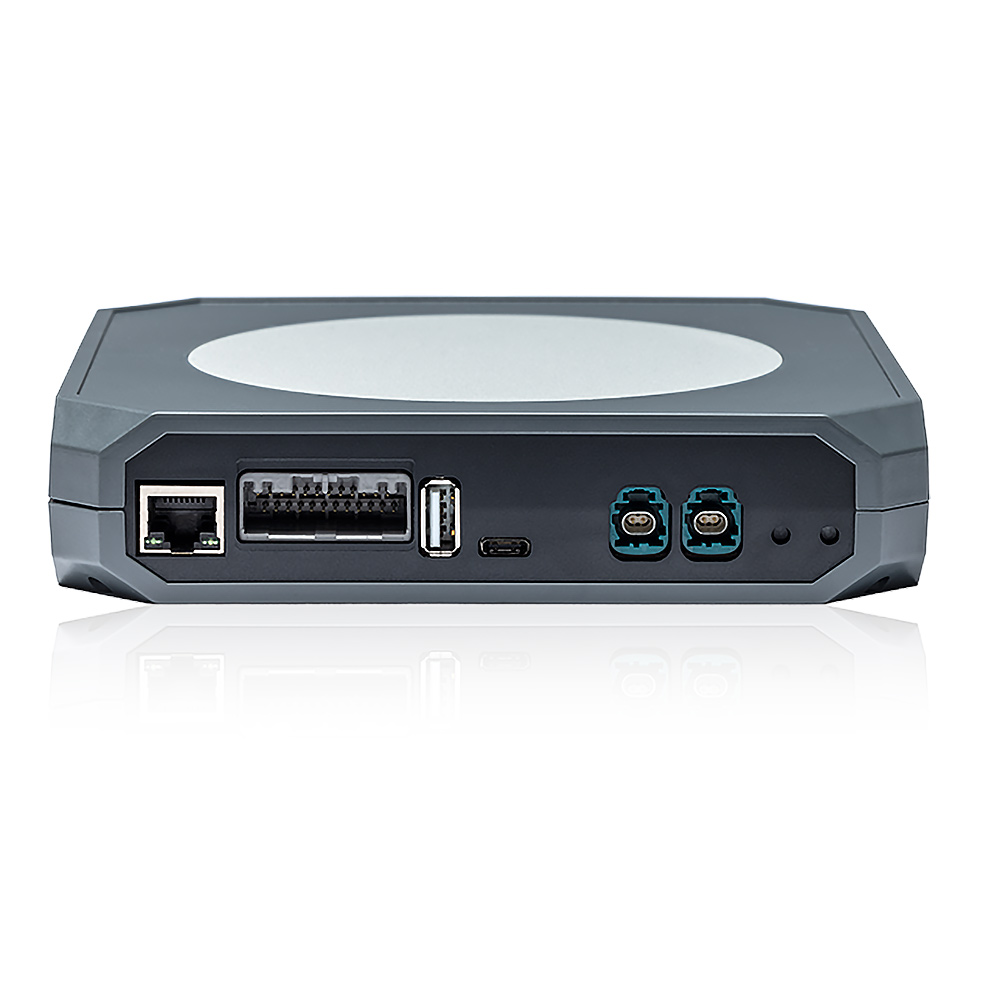

Introducing Host Monitor X (HMX)
A new generation of Linux-based industrial computers suitable for vehicle telematics and machine learning. An open platform powered by the popular and proven NXP i.MX 8M Plus, a vast range of communication interfaces such as CAN-FD, Ethernet T1, 4G/LTE or 5G, WiFi, GPS and a modern GNU/Linux software stack. Prepared to collect your data
Linux platform and wake up on signal inputs
HMX provide a complete GNU/Linux platform with driver support for all the hardware. The built-in co-processor can wake up the main CPU upon receiving CAN, RTC and digital signals. Modern Yocto distribution distribution built on top of the most recent LTS release (Kirkstone) of the Yocto Project.
Custom applications
TKE can help to integrate telematics successfully into customers’ systems and provide solutions according to requests.
Technical information
| CPU | 64 bit Quad-core ARM Cortex-A53 with 800MHz real-time Cortex-M7 co-processor |
| Accelerometer | 3-axis |
| RAM (DDR3L) | 4GB DDR4 |
| Buzzer | Internal and power for external |
| CAN | 6 CAN FD |
| Digital Inputs | 6 |
| Digital Outputs | Multiple programmable ports |
| Ethernet | 2x 100/1000 Base-T1(Rosenberger), 2x 100-BaseTx (RJ45 and MX34) |
| External Logging | uSD Card |
| GPS | Included in modem, external antenna |
| Housing | Aluminium/plastic |
| Start Signal | KL15 External input, 2.5-32V (5 inputs) |
| Internal Storage | 64 GB eMMC |
| LEDs | 5 red/green/yellow combinations, software controlled |
| Modem | 5G or 4G, M2 connector |
| Nominal Voltage | 12-24V |
| Operating Temperature | -40 to +65°C |
| Default Operating System | Yocto Kirkstone, Linux Kernel 6.1 |
| Protection | IP30 |
| Size without connectors | 164x164x36mm |
