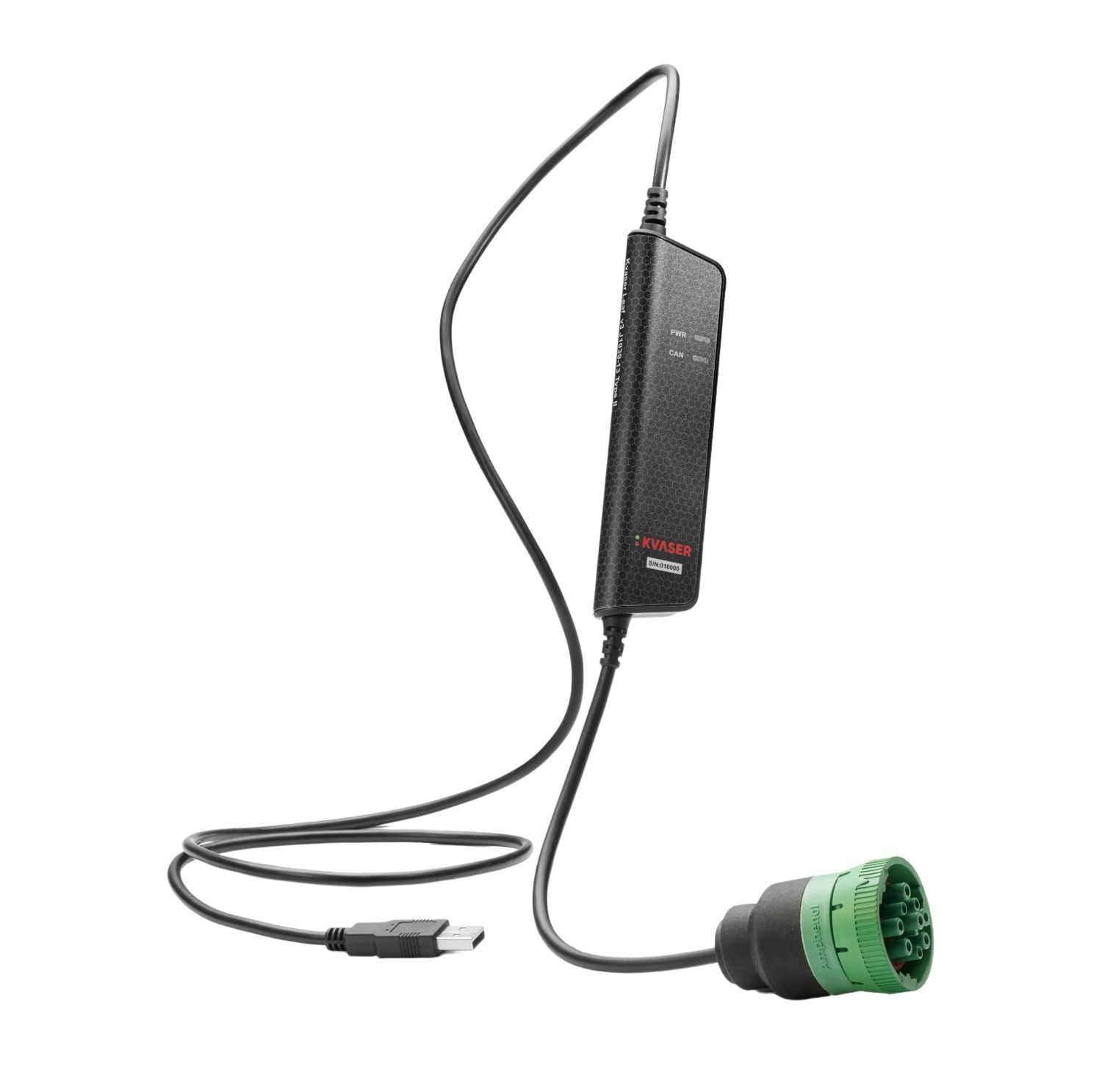

Kvaser Leaf v3 J1939-13 robust and versatile interface with 9-pin J1939-13 connector for monitoring and managing vehicle CAN networks
Kvaser Leaf v3 J1939-13 is a reliable tool for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data. It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.
The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.
Major Features
- USB 2.0 CAN interface
- Powered through the USB Type-A connector
- Compact 9-pin J1939-13 Type II connector with extra strong strain relief
- Supports CAN FD, up to 8 Mbit/s
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Supports silent mode for analysis tools listen to the bus without interfering
- 20 000 msg/s, each timestamped with a resolution of 50 μs
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
- Support for SocketCAN
- Supports simultaneous usage of multiple Kvaser interfaces
- Compatible with J1939, CANopen, NMEA 2000
Typical Applications
- CAN bus diagnostics and troubleshooting
- Embedded systems development
- Automotive and heavy-duty vehicle testing
- Industrial automation systems
- Data logging and analysis
