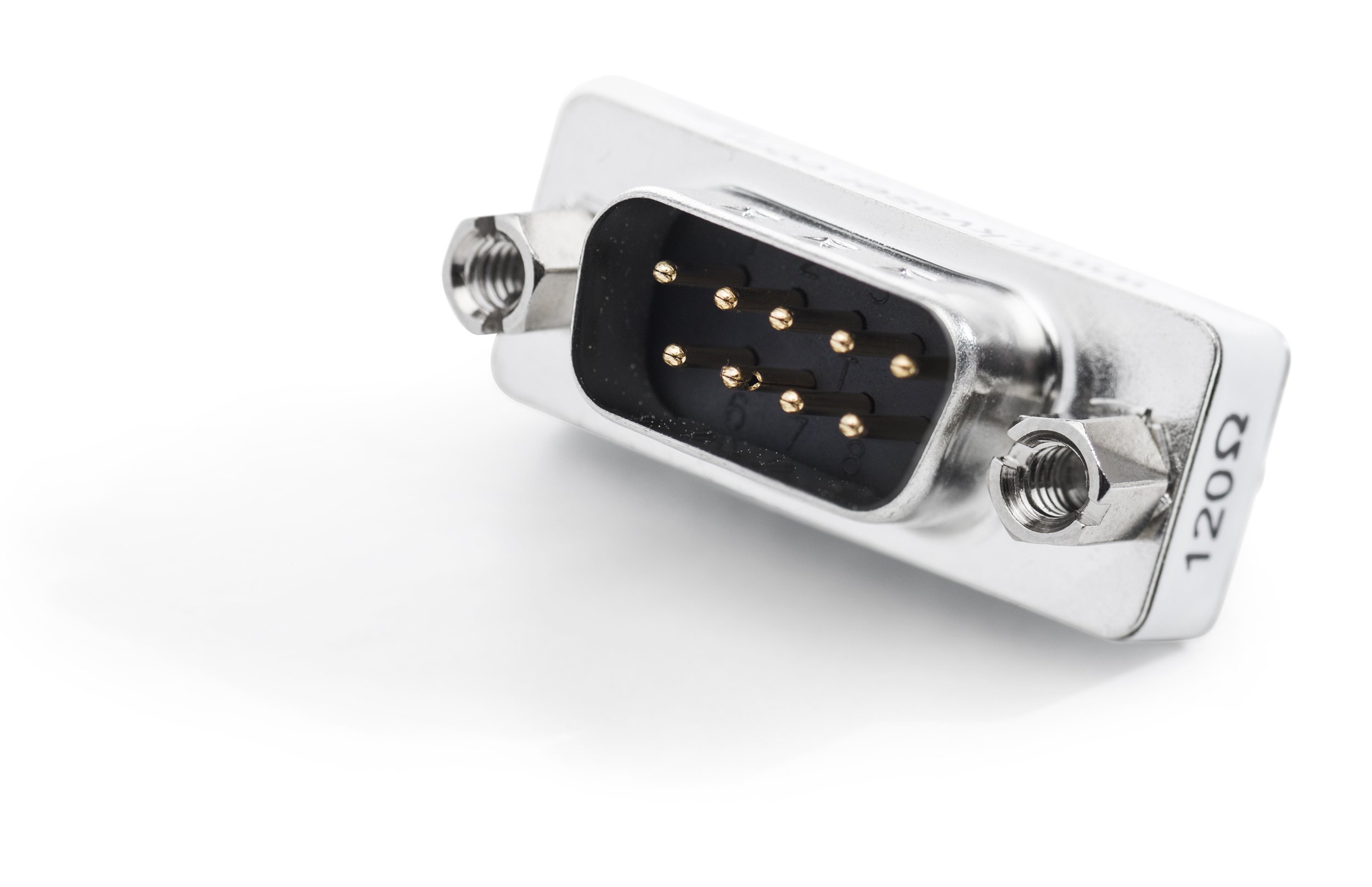

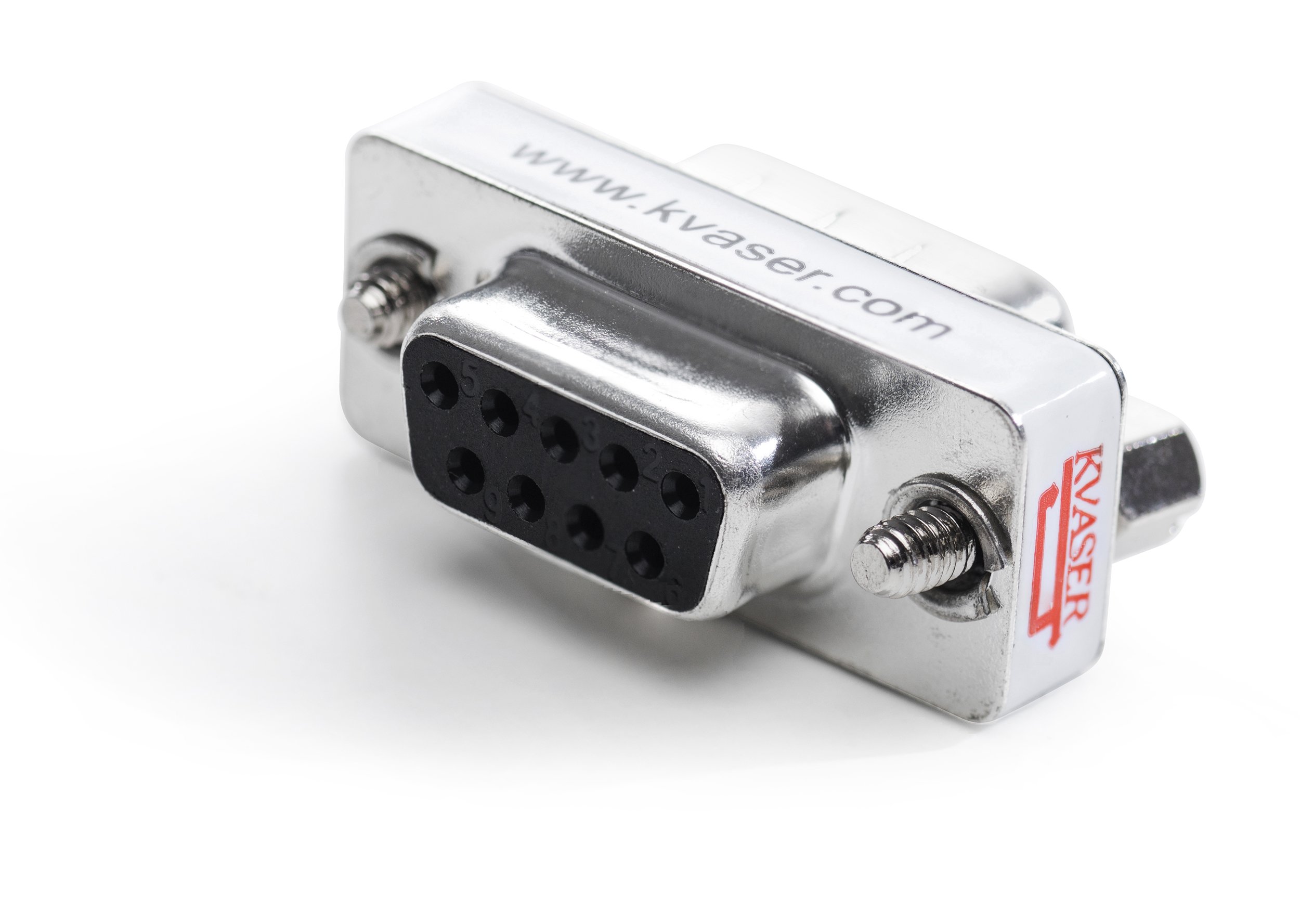

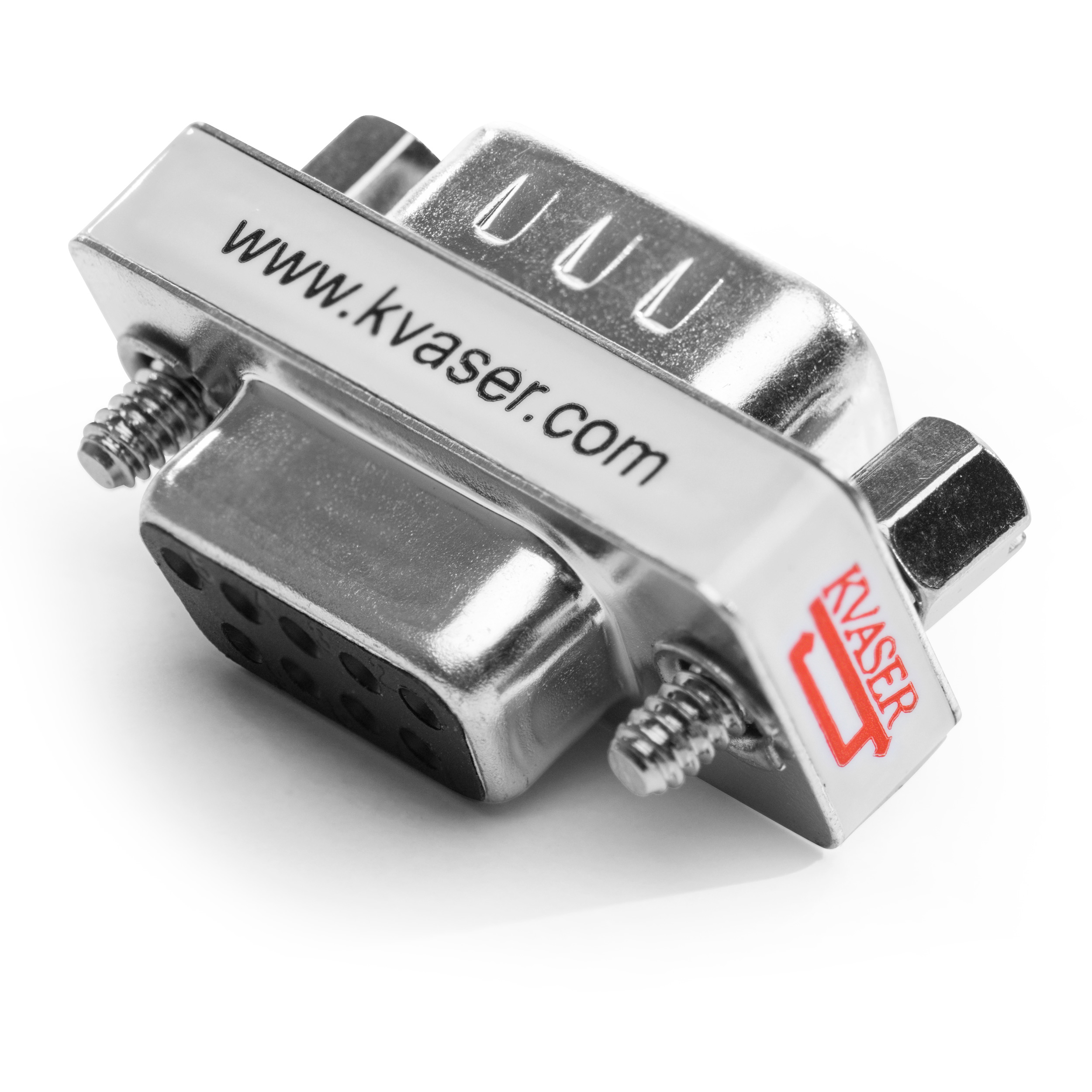

9-pin plug-to-socket D-Sub connector with termination
Kvaser D-sub 9 pin 120 Ohm termination adapter is a CAN adaptor with a 9-pin male D-Sub connector at one end and a 9-pin female D-Sub socket at the other. Between CAN High (pin 7) and CAN Low (pin 2) there is a built-in 120 Ohm CAN terminating resistor.
This adapter provides quick and easy termination to any Kvaser high-speed CAN product. The Kvaser CAN termination adapter is used when there is a need to terminate a CAN node without internal termination or when no CAN node is connected to the bus. The Kvaser D-sub 9 pin 120 Ohm termination adapter has a 9-pin D-Sub plug connector and a 9-pin D-Sub socket. A 120 ohm terminating resistor sits between pins 2 and 7
Major Features
- 9-pin D-Sub plug, 9-pin D-Sub socket
- Built-in 120 Ohm CAN terminating resistor
- CE & RoHS certified
