Kvaser T-Cannector v2 CAN bus hub with three sockets and one plug D-SUB9 connectors termination
Kvaser T-cannector v2 is a CAN bus hub with three sockets and one plug D-SUB9 connectors. Offering an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) it provides an affordable and safe way of terminating the CAN circuit when using Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.

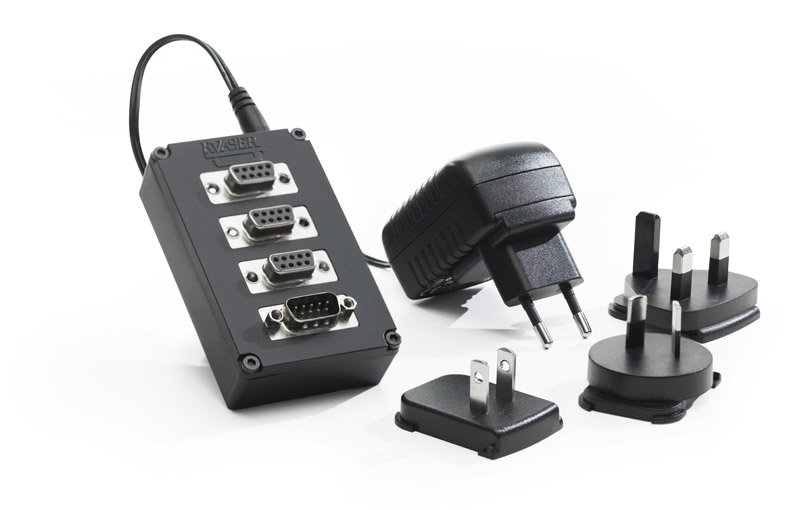

Kvaser T-cannector v2 is a CAN bus hub with three sockets and one plug D-SUB9 connectors. Used typically in application development scenarios, this offers an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) that provides an affordable and safe way of terminating the CAN circuit, as well as powering devices that take their power from the USB connection or the CAN network to which they are attached, such as Kvaser’s Blackbird and Memorator series. This device comes with a 12V power supply and EU, USA, UK and Chinese plugs.
Major Features

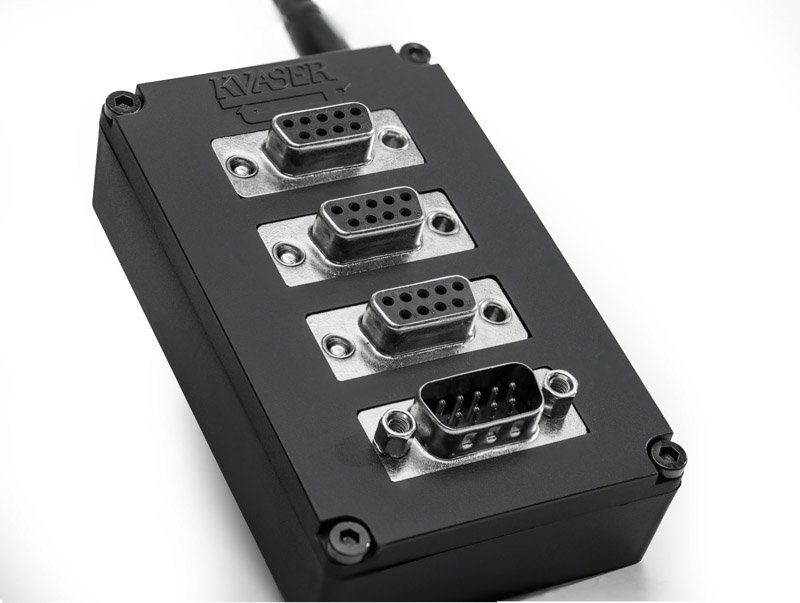

- Acts as a CAN bus hub with 3 socket and 1 plug D-SUB9 connectors
- Each DSUB9 has screws to secure the connection to the Kvaser CAN interface
- Adjustable termination via easy-to-use switch
- 12 V, 1 A power supply

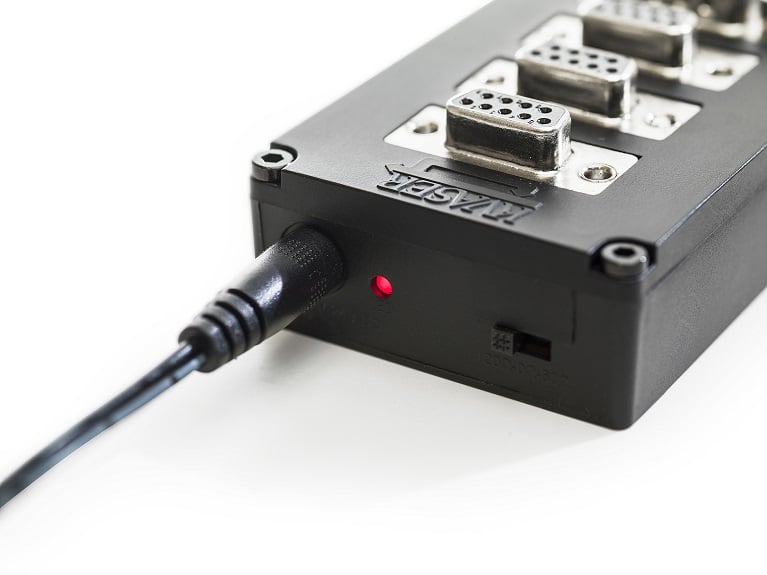

- LED to indicate power on
- Voltage range of 12 V-24 V DC
