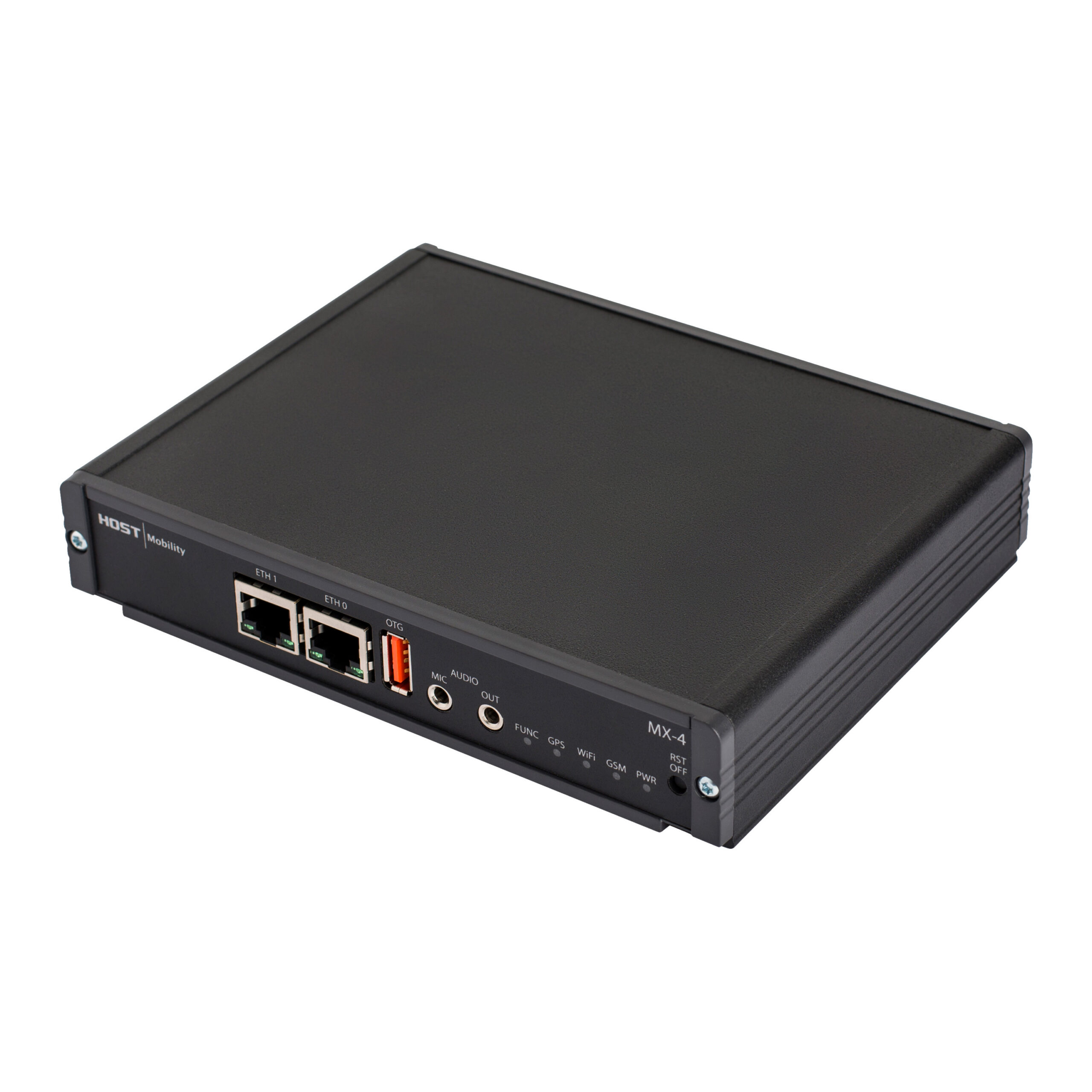

Host Mobility MX-4 T30
Product Code: HMP075/2
Host Mobility MX-4 T30 is powerful automotive graded programmable telematics unit
MX-4 T30, the most powerful unit in the MX-4 family which is equipped with multiple CAN- and LIN-interfaces, large RAM and Flash memories and a powerful Quad Core-processor. Unit’s several different communication interfaces allows usage of this unit in a large variation of possible applications. Linux operating system offers the opportunity to quickly and cost-effectively develop unique applications.
Logging functionality
The unit is equipped with a built-in memory card holder (µSD Card) so the user can also store collected data before transmission. If more memory capacity is needed also the USB-port available allows the user to connect USB memory sticks for this usage.
Custom applications
TKE can help to integrate telematics successfully into customers’ systems and provide solutions according to requests.
Images
Technical information
| CPU | ARM Cortex-A9 |
| CPU Frequency | Quad Core, 1.4 GHz |
| RAM | 1 GB DDR3 (32 bit) |
| Flash | 4 GB eMMC |
| Size | 127x166x32 mm |
| Weight | 456 g |
| IP | IP 30 |
| Temperature Rating | -40 – +70 °C |
| Connectors | D-Sub 15-pin male D-Sub 25-pin male |
| Audio | 2 x 3.5 mm stereo jack |
| USB Connectors | 2 x USB Type B (High Retention) |
| Antenna, GPS | FAKRA Code C (Blue) |
| Antenna, LTE/GPRS | FAKRA Code D (Bordeaux) |
| Antenna, WiFi | FAKRA Code I (Beige) |
| SIM-card connector | Internal |
| Internal watchdog | Yes |
| Boot loader | uBoot |
| OS | Linux 3.1.10 |
| Power Supply | 8 – 36 V |
| GSM/GPRS/Edge (Fallback) | 900/1800MHz |
| LTE | 800 (Bd20) / 900 (Bd8) / 1800 (Bd3) / 2100 (Bd1) / 2600MHz (Bd7) |
| WiFi | 802.11 b/g/n |
| GNSS-receiver | GPS+GLONASS |
| Ext. startsignal | Yes |
| Int. startswitch | Yes |
| Analogue Input | 2 x 0-32 V |
| Digital Input | 6 |
| Digital Output | 6 |
| Pulse Counter | 1 |
| Accelerometer | Yes |
| μSD-Card | Yes |
| Ethernet | 2 x 10/100 Mbit/s |
| CAN | 6 x CAN 2.0 B |
| USB Host | 1 x 2.0 Hi-Speed |
| LIN | 2 |
| 5V Out (500mA max) | 1 |
| CPU Audio | Yes |
| Internal battery | Optional |
| Super Capacitor | Yes |
| LED | 5 x biLED |
| Buzzer | Yes |
| Current Consumption | 160 mA – 400 mA @ 24 V |
| Current consumption, sleep (typical) | 24 mA @ 24 V |
