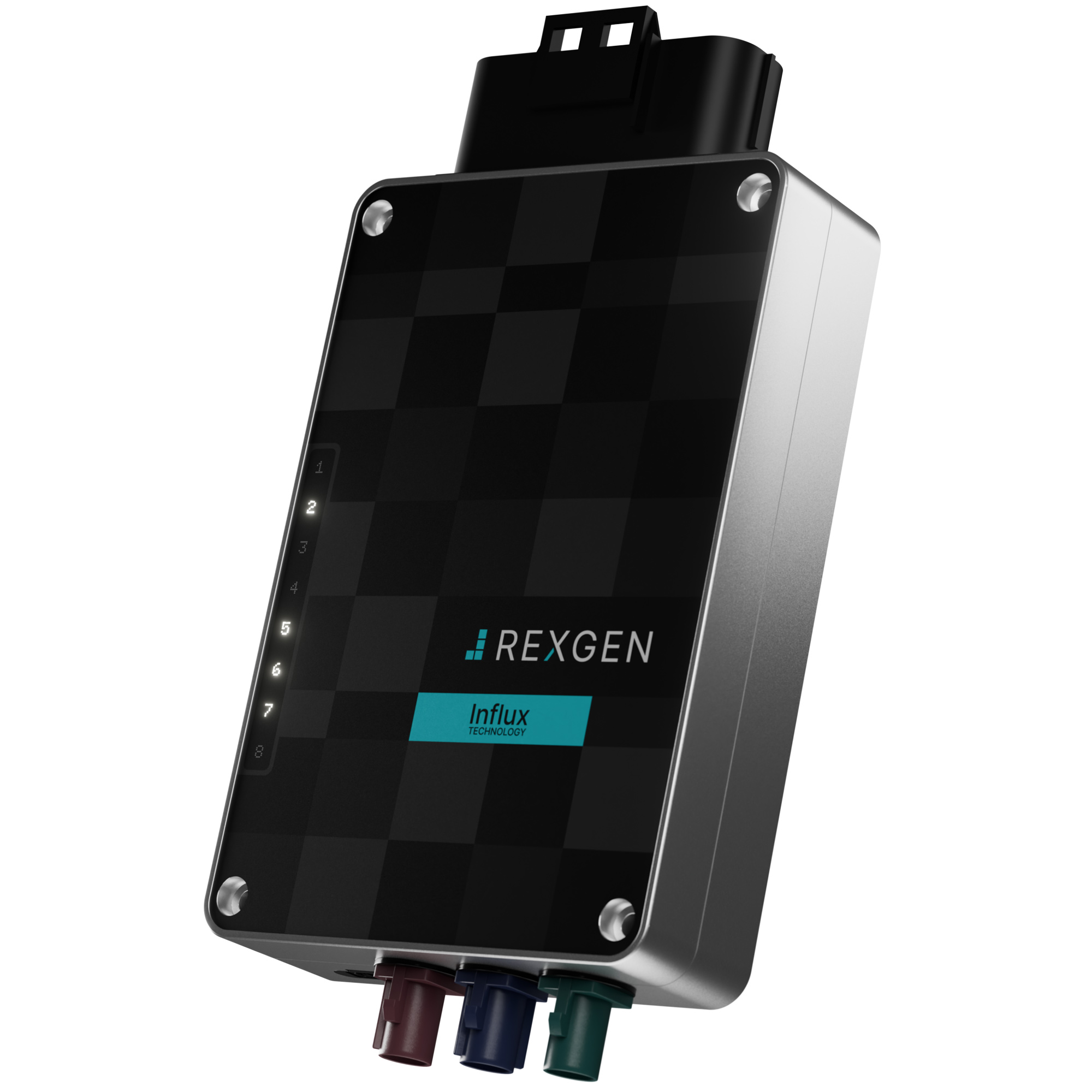

ReXgen Pro 4xCAN Advanced CAN/CAN FD Data Logger with LTE Connectivity
ReXgen Pro 4xCAN is a professional-grade CAN/CAN FD data logger designed for OEMs, system integrators, and fleet applications that require secure, reliable, and real-time data acquisition. With advanced connectivity, edge computing capabilities, and rugged industrial design, it is built for demanding vehicle and machine environments.
The device supports up to four CAN/CAN FD channels, LTE connectivity, GNSS positioning, integrated IMU sensors, and onboard storage, enabling both local and cloud-based diagnostics, monitoring, and data logging. Ideal for OEMs, fleet operators, and engineers who need a secure and scalable CAN/CAN FD data logging platform with remote connectivity, advanced diagnostics, and real-time cloud integration.
- Advanced Multi-Network Data Logging
Supports up to 4 × CAN/CAN FD channels with support for UDS, XCP, J1939, OBD, and optional LIN interfaces, making it ideal for advanced vehicle diagnostics, ECU development, and fleet applications. - Real-Time Connectivity & Edge Computing
Integrated LTE CAT 4, Wi-Fi, and Bluetooth connectivity combined with quad-core edge processing enable real-time diagnostics, remote monitoring, CAN-to-cloud integration, and live data streaming without physical connections. - Secure Rugged Platform for Harsh Environments
IP65-rated aluminum enclosure with secure boot, encrypted data transmission, 32 GB onboard storage, and UNECE R155 cybersecurity compliance ensures reliable operation in demanding industrial and automotive environments.
Key Features
- 4 × CAN/CAN FD Channels: Supports CAN FD data rates up to 8 Mbps
- Real-Time Connectivity: Integrated LTE CAT 4, Wi-Fi, and Bluetooth connectivity
- Advanced Protocol Support: Compatible with UDS, XCP, J1939, OBD, and LIN
- Integrated GNSS & IMU: Built-in GPS and 6-axis motion sensing for vehicle dynamics and positioning
- High-Speed Logging: 32 GB onboard eMMC storage with simultaneous live streaming and logging
- Secure Platform: Secure boot and encrypted data transmission with UNECE R155 compliance
- Trigger-Based Logging: Logging based on CAN IDs, signals, and digital inputs
- Rugged Industrial Design: IP65-rated aluminum enclosure for harsh environments
Functionality
ReXgen Pro captures, processes, and stores CAN/CAN FD and vehicle data in real time while simultaneously enabling remote access through LTE, Wi-Fi, or Bluetooth connectivity. It supports edge computing applications and CAN-to-cloud integration, allowing users to access diagnostic and operational data remotely without physical connections.
The logger supports advanced automotive protocols including UDS and XCP, enabling ECU diagnostics, calibration, flash programming, and high-speed data acquisition. Data can be stored locally in ASAM MDF format and exported to CSV or MATLAB formats for further analysis.
Integrated GNSS and IMU sensors provide precise positioning and motion tracking, making the device suitable for vehicle dynamics analysis, fleet monitoring, predictive maintenance, and validation testing.
