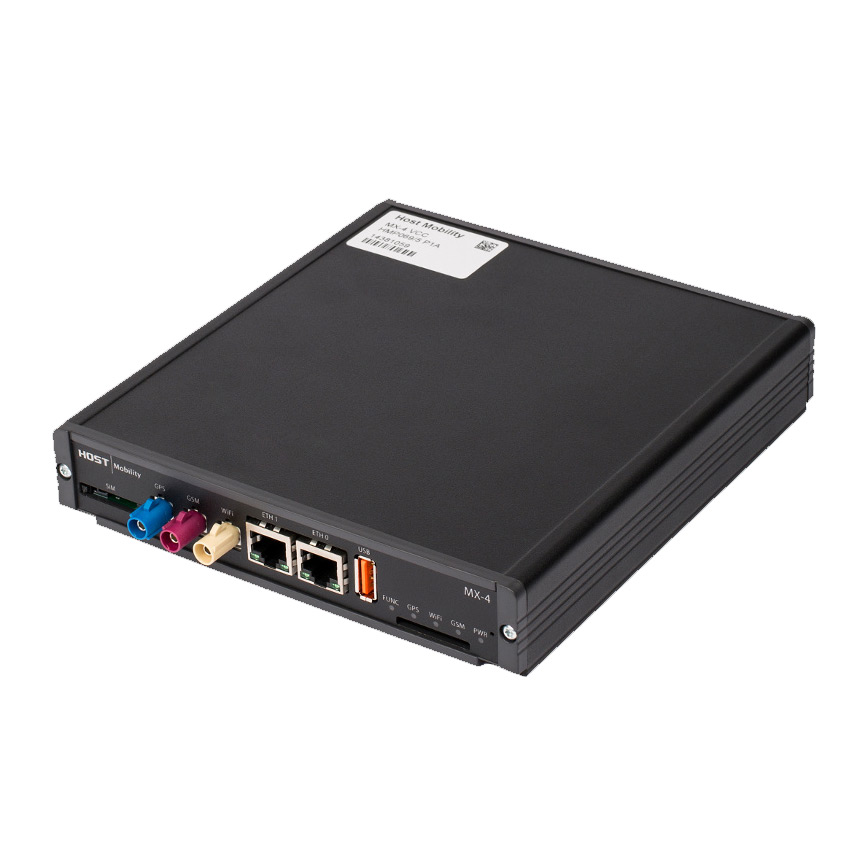

Host Mobility MX-4 PT WiFi E4G
Product Code: HMP069/6
Powerful versatile telematics unit
MX-4 PT WiFi E4G is a very advanced automotive graded programmable telematics computer that enables the development of stand-alone and specialized application logic. It is incredibly powerful in terms of internal computing performance and as it is equipped with various interfaces it suits almost every application.
Display functionality
Among other connections the MX-4 PT offers also a DVI-interface allowing the user to connect any display to the unit for displaying data already in the vehicle. This feature is very handy if the user needs to take actions during the measurement process.
Custom applications
TKE can help to integrate telematics successfully into customers’ systems and provide solutions according to requests.
Images
Technical information
| CPU | ARM Cortex-A9 |
| CPU Frequency | Dual Core, 1 GHz |
| RAM | 512 MB DDR2 (32 bit) |
| Flash | 1 GB NAND (8 bit) |
| Size | 175x167x32 mm |
| Weight | 830 g |
| IP | IP 30 |
| Temperature Rating | -40 – +70 °C |
| Connectors | 14 pin JAE IL AG-5 18 pin JAE IL AG-5 22 pin JAE IL AG-5 |
| Audio | 14 pin JAE IL AG-5 |
| USB Connectors | 2 x USB Type B (High Retention) |
| Antenna, GPS | FAKRA Code C (Blue) |
| Antenna, LTE/GPRS | FAKRA Code D (Bordeaux) |
| Antenna, WiFi | FAKRA Code I (Beige) |
| SIM-card connector | Internal |
| Internal watchdog | Yes |
| Boot loader | uBoot |
| OS | Linux 3.1.10 |
| Power Supply | 8 – 36 V |
| GSM/GPRS/Edge (Fallback) | 900/1800MHz |
| LTE | 800 (Bd20) / 900 (Bd8) / 1800 (Bd3) / 2100 (Bd1) / 2600MHz (Bd7) |
| WiFi | 802.11 b/g/n |
| GNSS-receiver | GPS+GLONASS |
| Ext. startsignal | Yes |
| Int. startswitch | Yes |
| Analogue Input | 3 x 0-32 V, 1 x 4-20 mA |
| Digital Input | 6 |
| Digital Output | 5 |
| Pulse Counter | 1 |
| Accelerometer | Yes |
| Ethernet | 2 x 10/100 Mbit/s |
| CAN | 3 x CAN 2.0 B |
| USB Host | 1 x 2.0 Hi-Speed |
| RS-232 | 2 |
| RS-485 | 1 |
| J1708 | 1 |
| 5V Out (500mA max) | 1 |
| CPU Audio | Yes |
| Modem Audio | Yes |
| Graphics Port | DVI-I (1080p) |
| 5V Out (500mA max) | 1 |
| CPU Audio | Yes |
| Super Capacitor | Yes |
| LED | 4 x biLED, 1 x LED |
| Current Consumption | 200 mA – 800 mA @ 24 V |
| Current consumption, sleep (typical) | 24 mA @ 24 V |
