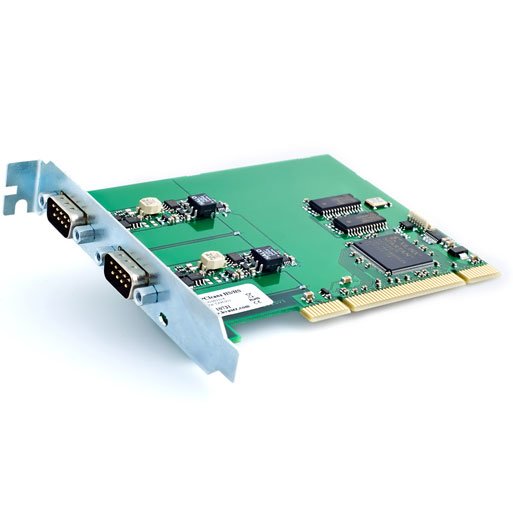

Kvaser PCIcanx HS/HS is dual channel, high speed CAN interface
Kvaser PCIcanx HS/HS can be used in both regular PCI and PCI-X slots. Galvanically isolated CAN bus drivers protect the hardware, whilst the on board micro controller ensures high throughput. The onboard CAN controller is I/O mapped for quick reaction times.
Features
-
- Quick and easy plug-and-play installation
-
- High-speed ISO 11898 compliant driver circuits
-
- Compliant with PCI 2.3
-
- The board fits in 3.3V PCI-X, and 3.3V and 5V PCI busses
-
- Compatible with our PCIcan boards
-
- I/O mapped for quick reaction times
-
- SJA1000 CAN Controllers from Philips, with 64-byte receive FIFO
-
- Supports CAN 2.0 A and 2.0 B (active)
-
- Pin assignment according to CiA-DS102
-
- 16 MHz CAN oscillator frequency
-
- Galvanic isolation between the CAN-controller and the CAN-driver
-
- Interfaces the CAN bus with DSUB CAN connectors
-
- Wide temperature range, -40°C – +85°C
Notify: Not for New Design – March 2022
