Product Code: 73-30130-01267-7

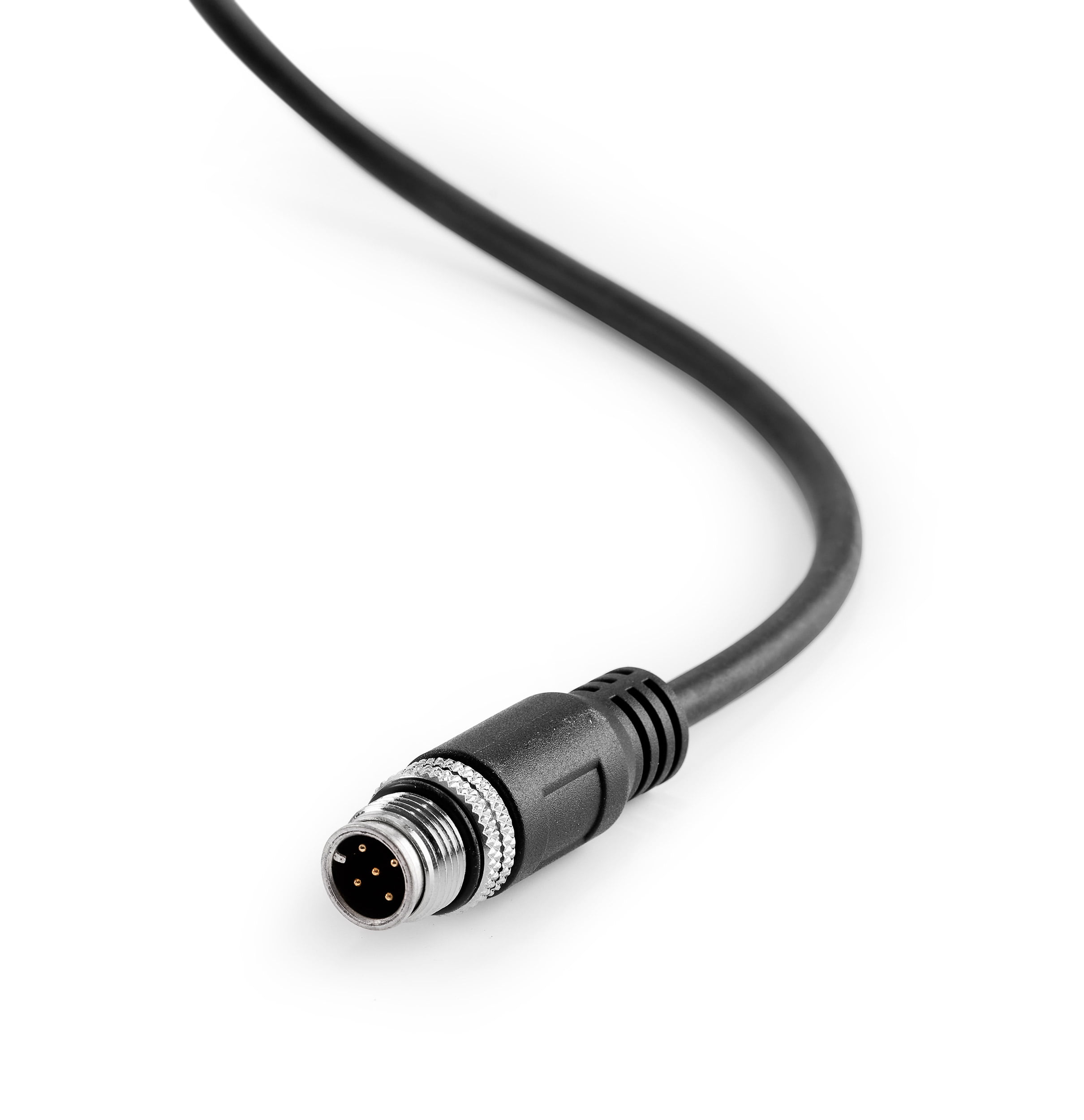

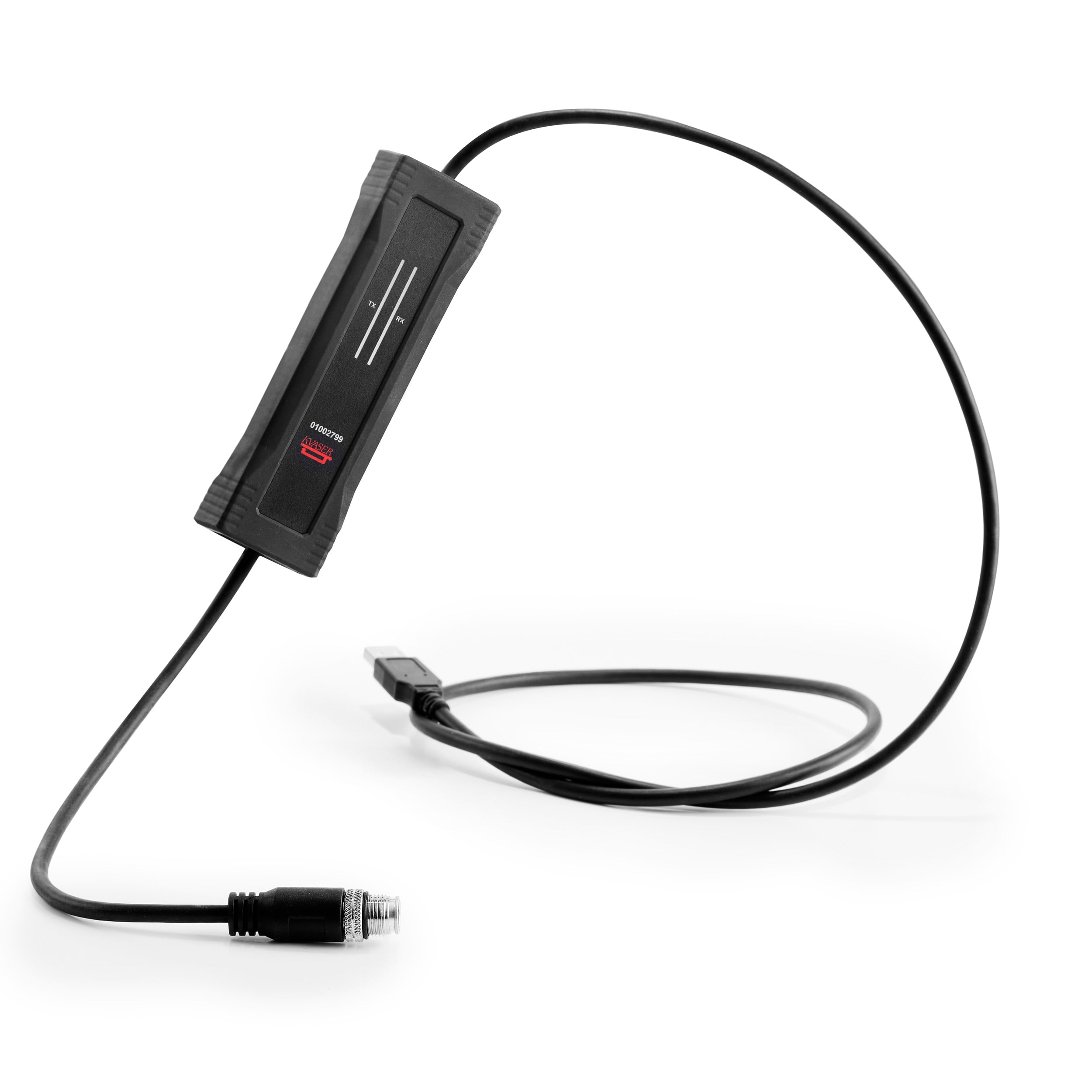

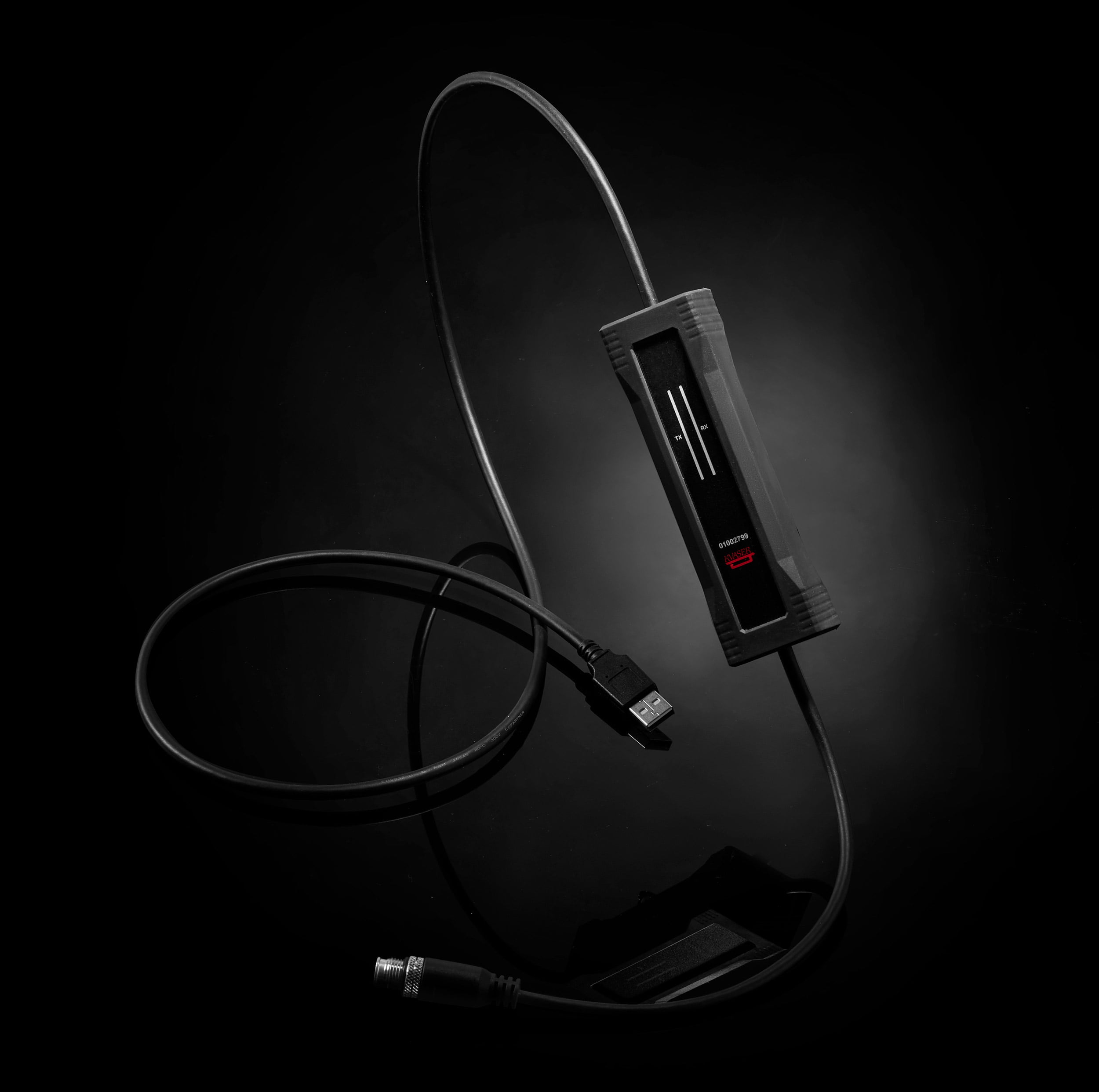

Kvaser U100-X2 USB CAN interface connects to CAN via a 5-pole M12 connector.
Kvaser U100-X2 is a small, yet powerful, CAN to USB interface. It provides real-time transmission and reception of standard and extended CAN messages on the bus with a high timestamp precision. Kvaser U100-X2 is compatible with applications that use Kvaser’s CANlib.
Kvaser U100-X2 is made to operate in tough environments, with enhanced protection of its own electrical circuits, a vibration, shock and drop-proof housing and high-quality cabling that squarely addresses the needs of the evolving automotive development market.
The U100 has an all-new, intuitive LED interface. Two high-visibility LED bars give real time feedback on CAN traffic status, showing busload and error codes. The U100 also features a robust connector with inverted strain release that handles more force than previous models when pulled or bent.
- USB CAN interface.
- Powered through the USB connector.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Lightweight robust housing made of glass fibre reinforced polyamide overmolded with TPE.
- Intuitive LED UI.
- Reinforced galvanic isolation, design validated with 5000 VAC rms applied for 60 s.
- Industrial grade temperature range, −40 ◦C to +85 ◦C.
- 20 000 msg/s, each timestamped with a resolution of 100 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- IP67 rated housing.
Product Code: 73-30130-01267-7 Categories: Interfaces, Kvaser Tags: CAN FD, Kvaser, Rugged, USB-CAN Interface
