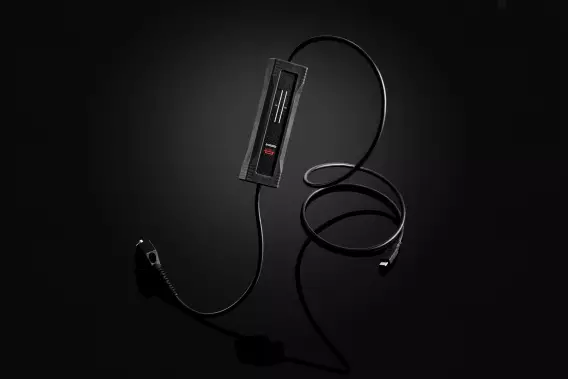

Kvaser U100-C

Product Specification

  • CAN Bit Rate 10 kbit/s to 1 Mbit/s
  • CAN FD Yes
  • CAN FD Bit Rate Up to 8 Mbit/s
  • CAN Channels 1
  • CAN Transceivers ADM3055E
  • Casing Material PA/TPE
  • Connector DSUB 9
  • Current Consumption Typical 250 mA
  • Dimensions 38 x 128 x 26 mm
  • Galvanic Isolation Yes, reinforced. Validated with 5000 VAC rms applied for 60 seconds.
  • IP Rating Housing IP67
  • Operating Temperature Range -40 °C to +85 °C
  • Timestamp Resolution 100 μs
  • Weight 167 g
  • Operating Systems Windows, Linux

Interested in Kvaser U100-C?

Contact info@tkesweden.se for more info.

Downloads

  • Data sheet

Kvaser U100-C

Product Code: 73-30130-01340-7

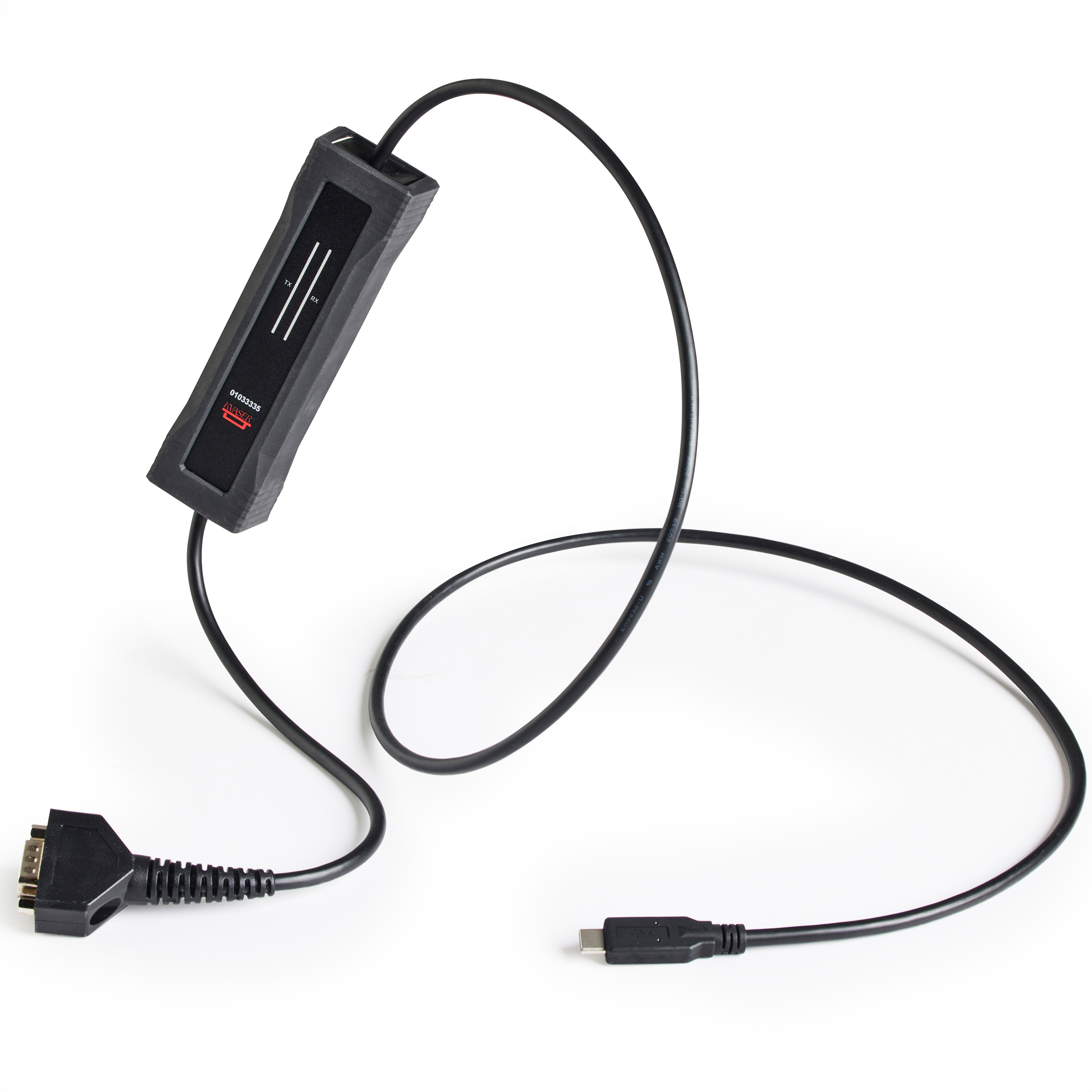

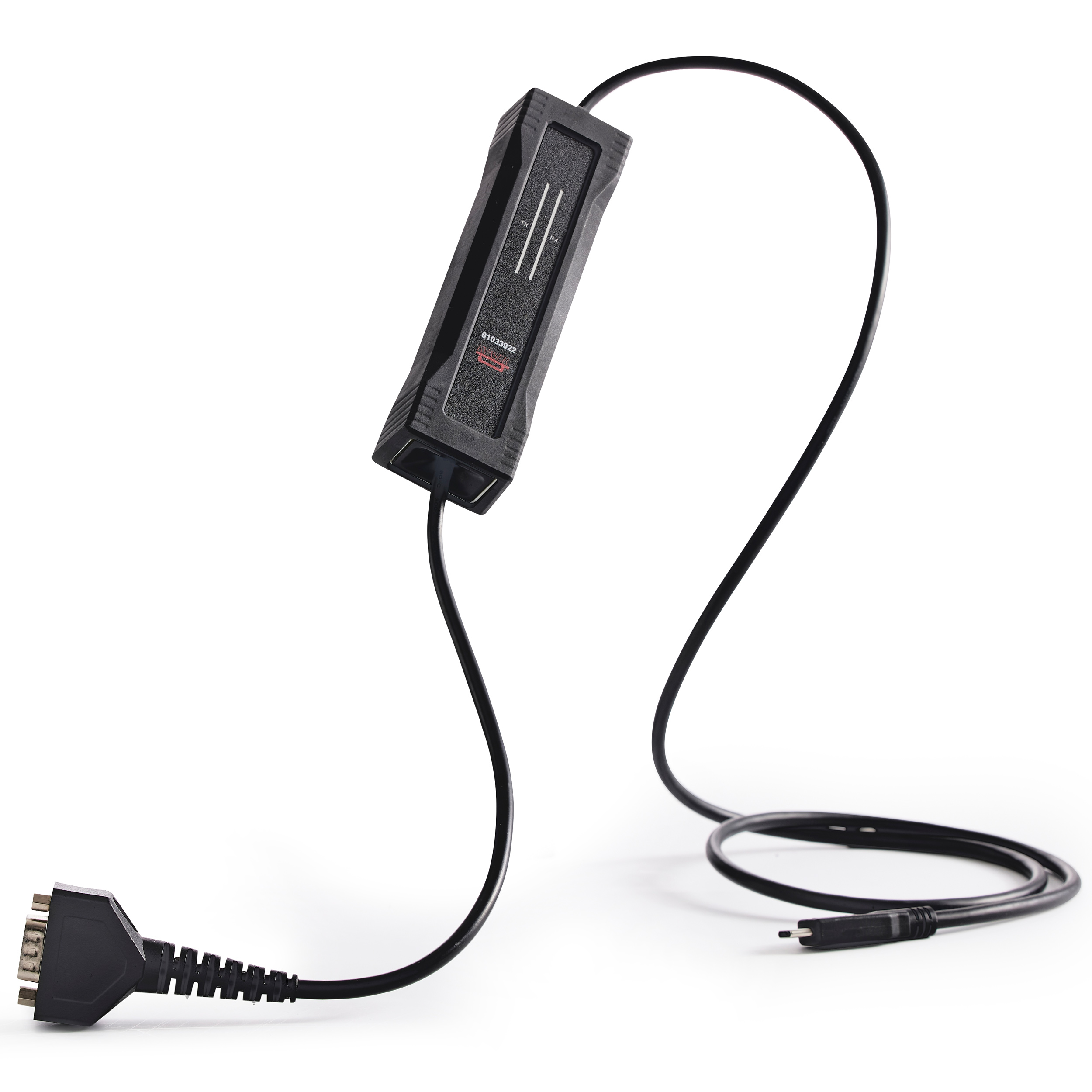

Kvaser U100-C, connection to the latest laptops and PC’s that supports USB-C only

The latest laptops and PCs come with USB-C slots only, so the Kvaser U100-C (01340-7) has been added to Kvaser’s U100 range of robust, single-channel CAN/CAN FD to USB interfaces. This interface is based on the standard Kvaser U100 with DB-9 connector, but replaces the standard USB type “A” connector with the smaller USB-C format. As with other devices in the range, this is powered via the USB bus.

Enhanced electrical protection

Robust, galvanically-reinforced (Tested according EN 60335) and signal and power isolated, the Kvaser U100 range offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that establishes a new reference in CAN interface design.



Major Features

  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
  • 20 000 msg/s, timestamped with a resolution of 100 µs.
  • Industrial grade temperature range, −40 oC to +85 oC.

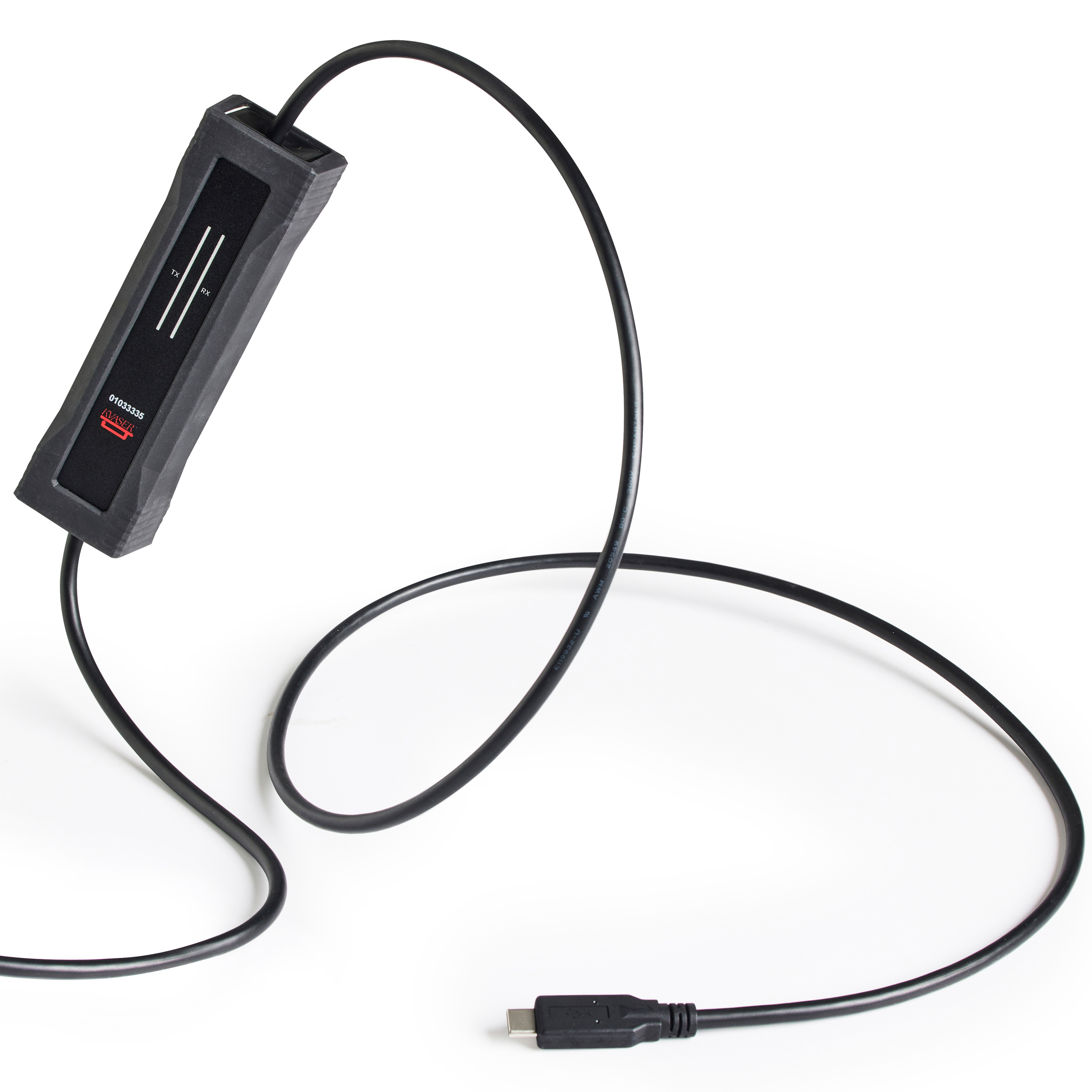

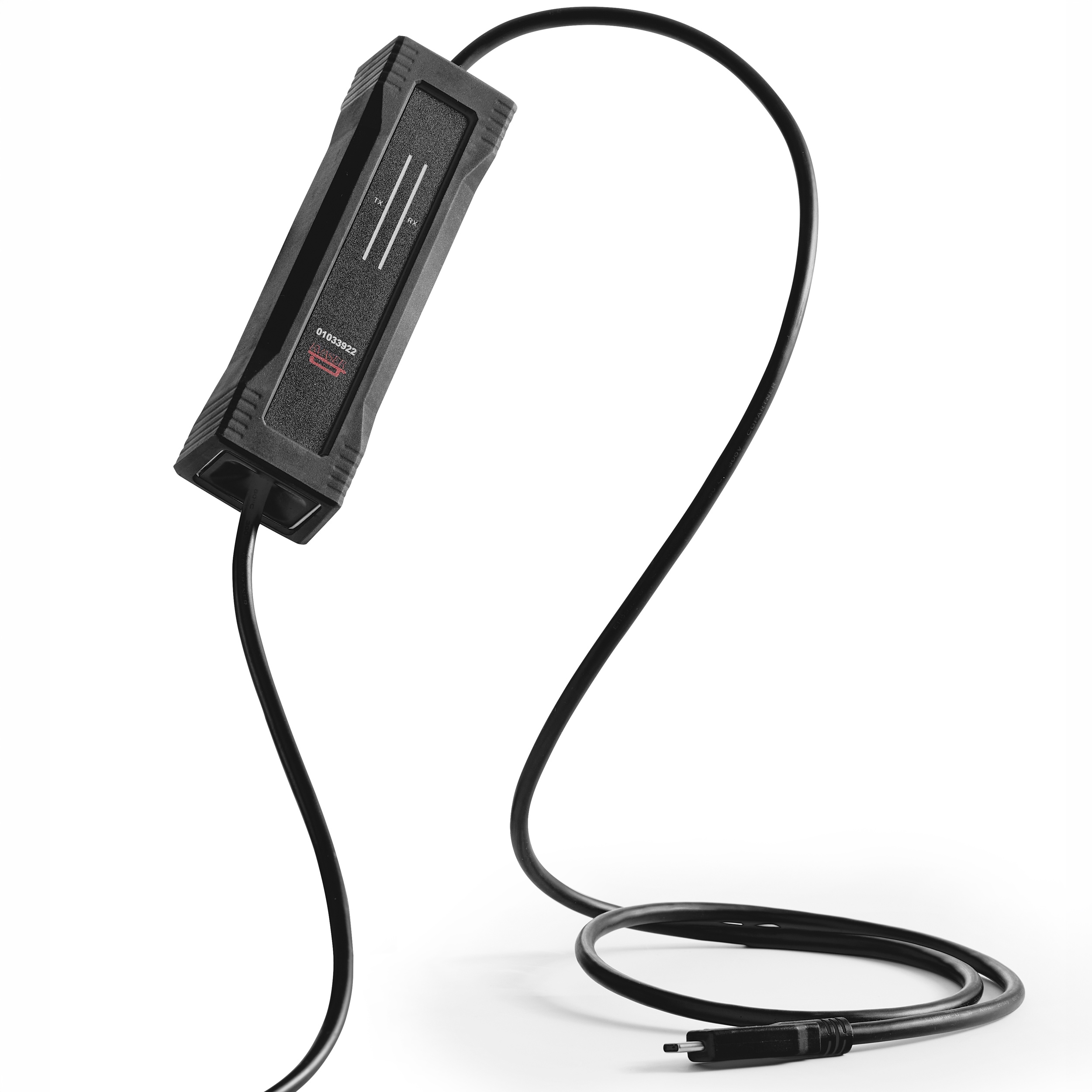

  • USB-C connector.
  • Powered through the Type-C USB connector (a Type-A USB connector is also available).
  • DB-9 connector (other connectors available).
  • Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
  • Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
  • IP67 rated.

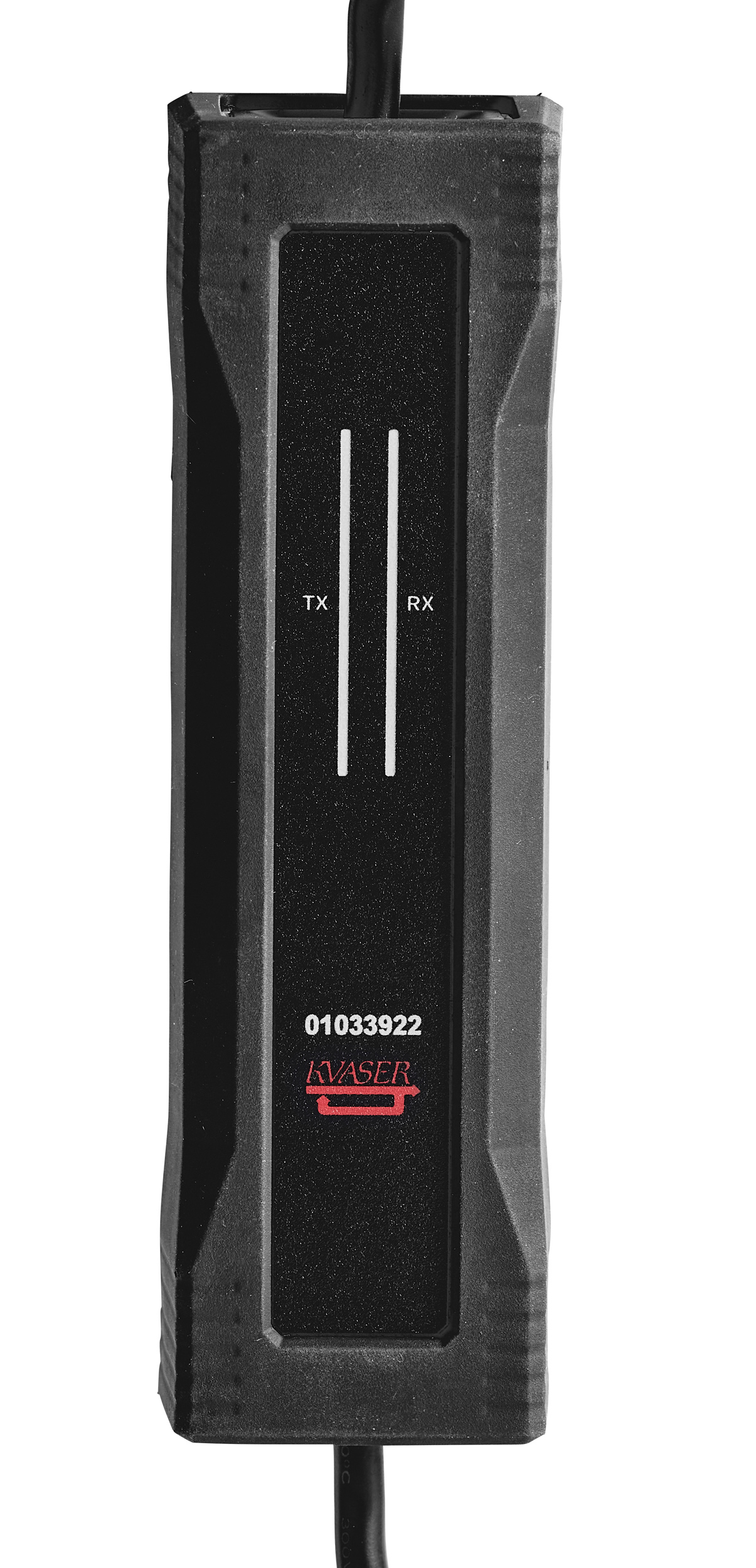

  • Intuitive LED UI.
  • Support for SocketCAN.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.



Other variants of the U100 range pair a standard USB type “A” connector with a 9-pin D-SUB, M12 or OBD-II CAN connector. A Precision version is also available – the Kvaser U100P – with a standard USB type “A” connector to a 9-pin D-SUB.

Product Code: 73-30130-01340-7 Categories: CAN-bus, Interfaces, Kvaser Tags: Kvaser, U100-C
