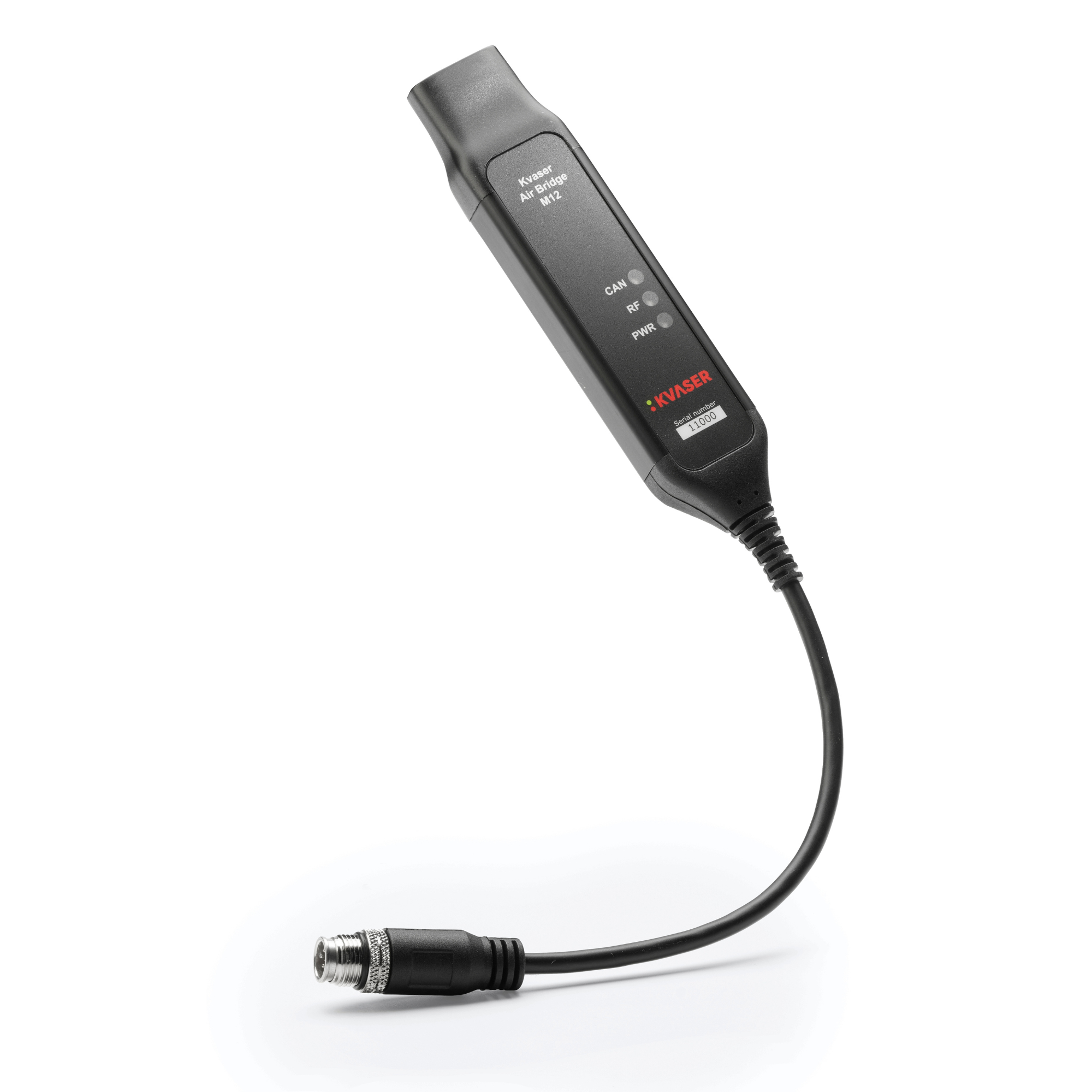

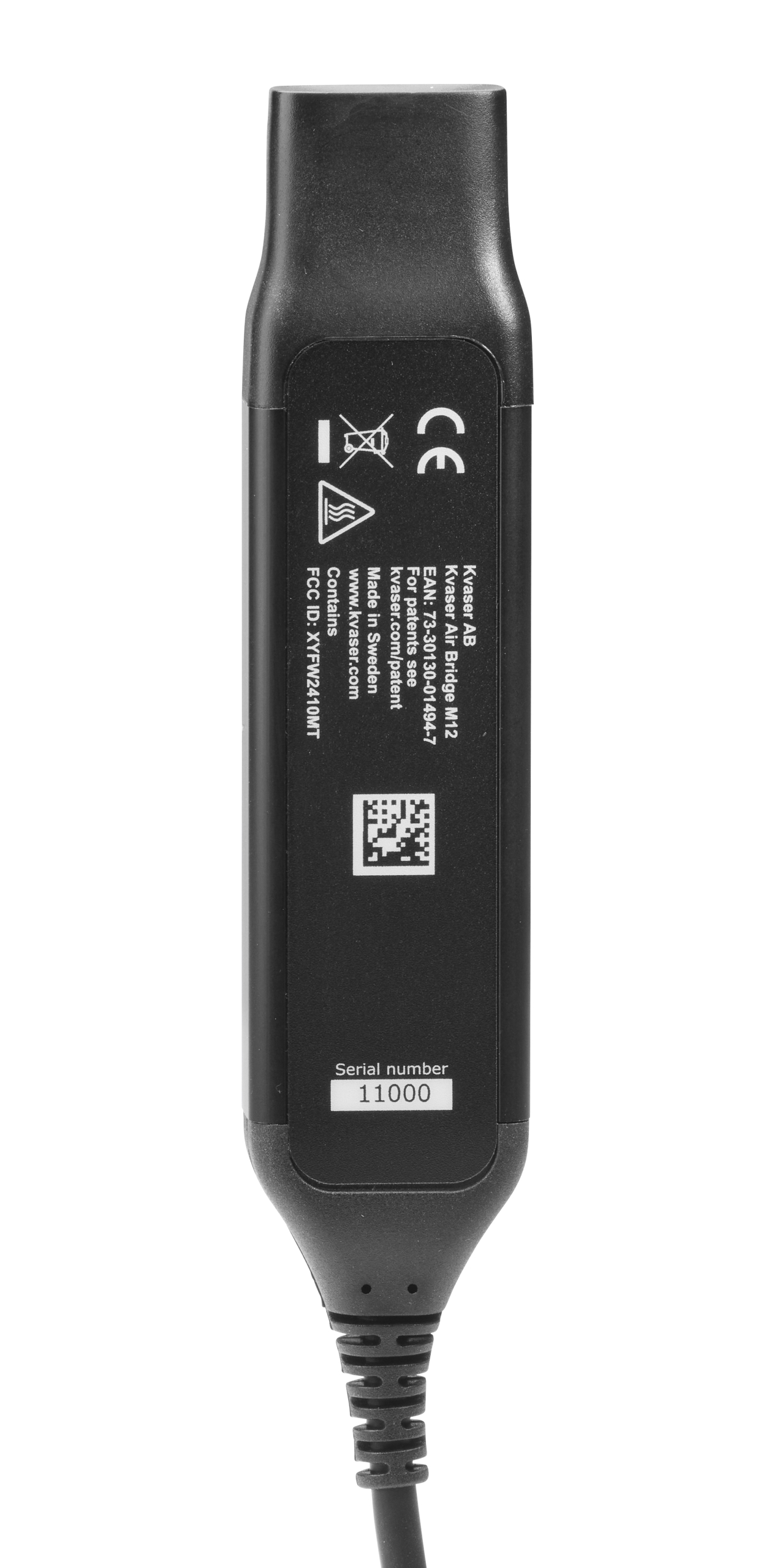

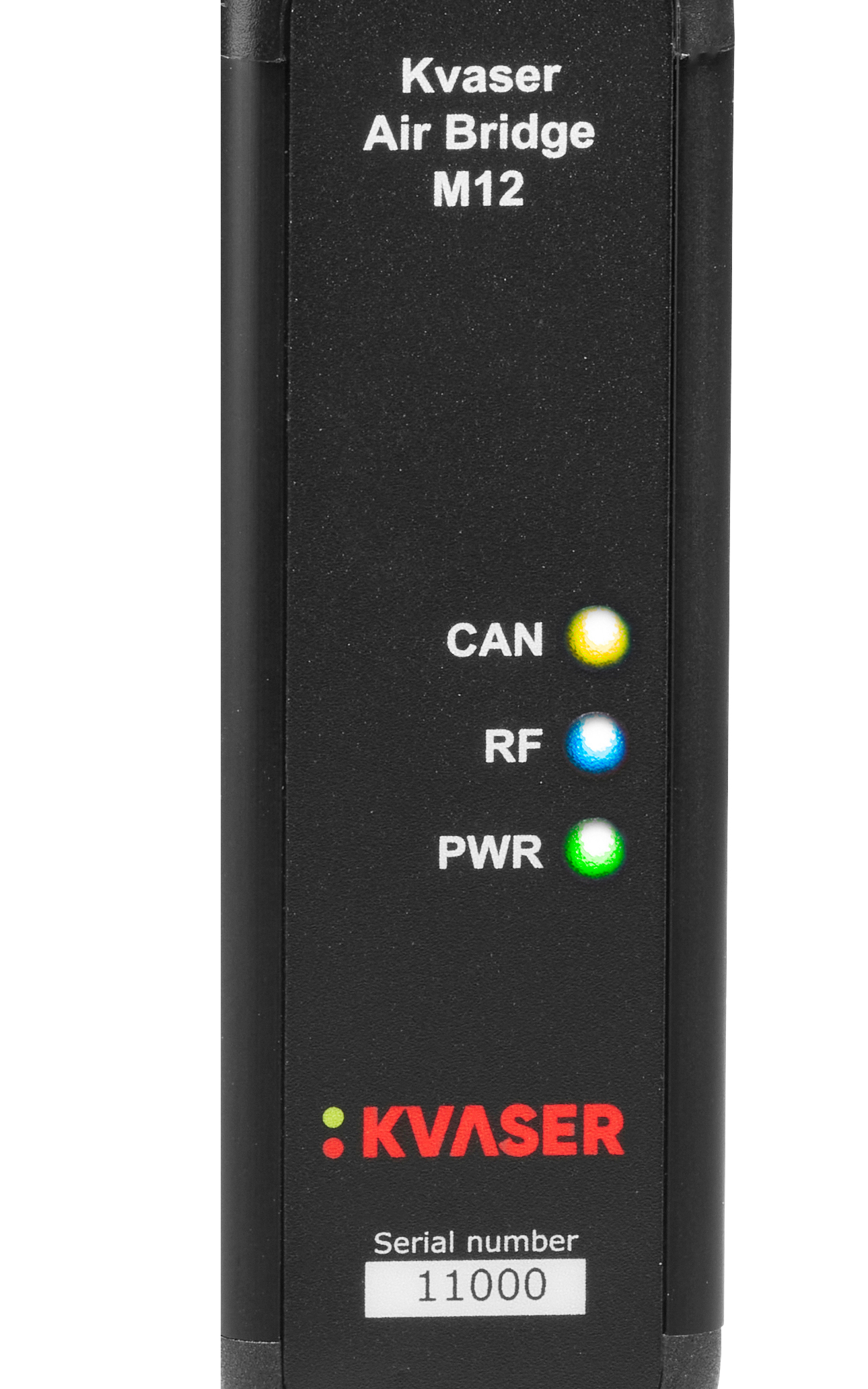

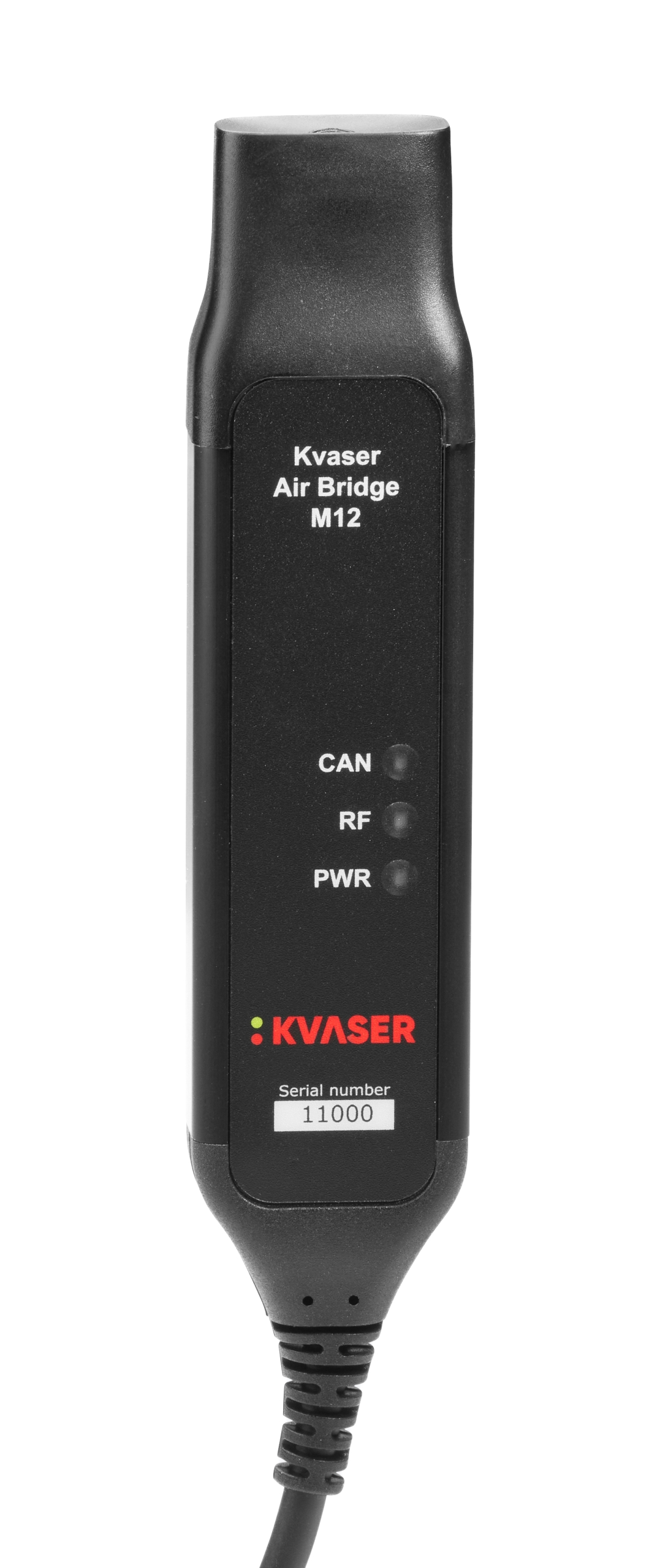

Kvaser Air Bridge M12, a compact, advanced wireless device that seamlessly bridges CAN networks, with easy setup, free pairing and flexible configuration
Kvaser Air Bridge M12 is a small, yet advanced, wireless CAN bridge device that can be used to form a CAN system bridge, when paired with any other Kvaser Air Bridge M12 device and to create connectivity between two or more CAN networks. This radio solution can be used to connect CAN based control systems and test equipment in scenarios and situations where it is desirable to replace cabling and related parts.
Kvaser Air Bridge M12 is designed for ease of use, while retaining a certain flexibility for the user by means of configuration including optimized CAN bus parameters and CAN message filtering. The pairing feature enables the user to choose between ’one to one’, and ’one to any’ constellations.
With uniquely low and predictable latency compared to other wireless technologies and a highly robust signal even at long range, the Kvaser Air Bridge M12 is well-suited for control tasks in remote-control applications with systems that require rapid response. Ideal for engineers and system integrators who need a flexible and configurable wireless CAN solution for complex systems, where standard preconfigured bridges are not sufficient.
Overview
- Contains 1 device (one to any)
- Wireless CAN Bridge: Connects two or more CAN networks without cables
- Flexible Pairing: Supports one-to-one and one-to-many configurations
- Configurable Operation: Adjustable parameters for system-specific optimization
- Low Latency Communication: Stable and predictable data transmission
- High-Speed CAN Support: Up to 1 Mbit/s (ISO 11898-2 compliant)
- Protocol Compatibility: Supports CAN, CANopen, J1939, NMEA 2000, and DeviceNet
- Rugged Design: M12 connector with IP67 rating for industrial environment
Functionality
Kvaser Air Bridge M12 forms a wireless gateway between CAN networks, allowing systems to communicate as if they were physically connected. Devices can be paired dynamically, and roles (master/slave) can be configured depending on system requirements.
Configuration and commissioning are performed via CAN-based management or a dedicated utility tool, enabling control over parameters such as bit rate, transmit power, and pairing. This flexibility makes the device suitable for both simple and advanced network topologies.
Major Features
- Forms a wireless CAN bridge between two Kvaser Air Bridge devices
- Can be paired with any other Kvaser Air Bridge M12 device to form a point-to-point radio link
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Driver-free and only limited configuration required
- Provides configuration flexibility to support a wide variety of application requirements
- Pairing, configuration and link status via management protocol over the CAN bus
- Active discovery feature that detects available Kvaser Air Bridge M12 devices for pairing
- Proprietary wireless protocol for high robustness, very low latency and to enable link establishment and connection in an instant
- Internal antenna design with polarization diversity
- Automatic bit rate detection or user configured
- Bit rate conversion between CAN bus systems with different bit rates
- IP65-rated, dust- and water-resistant housing
- IP67-rated M12 connector for cabling with extra dust-and water-tightness, suitable for outdoor installation
- Extended operating temperature range
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet
Typical Applications
- Industrial automation and control systems
- Communication between distributed or moving equipment
- Test benches and measurement systems
- Heavy-duty and off-highway vehicles
- Situations where cabling is impractical or costly
