ReXgen 1
Product Code: INF2109.01

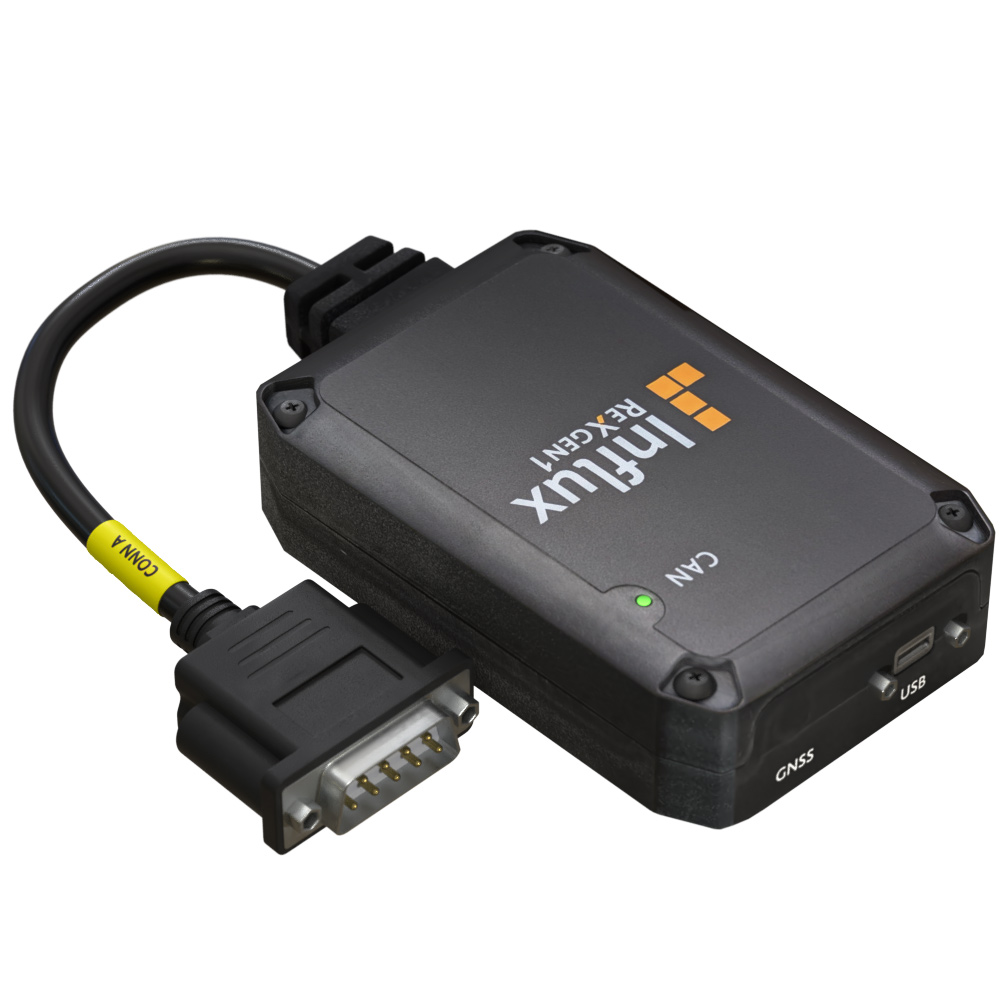

ReXgen 1 Compact, accurate and cost-effective Single-CAN data logging hardware
The ReXgen 1 is a compact, accurate, cost-effective, single-CAN, data logger. The ReXgen series is delivered with ReXdesk, the free, drag ‘n’ drop configuration and analysis software.
One interface:
- Connect the ReXgen One to a computer and configure the device to work with your vehicle; it supports CAN, J1939 and error logging
- Pass-Thru (J2534) connect using USB 2.0 interface
- Efficiently records CAN bus data and advanced message filtering on configurable channels (J1939 and CAN)
- Supports advanced triggering options and advanced CAN bit timing configuration.
- The most compact, cost-effective, plug-and-play device which operates as a CAN bus interface for real-time USB streaming and has 8GB eMMc storage
Easy configuration:
Connect the ReXgen One to your computer to configure the device to work with your vehicle using the free configuration tool ReXdesk, or configure it using your custom applications with our open API.
Construction & Design:
Robust, stainless steel mounting screws withstand the toughest conditions. Secure the ReXgen and get ready to log /view live data.
Robust internal storage:
Inbuilt eMMCstorage that can be processed by custom-made algorithms, providing important alerts and statistics.
Applications
Rare event capture
- Record important events based on real-time, such as :
- CAN ID: Log data from the specific/ defined ids. Create conditions based on CAN ids.
- J1939 DM1 Counter: Count the faults in the j1939 DM1 messages.
- LEDs indicate when the trigger is active.
- External digital switches.
- Pre-trigger timer.
Sleep Mode to Save Vehicle Battery
The ReXgen series includes
- Power Down Mode: Deep Sleep Mode when no activity detected.
- Wake-On-CAN: Wake up instantly with CAN activity.
- Wake-On-Alarm: Wake up the logger when specified
- Wake-On-Digital-inputs: Wake up on ignition, KL15, external switch etc.
- Wake-On-Movement: Wake up on physical movement, e.g. impact or detecting movement in the vehicle.
Pro-Spec data loggers: No messages missed
- Zero data loss: Capture rare, single and multiple events.
- Critical data: Essential for project management.
- Quick change of state: Ready for data capture.
Supports Interface J2534 (pass-thru)
- The ReXgen Series: Active data logging with an interface that supports pass-thru. Analyse your vehicle’s CAN data directly on a laptop with the ability to access remote data collection.
ReXdesk Configuration Software
ReXdesk is Influx technologies freely distributed configuration software and general-purpose software tool to work with ReXgen. Designed to make CAN bus data logging easy.
ReXdesk supports multiple DBC files enabling configurations that include filters and log on parameter values.
This software is designed to support ReXgen through its entire lifetime, with tools for:
- First-time ReXgen set-up
- Preparation and configuration for data logging
- Data retrieval and conversion, with live data viewing
Key Features
- Supports industry-standard DBC files
- Supports CAN and CAN FD (both ISO and non-ISO)
- Supports standard and extended messages
- Triggers, on parameter value or CAN Identifier
- J1939 Identifier formatter and DM1
- CAN error logging and Live CAN trace viewer
- Fast data retrieval and export to other format files
- Software Operating System: Windows
- Modern, easy-to-use display with drag & drop interface
Download ReXdesk Configuration Software
